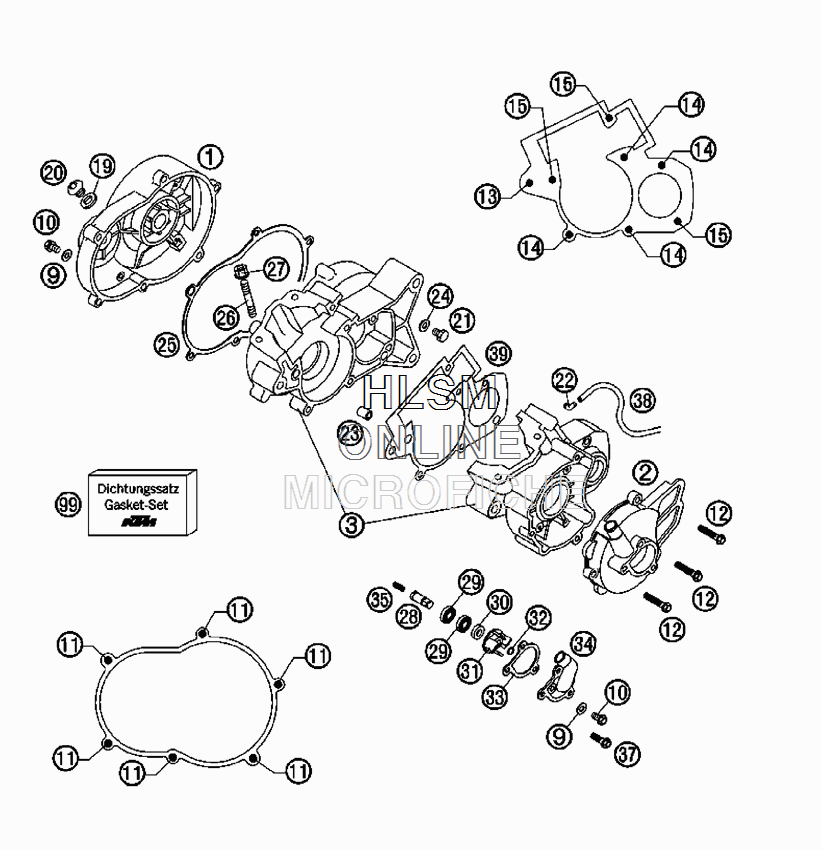

ENGINE CASE для Ktm 50 SX Pro Jr - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    45130001100 CLUTCH COVER
    CLUTCH COVER
  • 2
    45130002000 IGNITION COVER 50CCM
    IGNITION COVER 50CCM
  • 3
    45130000044 ENGINGE CASE 50CCM1
    ENGINGE CASE 50CCM1
  • 9
    0603061001 CU-SEAL RING DIN7603-6X10X1
    CU-SEAL RING DIN7603-6X10X1
  • 10
    0015060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
  • 11
    0015060253 HH COLLAR SCREW M 6X25 WS=8
    HH COLLAR SCREW M 6X25 WS=8
  • 12
    0015060303 HH COLLAR SCREW M 6X30 WS=8
    HH COLLAR SCREW M 6X30 WS=8
  • 13
    0015080603 HH COLLAR SCREW M 8X60 WS=10
    HH COLLAR SCREW M 8X60 WS=10
  • 14
    0912060353 AH SCREW DIN0912-M 6X35
    AH SCREW DIN0912-M 6X35
  • 15
    0912060404 AH SCREW DIN0912-M 6X40 A2
    AH SCREW DIN0912-M 6X40 A2
  • 19
    45130019000 GASKET FOR OIL PLUG
    GASKET FOR OIL PLUG
  • 20
    45130020000 OIL PLUG 50 LC
    OIL PLUG 50 LC
  • 21
    46030021100 OIL DRAIN PLUG M10 WS=13
    OIL DRAIN PLUG M10 WS=13
  • 22
    45130022000 ANGLE PIECE 50CCM
    ANGLE PIECE 50CCM
  • 23
    45130023000 DOWEL 7X9X10
    DOWEL 7X9X10
  • 24
    0603100141 COPPER GASKET DIN7603-10X14X1
    COPPER GASKET DIN7603-10X14X1
  • 25
    45130025000 GASKET FOR CLUTCH COVER
    GASKET FOR CLUTCH COVER
  • 26
    46030043000 STUD M8X41
    STUD M8X41
  • 27
    46030045000 COLLAR NUT M8 WS=10
    COLLAR NUT M8 WS=10
  • 28
    45135054100 WATER PUMP SHAFT
    WATER PUMP SHAFT
  • 29
    46035058000 WA.PU.BEAR. 10X19X5 DOUBLE LIP
    WA.PU.BEAR. 10X19X5 DOUBLE LIP
  • 30
    46035056100 SHAFT SEAL RING 10X18X4
    SHAFT SEAL RING 10X18X4
  • 31
    46035055100 WATER PUMP WHEEL 60/65
    WATER PUMP WHEEL 60/65
  • 32
    0471090010 CIRCLIP DIN0471- 9X1
    CIRCLIP DIN0471- 9X1
  • 33
    45135053000 GASKET WATER PUMP COVER
    GASKET WATER PUMP COVER
  • 34
    45135052000 WATER PUMP COVER
    WATER PUMP COVER
  • 35
    45135058000 SPRING FOR WATER PUMP SHAF
    SPRING FOR WATER PUMP SHAF
  • 37
    0015060163 HH COLLAR SCREW M 6X16 WS=8
    HH COLLAR SCREW M 6X16 WS=8
  • 38
    52031137001 PVC-HOSE 3X5MM
    PVC-HOSE 3X5MM
  • 39
    45130039000 ENGINE CASE GASKET
    ENGINE CASE GASKET
  • 99
    45130099000 GASKET SET CPL.
    GASKET SET CPL.
