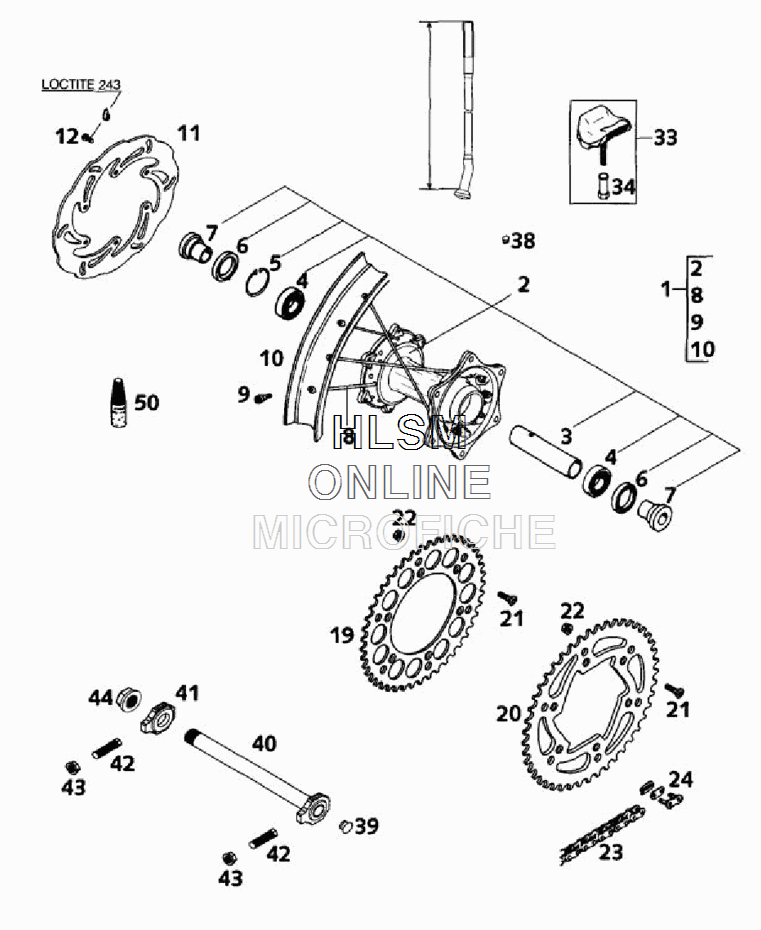

REAR WHEEL для Ktm 400 MXC Racing - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    50310001144 R.WHEEL CPL.2.15X19EXCEL
    R.WHEEL CPL.2.15X19EXCEL
  • 1
    50310001244 REARWHEEL CPL.2.15X18DID
    REARWHEEL CPL.2.15X18DID
  • 2
    50310010044 REARWHEEL HUB CPL.
    REARWHEEL HUB CPL.
  • 3
    56510011000 BEARING SPACER TUBE 121,5MM
    BEARING SPACER TUBE 121,5MM
  • 4
    0625060058 GROOVED BALL BEAR. 6005 2RS C3
    GROOVED BALL BEAR. 6005 2RS C3
  • 5
    0472047175 CIRCLIP DIN0472-47X1,75
    CIRCLIP DIN0472-47X1,75
  • 6
    0760324771 SHAFT SEAL RING 32X47X7 BSL
    SHAFT SEAL RING 32X47X7 BSL
  • 7
    54610016000 BUSHING FOR HUB
    BUSHING FOR HUB
  • 8
    50310071207 SPOKE M5X207-10G 19 DDE
    SPOKE M5X207-10G 19 DDE
  • 8
    50310071197 SPOKE M5X197-10G 18 DDE
    SPOKE M5X197-10G 18 DDE
  • 9
    58309072000 STEEL NIPPLE M5 CHROME PLATED
    STEEL NIPPLE M5 CHROME PLATED
  • 10
    54610070100 REAR RIM 2,15X19 EXCEL
    REAR RIM 2,15X19 EXCEL
  • 10
    54610070300 REAR RIM 2,15X18 DID
    REAR RIM 2,15X18 DID
  • 11
    50310060000 BRAKE DISC REAR D=220MM
    BRAKE DISC REAR D=220MM
  • 12
    59009062013 SPECIAL SCREW M6X13 WS8 10.9
    SPECIAL SCREW M6X13 WS8 10.9
  • 19
    58310051038 REAR SPROCKET 38-T
    REAR SPROCKET 38-T
  • 19
    58310151040 REAR SPROCKET 40-T
    REAR SPROCKET 40-T
  • 19
    58310051042 REAR SPROCKET 42-T
    REAR SPROCKET 42-T
  • 19
    58310151045 REAR SPROCKET 45-T
    REAR SPROCKET 45-T
  • 20
    58310151048 REAR SPROCKET 48-T
    REAR SPROCKET 48-T
  • 20
    58310151050 REAR SPROCKET 50-T
    REAR SPROCKET 50-T
  • 20
    58310151052 REAR SPROCKET 52-T
    REAR SPROCKET 52-T
  • 21
    54510052100 SPROCKET SCREW-AH M8X26 10.9
    SPROCKET SCREW-AH M8X26 10.9
  • 22
    54310086200 SELF LOCKING NUT M8 10.9
    SELF LOCKING NUT M8 10.9
  • 23
    50010065100 O-RING CHAIN 5/8X1/4 DID (118 ROLLS)
    O-RING CHAIN 5/8X1/4 DID (118 ROLLS)
  • 23
    50010065101 0-R.CHAIN 5/8X1/4/M W.LINK
    0-R.CHAIN 5/8X1/4/M W.LINK
  • 24
    50010066100 MASTER LINK 5/8X1/4 O-RING
    MASTER LINK 5/8X1/4 O-RING
  • 33
    54010100100 RIM LOCK VM3 (2.15)
    RIM LOCK VM3 (2.15)
  • 34
    50310090050 NUT WHEEL HOLDER
    NUT WHEEL HOLDER
  • 38
    55003135000 PLUG FOR RIM
    PLUG FOR RIM
  • 39
    50210086000 COVERING CAP SFL16
    COVERING CAP SFL16
  • 40
    50310085044 AXLE REAR CPL. 265MM
    AXLE REAR CPL. 265MM
  • 41
    50310084000 CHAIN TENSIONER R/S
    CHAIN TENSIONER R/S
  • 42
    50304040000 SPECIAL SCREW M10X1,25 WS=10
    SPECIAL SCREW M10X1,25 WS=10
  • 43
    58414030000 HH COLLAR NUT M10X1,25 WS=13
    HH COLLAR NUT M10X1,25 WS=13
  • 44
    50310099000 HEXAGON NUT M20X1,5
    HEXAGON NUT M20X1,5
  • 50
    6899785 LOCTITE 243 BLUE 6CCM
    LOCTITE 243 BLUE 6CCM
