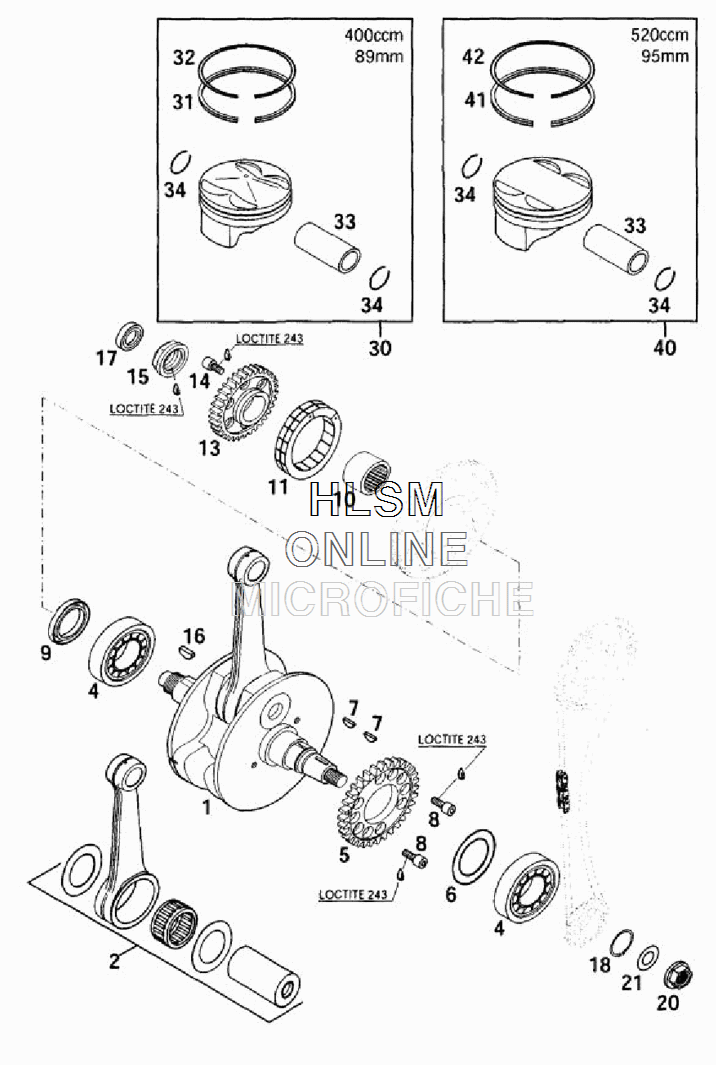

CRANKSHAFT W/ PISTON для Ktm 400 MXC Racing - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    59530018200 CRANKSHAFT CPL. (STROKE 64MM, WITHOUT WASHER)
    CRANKSHAFT CPL. (STROKE 64MM, WITHOUT WASHER)
  • 2
    59530015044 CON.ROD REP. SET (WITH WASHER)
    CON.ROD REP. SET (WITH WASHER)
  • 4
    50330082000 CYL,ROLLER BEAR.NJ206 ET2XCS45
    CYL,ROLLER BEAR.NJ206 ET2XCS45
  • 5
    59030055000 DRIVE GEAR 32-T FBALANC.SHAFT
    DRIVE GEAR 32-T FBALANC.SHAFT
  • 6
    56030081000 THRUST WASHER 30X42X0,1
    THRUST WASHER 30X42X0,1
  • 6
    56030081100 THRUST WASHER 30X42X0,15
    THRUST WASHER 30X42X0,15
  • 6
    56030081200 THRUST WASHER 30X42X0,3
    THRUST WASHER 30X42X0,3
  • 7
    0888030050 WOODRUFF KEY DIN6888-3X5X13
    WOODRUFF KEY DIN6888-3X5X13
  • 8
    0984060162 AH SCREW DIN7984-M 6X16
    AH SCREW DIN7984-M 6X16
  • 9
    0760304771 SHAFT SEAL RING 30X47X7 VITON
    SHAFT SEAL RING 30X47X7 VITON
  • 10
    0618301617 NEEDLE BEARING HK 3016 8
    NEEDLE BEARING HK 3016 8
  • 11
    58440026000 FREE-WHEEL FWD 332008 BLS
    FREE-WHEEL FWD 332008 BLS
  • 13
    59032000033 PRIMARY GEAR 33-T
    PRIMARY GEAR 33-T
  • 14
    0912060106 AH SCREW DIN0912-M 6X10 10.9
    AH SCREW DIN0912-M 6X10 10.9
  • 15
    59030029100 HH NUR M20X1,5 WS=27 LEFT
    HH NUR M20X1,5 WS=27 LEFT
  • 16
    6946005 WOODRUFF KEY 5X6,5 HARDED
    WOODRUFF KEY 5X6,5 HARDED
  • 17
    0760142460 SHAFT SEAL RING 14X24X6 B
    SHAFT SEAL RING 14X24X6 B
  • 18
    0471250120 CIRCLIP DIN0471-25X1,2
    CIRCLIP DIN0471-25X1,2
  • 20
    49030021000 COLLAR NUT M12X1 R/S
    COLLAR NUT M12X1 R/S
  • 21
    0137120000 SPRING WASHER DIN0137-B12
    SPRING WASHER DIN0137-B12
  • 33
    59030033000 PISTON PIN BOLT 20X15,8/12X50
    PISTON PIN BOLT 20X15,8/12X50
  • 34
    59030074000 CIRCLIP C20X1,5
    CIRCLIP C20X1,5
  • 40
    59030007000I PISTON 195MM CPL. FORGED
    PISTON 195MM CPL. FORGED
  • 40
    59030007000II PISTON II 95MM CPL.FORGED
    PISTON II 95MM CPL.FORGED
  • 41
    58030631000 OIL SCRAPER RING 95MM
    OIL SCRAPER RING 95MM
  • 42
    59030032000 RECTANGULAR RING 95/87,2X1,25
    RECTANGULAR RING 95/87,2X1,25
