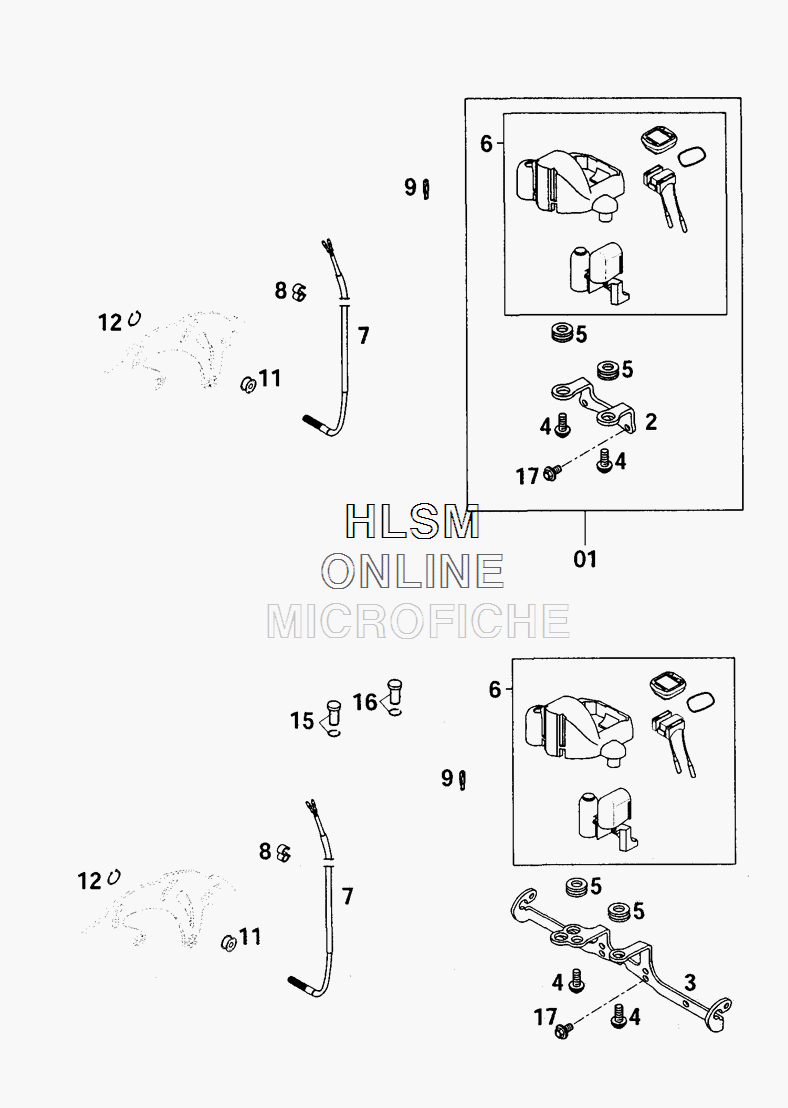

SPEEDOMETER SIGMA SPORT для Ktm 380 MXC - 2001 года выпуска`
-
№АртикулНазвание
-
0150314065244 SPEEDOMETER CASE CPL.SPEEDOMETER CASE CPL.
-
250314060000 SPEEDOMET.BRACKET BLACKSPEEDOMET.BRACKET BLACK
-
350314061100 SPEEDOMET.BRACKET BLACKSPEEDOMET.BRACKET BLACK
-
40016050121 PLASTIC SCREW KA50X12 PT1 411 (BLACK)PLASTIC SCREW KA50X12 PT1 411 (BLACK)
-
531008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
650314069044 SPEEDOM.SIGMASPORT 500 CPLSPEEDOM.SIGMASPORT 500 CPL
-
758314069151 CABLE FOR SIGMACABLE FOR SIGMA
-
855011022100 CLAMP 6/8MM BLACKCLAMP 6/8MM BLACK
-
949111425000 BULB 12V 1,2W (W2X4,6D)BULB 12V 1,2W (W2X4,6D)
-
1150314069050 MAGNET FOR DIGITALSPEEDOMETERMAGNET FOR DIGITALSPEEDOMETER
-
120471009104 CIRCLIP DIN0471- 9X1 INOXCIRCLIP DIN0471- 9X1 INOX
-
1558011021300 H.BEAM INDICATOR LIGHT BLUEH.BEAM INDICATOR LIGHT BLUE
-
1658011024300 FLASHER INDICAT.LIGHT GREENFLASHER INDICAT.LIGHT GREEN
-
170014060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
Все узлы модели:
- ACCESSORIES
- AIR FILTER BOX
- BRAKE CALIPER FRONT
- BRAKE CALIPER REAR
- CARBURETOR PWK 38 AG
- CLUTCH
- CLUTCH COVER
- COOLING SYSTEM
- CRANKSHAFT W/ PISTON
- CYLINDER
- DECAL
- ENGINE CASE
- EXHAUST PIPE
- FLASHER - REAR LIGHT
- FORK LEGS
- FRAME - SUB FRAME
- FRONT FORK
- FRONT WHEEL
- HAND BRAKE CYLINDER
- HANDLEBAR W/ CONTROLS
- HEAD LIGHT
- IGNITION SYSTEM (KOKUSAN)
- KICKSTARTER
- MASK W/ FENDERS
- REAR BRAKE CONTROL
- REAR WHEEL
- REED VALVE ASSY
- SHIFTING MECHANISM
- SHOCK ABSORBER
- SIDE STAND
- SILENCER
- SPECIAL TOOL
- SPEEDOMETER FACOMSA
- SPEEDOMETER ODOMETER
- • SPEEDOMETER SIGMA SPORT
- SWINGARM W/ CHAIN GUARD
- TANK - SEAT - COVER
- TRANSMISSION - COUNTERSHAFT
- TRANSMISSION - MAIN SHAFT
- TWIN VALVE CONTROL
