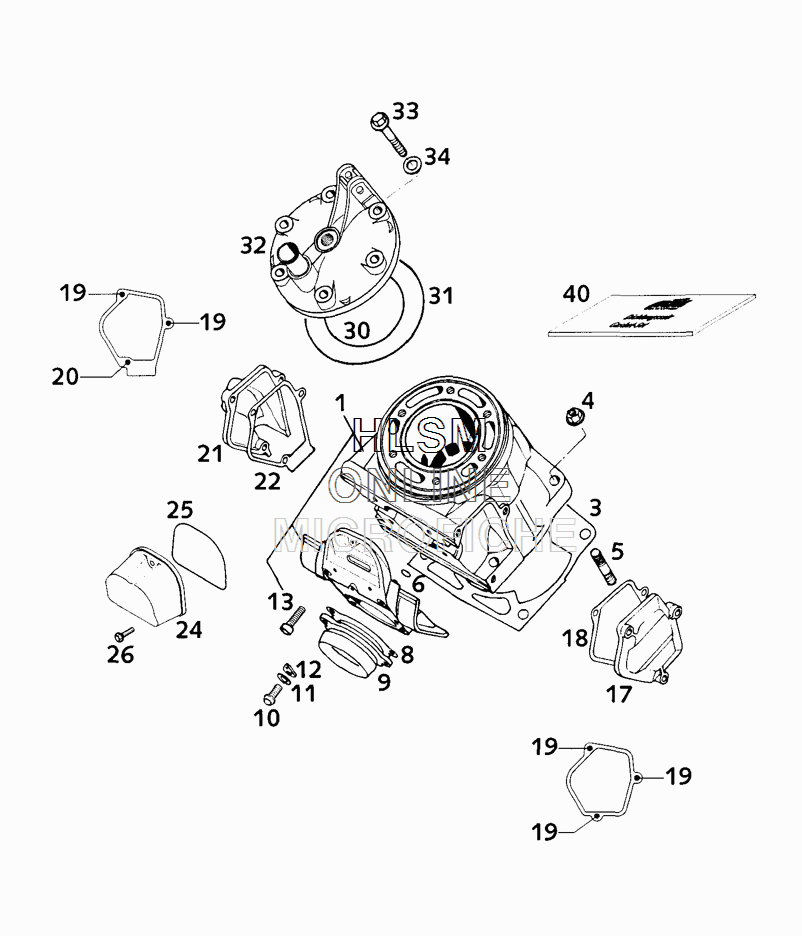

CYLINDER для Ktm 380 MXC - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    54730005244 CYLINDER CPL.W.FLANGE
    CYLINDER CPL.W.FLANGE
  • 3
    54630030102 CYLINDER BASE GASKET 0,20MM
    CYLINDER BASE GASKET 0,20MM
  • 3
    54630030104 CYLINDER BASE GASKET 0,40MM
    CYLINDER BASE GASKET 0,40MM
  • 3
    54630030105 CYLINDER BASE GASKET 0,50MM
    CYLINDER BASE GASKET 0,50MM
  • 3
    54630030107 CYLINDER BASE GASKET 0,75MM
    CYLINDER BASE GASKET 0,75MM
  • 4
    54630044000 COLLAR NUT M10 WS=13
    COLLAR NUT M10 WS=13
  • 5
    0835100403 STUD DIN0835-M10X40
    STUD DIN0835-M10X40
  • 6
    0770116241 O-RING 11,3 X2,4 SILICON
    O-RING 11,3 X2,4 SILICON
  • 8
    54630046000 EXHAUST FLANGE GASKET
    EXHAUST FLANGE GASKET
  • 9
    54605073000 EXHAUST FLANGE (380)
    EXHAUST FLANGE (380)
  • 10
    0015060163 HH COLLAR SCREW M 6X16 WS=8
    HH COLLAR SCREW M 6X16 WS=8
  • 11
    0137060000 SPRING WASHER DIN0137-B 6
    SPRING WASHER DIN0137-B 6
  • 12
    51005074000 RETAINING PLATE
    RETAINING PLATE
  • 13
    0912060303 AH SCREW DIN0912-M 6X30
    AH SCREW DIN0912-M 6X30
  • 17
    54637105000 CONTROL COVER L/S
    CONTROL COVER L/S
  • 18
    54637106000 GASKET FOR SIDE COVER
    GASKET FOR SIDE COVER
  • 19
    0912050123 AH SCREW DIN0912-M 5X12
    AH SCREW DIN0912-M 5X12
  • 20
    0912050303 AH SCREW DIN0912-M 5X30
    AH SCREW DIN0912-M 5X30
  • 21
    54637005000 CONTROL COVER R/S
    CONTROL COVER R/S
  • 22
    54637006100 GASKET FOR CONTROL COVER
    GASKET FOR CONTROL COVER
  • 24
    54737010000 FLANGE COVER KTC
    FLANGE COVER KTC
  • 25
    0770690020 O-RING 69,00X2,00 NBR 70
    O-RING 69,00X2,00 NBR 70
  • 26
    0015050203 HH COLLAR SCREW M 5X20 WS=8
    HH COLLAR SCREW M 5X20 WS=8
  • 30
    0770840021 O-RING 84,00X2,00 SILICON
    O-RING 84,00X2,00 SILICON
  • 31
    0770114020 O-RING 114,00X2,00 SILICON
    O-RING 114,00X2,00 SILICON
  • 32
    54730006100 CYLINDER HEAD "3602"
    CYLINDER HEAD "3602"
  • 33
    56530079000 SPECIAL SCREW M8X42-10.9
    SPECIAL SCREW M8X42-10.9
  • 34
    56530080000 CU-SEAL RING 8 X 16 X 1
    CU-SEAL RING 8 X 16 X 1
  • 40
    54630097000 GASKET SET CYLINDER
    GASKET SET CYLINDER
