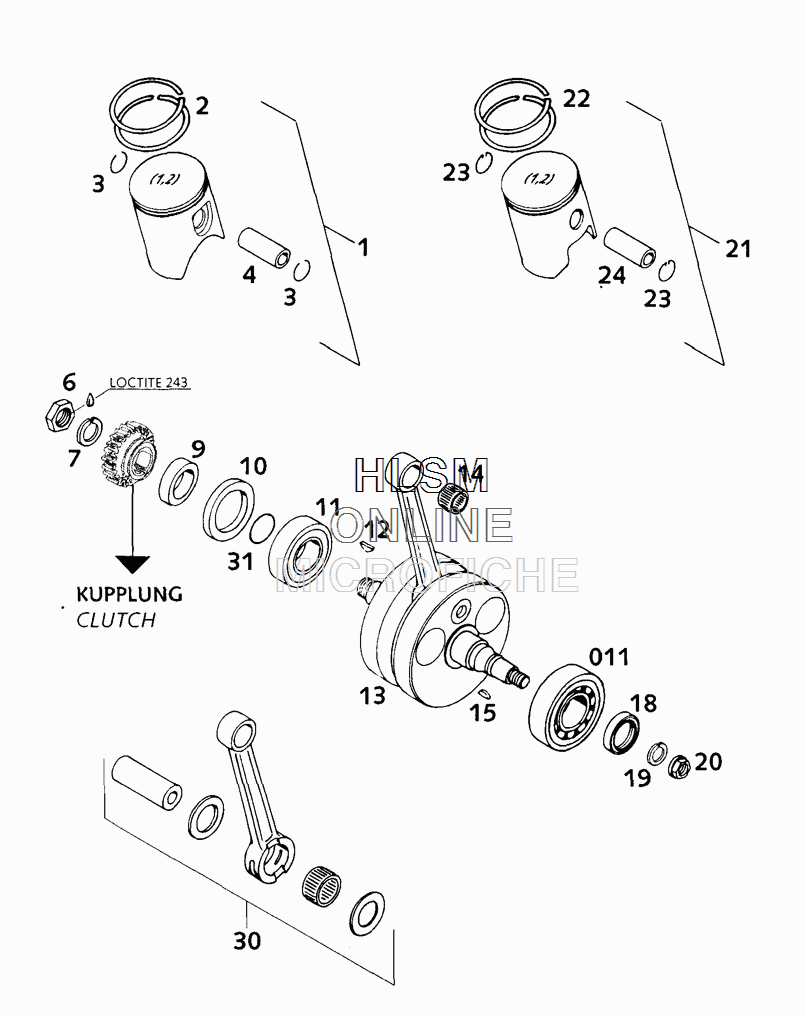

CRANKSHAFT W/ PISTON для Ktm 380 MXC - 2001 года выпуска`

№

Артикул

Название
1

54730007300I PISTON I CPL. 78,0MM (TWO RINGS)

PISTON I CPL. 78,0MM (TWO RINGS)

93 290 ₽
1

54730007300II PISTON II CPL. 78,0MM (TWO RINGS)

PISTON II CPL. 78,0MM (TWO RINGS)

102 210 ₽
2

54730032000 SQUARE R. 78,0X1,25

SQUARE R. 78,0X1,25

13 780 ₽
3

54030074000 WIRE LOCK RING C18X1,5

WIRE LOCK RING C18X1,5

620 ₽
4

54730033000 PISTON PIN 18 X 48

PISTON PIN 18 X 48

15 120 ₽
6

54630029000 HEX.NUT L/S M18X1,5

HEX.NUT L/S M18X1,5

2 490 ₽
7

58132072000 LOCK WASHER VSK 18

LOCK WASHER VSK 18

320 ₽
9

54630016400 SPACER SLEEVE 28X38X11,5

SPACER SLEEVE 28X38X11,5

5 900 ₽
10

0760385273 SHAFT SEAL RING 38X52X7BTSL

SHAFT SEAL RING 38X52X7BTSL

5 960 ₽
11

0625622064 BALL BEARING 62206.803107

BALL BEARING 62206.803107

14 010 ₽
011

56530123100 CYLIND.ROLLER BEARING N1207NSK

CYLIND.ROLLER BEARING N1207NSK

28 910 ₽
12

6946005 WOODRUFF KEY 5X6,5 HARDED

WOODRUFF KEY 5X6,5 HARDED

290 ₽
13

54730018500 CRANKSHAFT STROKE 77 "380"

CRANKSHAFT STROKE 77 "380"

170 ₽
14

54430034000 NEEDLE BEARING KBK 18X22X20

NEEDLE BEARING KBK 18X22X20

5 640 ₽
15

0888030050 WOODRUFF KEY DIN6888-3X5X13

WOODRUFF KEY DIN6888-3X5X13

290 ₽
18

0760253570 SHAFT SEAL RING 25X35X7 BTSL

SHAFT SEAL RING 25X35X7 BTSL

4 650 ₽
19

50230029012 LOCKING RING VSK 12

LOCKING RING VSK 12

290 ₽
20

49030021000 COLLAR NUT M12X1 R/S

COLLAR NUT M12X1 R/S

2 660 ₽
22

54630332000 SQUARE RING 72,0X1,25 300 CC

SQUARE RING 72,0X1,25 300 CC

11 200 ₽
23

54330074000 WIRE LOCK RING SKA 18

WIRE LOCK RING SKA 18

2 540 ₽
24

54630033000 PISTON PIN 18 X 44

PISTON PIN 18 X 44

10 030 ₽
30

54730015000 CONR.REPKIT 360/380 135MM

CONR.REPKIT 360/380 135MM

98 370 ₽
31

0770250015 O-RING 25,00X1,50 NBR 70

O-RING 25,00X1,50 NBR 70

60 ₽
