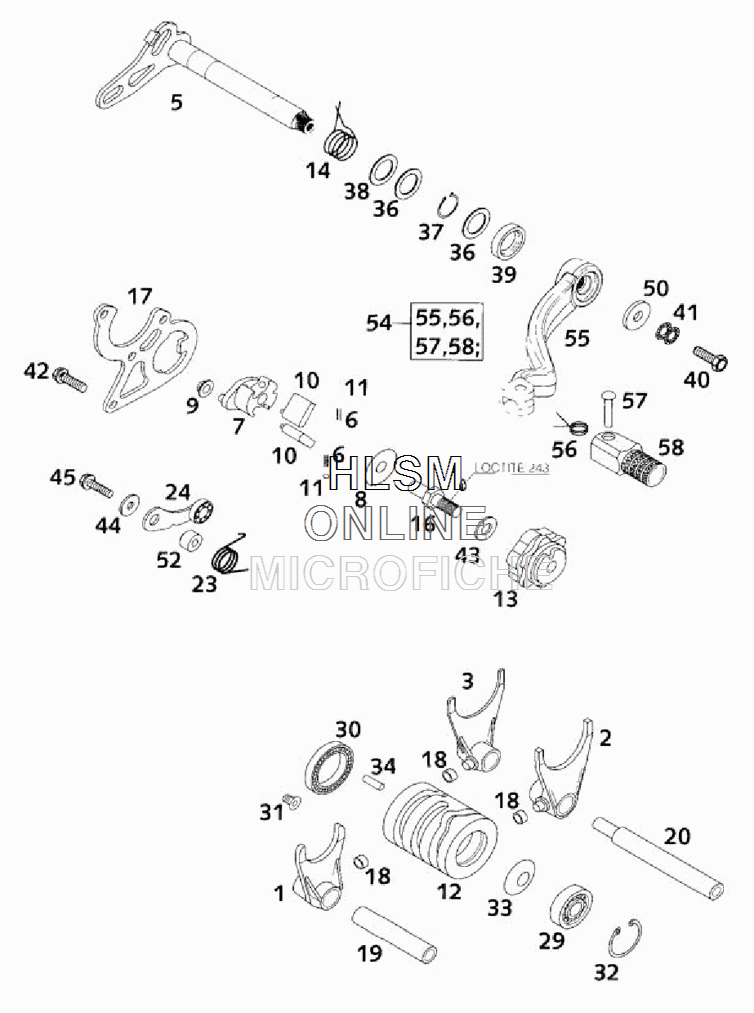

SHIFTING MECHANISM для Ktm 125 EXC - 2001 года выпуска
-
№АртикулНазвание
-
150334001000 SHIFTING FORK 5TH/6TH GEARSHIFTING FORK 5TH/6TH GEAR
-
250334002000 SHIFTING FORK 2ND/4TH GEARSHIFTING FORK 2ND/4TH GEAR
-
350334003000 SHIFTING FORK 1ST/3RD GEARSHIFTING FORK 1ST/3RD GEAR
-
550334005000 SHIFTING SHAFTSHIFTING SHAFT
-
650334007052 SPRING FOR RATCHET 0,5X11,5SPRING FOR RATCHET 0,5X11,5
-
750334007000 RATCHET SUPPORTRATCHET SUPPORT
-
850334007054 STOP DISK 8,2X26X0,7STOP DISK 8,2X26X0,7
-
950334007053 BUSHING 6X8X12X4,5BUSHING 6X8X12X4,5
-
1050334007050 SHIFTING RATCHETSHIFTING RATCHET
-
1150334007051 PRESSURE END PAD 4,1X5,6X8,4PRESSURE END PAD 4,1X5,6X8,4
-
1250334012100 SHIFTING DRUM ALUSHIFTING DRUM ALU
-
1350334013000 LOCATING DRUMLOCATING DRUM
-
1450334014000 RETURN SPRING 3MMRETURN SPRING 3MM
-
1650334016000 SPECIAL SCREW LOCATING DRUM M8SPECIAL SCREW LOCATING DRUM M8
-
1750334017000 SHIFT COULISSE 3MMSHIFT COULISSE 3MM
-
1850334018100 SHIFTING ROLLER 6X8X5,2SHIFTING ROLLER 6X8X5,2
-
1950334019000 SHIFTING ROD DRIVE 11,8X67,5SHIFTING ROD DRIVE 11,8X67,5
-
2050334020000 SHIFT ROD DRIVE END 11,8X94,5SHIFT ROD DRIVE END 11,8X94,5
-
2350334023000 LOCATING LEVER SPRING 2,5MMLOCATING LEVER SPRING 2,5MM
-
2450334024044 LOCATING LEVER CPL.LOCATING LEVER CPL.
-
290625060006 BALL BEARING 6000 RS1.C3BALL BEARING 6000 RS1.C3
-
300625618050 BALL BEARING 61805 C3BALL BEARING 61805 C3
-
310991050102 FLAT HEAD SCREW DIN7991-M 5X10FLAT HEAD SCREW DIN7991-M 5X10
-
320472260120 LOCK RING DIN0472-26X1,2LOCK RING DIN0472-26X1,2
-
330093251209 SPRING WASHER 12,2X25X0,9SPRING WASHER 12,2X25X0,9
-
340402040980 NEEDLE ROL.DIN5402 NRB 4X 9,8NEEDLE ROL.DIN5402 NRB 4X 9,8
-
3649033031000 STOP DISK 14,3X20X1STOP DISK 14,3X20X1
