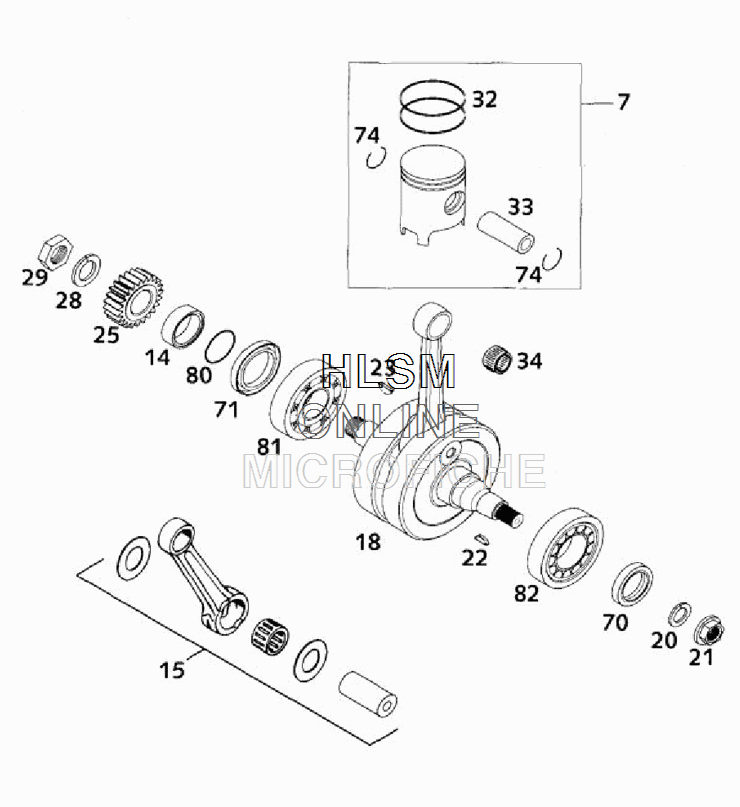

CRANKSHAFT W/ PISTON для Ktm 125 EXC - 2001 года выпуска

  • №
    Артикул
    Название
  • 7
    50330007500I PISTON I CPL. 54MM 125 2001 (ONE RING, CAST)
    PISTON I CPL. 54MM 125 2001 (ONE RING, CAST)
  • 7
    50330007500II PISTON II CPL.54MM 125 2001 (ONE RING, CAST)
    PISTON II CPL.54MM 125 2001 (ONE RING, CAST)
  • 7
    50330007400I PISTON 1 CPL. 54MM 125 2000 (TWO RINGS, CAST)
    PISTON 1 CPL. 54MM 125 2000 (TWO RINGS, CAST)
  • 7
    50330007400II PISTON II CPL.54MM 125 2000 (TWO RINGS, CAST)
    PISTON II CPL.54MM 125 2000 (TWO RINGS, CAST)
  • 14
    54633014100 SPACER BUSHING 12 MM
    SPACER BUSHING 12 MM
  • 15
    50330015000 CON.ROD REPAIR KIT
    CON.ROD REPAIR KIT
  • 18
    50330018100 CRANKSHAFT (STROKE 54,5)
    CRANKSHAFT (STROKE 54,5)
  • 20
    50230029012 LOCKING RING VSK 12
    LOCKING RING VSK 12
  • 21
    49030021000 COLLAR NUT M12X1 R/S
    COLLAR NUT M12X1 R/S
  • 22
    0888030050 WOODRUFF KEY DIN6888-3X5X13
    WOODRUFF KEY DIN6888-3X5X13
  • 23
    6946005 WOODRUFF KEY 5X6,5 HARDED
    WOODRUFF KEY 5X6,5 HARDED
  • 25
    50332023023 PRIMARY PINION 23-T
    PRIMARY PINION 23-T
  • 28
    50230029016 LOCKING RING VSK 16
    LOCKING RING VSK 16
  • 29
    50330029000 HEXAGON NUT M 16 X 1,5 - L/S
    HEXAGON NUT M 16 X 1,5 - L/S
  • 32
    50330032500 SQUARE RING 54X1
    SQUARE RING 54X1
  • 33
    50330033500 PISTON PIN 15X45,2
    PISTON PIN 15X45,2
  • 34
    51030034000 NEEDLE BEARING K15 X 19 X 20
    NEEDLE BEARING K15 X 19 X 20
  • 70
    0760253570 SHAFT SEAL RING 25X35X7 BTSL
    SHAFT SEAL RING 25X35X7 BTSL
  • 71
    0760324564 SHAFT SEAL RING 32X45X6,5 BT
    SHAFT SEAL RING 32X45X6,5 BT
  • 74
    50330074500 WIRE LOCK RING 15X1
    WIRE LOCK RING 15X1
  • 80
    0770250020 O-RING 25,00X2,00 NBR 70
    O-RING 25,00X2,00 NBR 70
  • 81
    0625063054 BALL BEARING NSK 6305 C4E
    BALL BEARING NSK 6305 C4E
  • 82
    50330082000 CYL.ROLLER BEAR.N1206 ET2XCS45
    CYL.ROLLER BEAR.N1206 ET2XCS45
