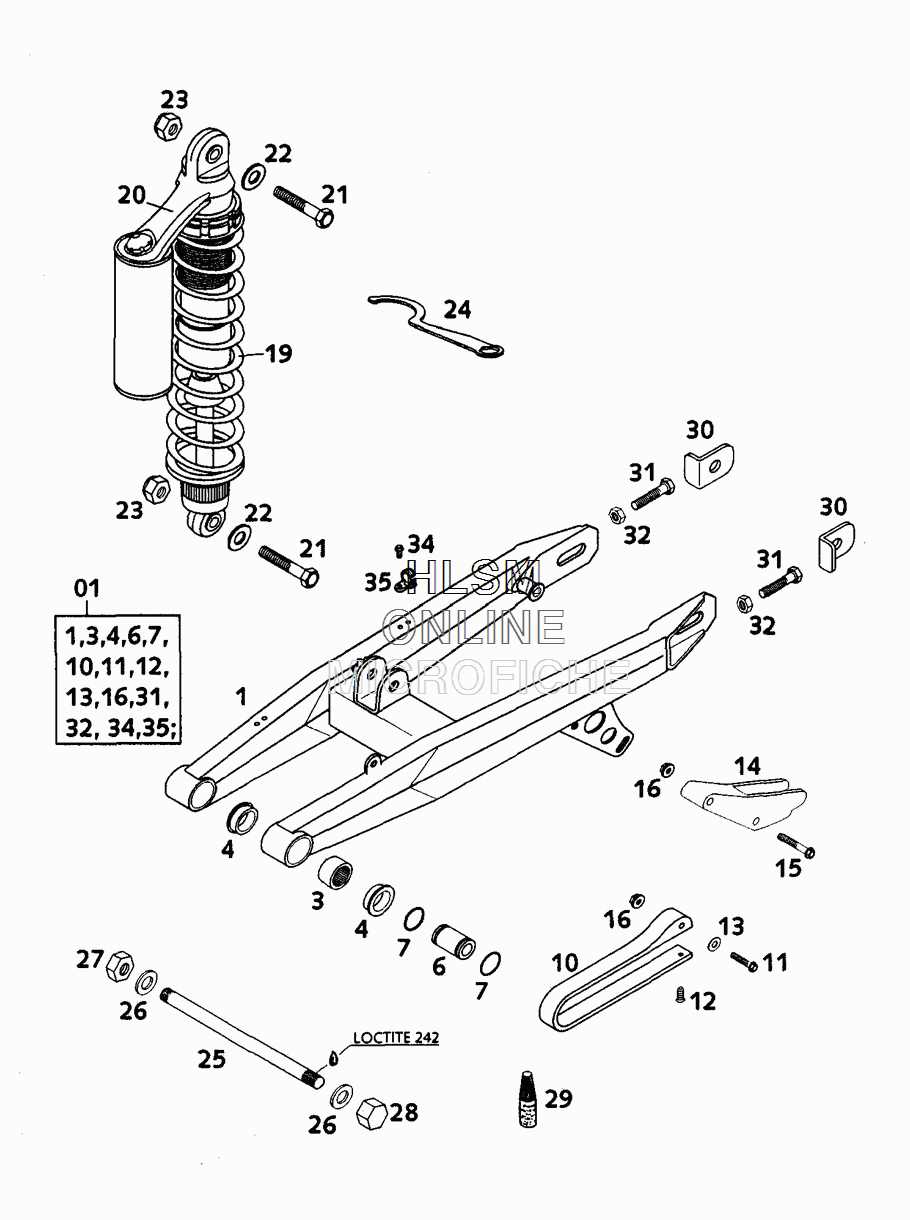

SWINGARM W/ SHOCK ABSORBER для Ktm 65 SX - 2000 года выпуска

  • №
    Артикул
    Название
  • 01
    46004030244 SWINGARM CPL.
    SWINGARM CPL.
  • 3
    54603097000 NEEDLE BUSH HK 2016
    NEEDLE BUSH HK 2016
  • 4
    46004030070 SPACER BUSHING 20X26X30X9,7
    SPACER BUSHING 20X26X30X9,7
  • 6
    46004030071 BEARING BUSH 12X20X36,5
    BEARING BUSH 12X20X36,5
  • 7
    0770160021 O-RING 16,00X2,00 VITON
    O-RING 16,00X2,00 VITON
  • 10
    46004066000 CHAIN GUIDE FRONT
    CHAIN GUIDE FRONT
  • 11
    0015060303 HH COLLAR SCREW M 6X30 WS=8
    HH COLLAR SCREW M 6X30 WS=8
  • 12
    0965050103 FLAT HEAD SCREW DIN0965-M 5X10
    FLAT HEAD SCREW DIN0965-M 5X10
  • 13
    53002046000 WASHER 6,4X14X0,8
    WASHER 6,4X14X0,8
  • 14
    46007066000 CHAIN GUIDE REAR
    CHAIN GUIDE REAR
  • 15
    0015060403 HH COLLAR SCREW M 6X40 WS=8
    HH COLLAR SCREW M 6X40 WS=8
  • 16
    56509064100 SELF LOCKING NUT M6 10.9
    SELF LOCKING NUT M6 10.9
  • 19
    93010116 SPRING WP 35-220
    SPRING WP 35-220
  • 19
    93010049 SPRING WP 40-220
    SPRING WP 40-220
  • 19
    93010050 SPRING WP 45-220
    SPRING WP 45-220
  • 20
    0318U706 MONOSHOCK WP 65SX 2000
    MONOSHOCK WP 65SX 2000
  • 21
    0931100453 HH SCREW DIN0931-M10X45
    HH SCREW DIN0931-M10X45
  • 22
    0125100003 WASHER DIN0125-A10,5
    WASHER DIN0125-A10,5
  • 23
    54310086100 SELF LOCKING NUT M10 CU WS=14
    SELF LOCKING NUT M10 CU WS=14
  • 24
    46012024000 HOOK WRENCH FOR SHOCK ABSORBER
    HOOK WRENCH FOR SHOCK ABSORBER
  • 25
    46004037000 SWINGARM BOLT 201MM M12X1
    SWINGARM BOLT 201MM M12X1
  • 26
    0125120003 FLAT WASHER DIN0125-A13
    FLAT WASHER DIN0125-A13
  • 27
    0934120103 HEXAGON NUT DIN0934-M12X1
    HEXAGON NUT DIN0934-M12X1
  • 28
    0917120103 NUT DIN917-M12X1
    NUT DIN917-M12X1
  • 29
    6899785 LOCTITE 242 BLUE 6CCM
    LOCTITE 242 BLUE 6CCM
  • 30
    46010083000 CHAIN ADJUSTER
    CHAIN ADJUSTER
  • 31
    0933060303 HH SCREW DIN0933-M 6X30
    HH SCREW DIN0933-M 6X30
  • 32
    0934060003 HEXAGON NUT DIN0934-M 6
    HEXAGON NUT DIN0934-M 6
  • 34
    0009050103 SPECIAL SCREW M 5,0X10
    SPECIAL SCREW M 5,0X10
  • 35
    54611076000 RETAINING CLAMP FOR BRAKE HOSE
    RETAINING CLAMP FOR BRAKE HOSE
