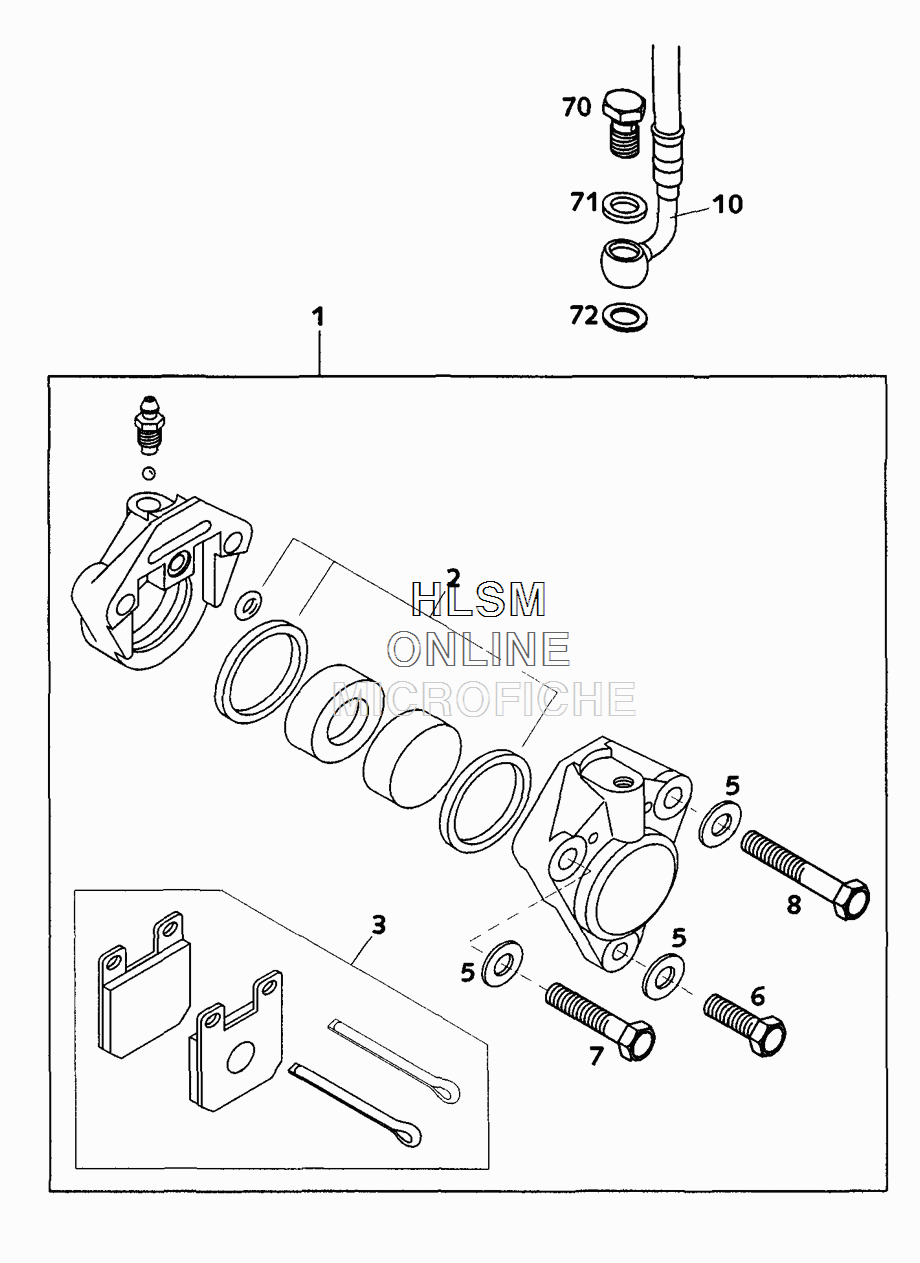

BRAKE CALIPER FRONT для Ktm 65 SX - 2000 года выпуска
-
№АртикулНазвание
-
146013015000 BRAKE CALIPER CPL. FRONTBRAKE CALIPER CPL. FRONT
-
246013019000 REP KIT PISTON BRAKE CALIPERREP KIT PISTON BRAKE CALIPER
-
346013016000 BRAKE PAD SET GRIMECABRAKE PAD SET GRIMECA
-
50125080003 WASHER DIN0125-A 8,4WASHER DIN0125-A 8,4
-
60015080253 HH COLLAR SCREW M 8X25 WS=10HH COLLAR SCREW M 8X25 WS=10
-
70015080403 HH COLLAR SCREW M 8X40 WS=10HH COLLAR SCREW M 8X40 WS=10
-
80015080503 HH COLLAR SCREW M 8X50 WS=10HH COLLAR SCREW M 8X50 WS=10
-
1046013010100 BRAKE HOSE FR.790MMBRAKE HOSE FR.790MM
-
7050213025000 HOLLOW SCREW M10X1X19HOLLOW SCREW M10X1X19
-
7142013026000 CU-SEAL RING DIN7603-10X16X1,5CU-SEAL RING DIN7603-10X16X1,5
-
7242013226000 CU-SEAL RING DIN7603-10X16X1CU-SEAL RING DIN7603-10X16X1
