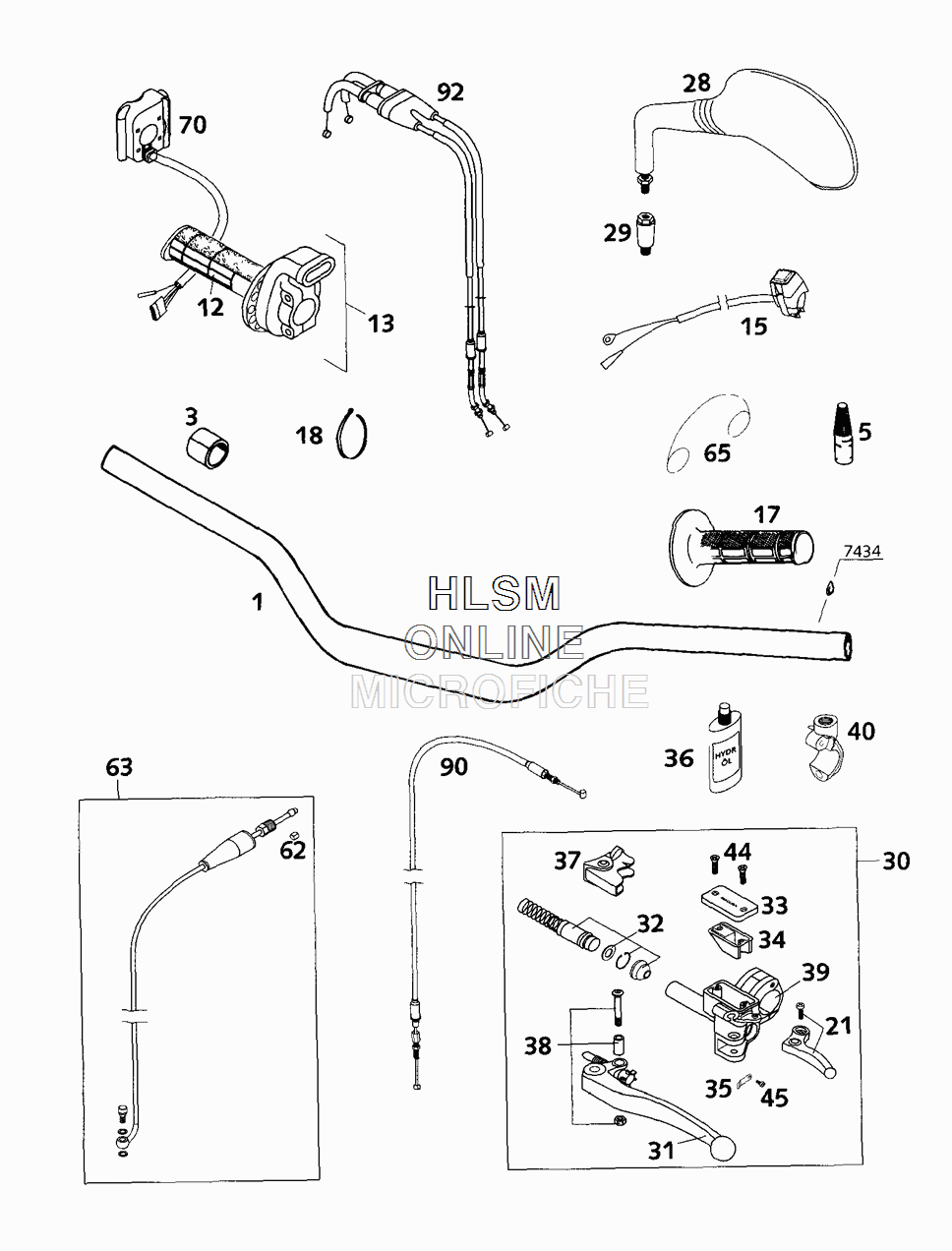

HANDLEBAR W/ CONTROLS для Ktm 520 SX Racing - 2000 года выпуска
-
№АртикулНазвание
-
159002001000 HANDLEBAR SC,HANDLEBAR SC,
-
350202010000 SPACER BUSHING 22X28X22PVCSPACER BUSHING 22X28X22PVC
-
56899791 GLUE CYANACRYLAT 7434GLUE CYANACRYLAT 7434
-
1250202003000 TWIST GRIP COVER (DOMINO BLACK)TWIST GRIP COVER (DOMINO BLACK)
-
1359002010200 THROTTLE GRIP CPL.THROTTLE GRIP CPL.
-
1550311089000 SHORT CISCUIT BUTTONSHORT CISCUIT BUTTON
-
1750202052000 FIXED GRIP (DOMINO BLACK)FIXED GRIP (DOMINO BLACK)
-
1844011076200 CABLE TIE 200MMCABLE TIE 200MM
-
1844011076100 CABLE TIE 100MMCABLE TIE 100MM
-
2159002047000 DECO.LEVER CPL.DECO.LEVER CPL.
-
2858412040000 MIRROR LC4 (LEFT)MIRROR LC4 (LEFT)
-
2858412041000 MIRROR LC4 (RIGHT)MIRROR LC4 (RIGHT)
-
2958412040050 SUPPORT FOR MIRRORSUPPORT FOR MIRROR
-
3059002030000 MASTERCYLINDER CPLMASTERCYLINDER CPL
-
3150302031000 CLUTCH LEVER CPL.CLUTCH LEVER CPL.
-
3150302031100 CLU.LEVER SHORT CPL. 2TCLU.LEVER SHORT CPL. 2T
-
3259002032000 REP.KIT PISTON 9,5MMREP.KIT PISTON 9,5MM
-
3359002033000 COVER HYD.CLUTCH RACINGCOVER HYD.CLUTCH RACING
-
3450302034000 RUBBER FOR RESERVOIRRUBBER FOR RESERVOIR
-
3550302035000 SPRING PLATE FOR LEVERSPRING PLATE FOR LEVER
-
3650302036000 OIL FOR HYD.CLUTCH 50MLOIL FOR HYD.CLUTCH 50ML
-
3750302037000 PROTECT.CAP FOR LEVER PERCHPROTECT.CAP FOR LEVER PERCH
-
3850302038000 LEVER SCREW CPL.LEVER SCREW CPL.
-
3950302030150 CLAMP WITH PINCLAMP WITH PIN
-
4059002044000 CLAMP MIRROR WITH PIN M10X1,25CLAMP MIRROR WITH PIN M10X1,25
-
440965040123 FLAT HEAD SCREW DIN0965-M 4X12FLAT HEAD SCREW DIN0965-M 4X12
-
450984030063 AH SCREW DIN7984-M 3X 6AH SCREW DIN7984-M 3X 6
-
6250332063050 SELF CUTTING RING HYDR.PIPESELF CUTTING RING HYDR.PIPE
-
6359032063000 PIPE KIT CPL. RACING 2000PIPE KIT CPL. RACING 2000
-
6550202052050 WIRE FOR FIXED GRIP (DOMINO BLACK)WIRE FOR FIXED GRIP (DOMINO BLACK)
-
7059011074000 START-STOP TIP SWITCH CPL. (US/EURO)START-STOP TIP SWITCH CPL. (US/EURO)
-
7059011074100 START-STOP SWITCH CPL. (AUSTRALIA)START-STOP SWITCH CPL. (AUSTRALIA)
-
9059002094000 DECOMPR. CABLEDECOMPR. CABLE
-
9259002091200 THR.CABLEOPEN-CLOSETHR.CABLEOPEN-CLOSE
