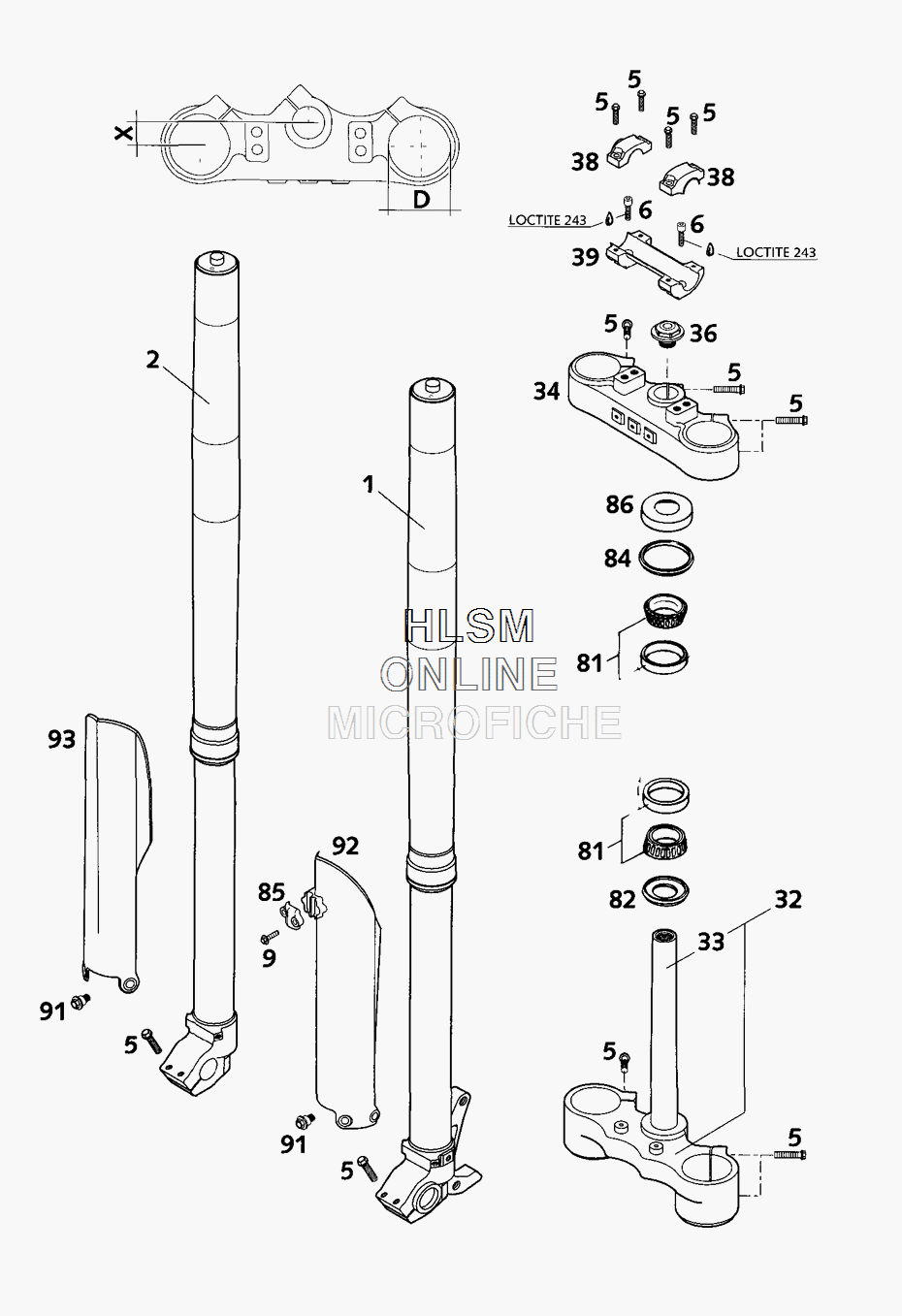

FRONT FORK (W/ PAINT) для Ktm 520 SX Racing - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    0518U791LS FORK LEG WP43 (LEFT)
    FORK LEG WP43 (LEFT)
  • 2
    0518U791RS FORK LEG WP43 (RIGHT)
    FORK LEG WP43 (RIGHT)
  • 5
    0015080303 HH COLLAR SCREW M 8X30 WS=10
    HH COLLAR SCREW M 8X30 WS=10
  • 6
    0912100250 AH SCREW DIN0912-M10X25 W.LOCK
    AH SCREW DIN0912-M10X25 W.LOCK
  • 9
    0017060203 SPECIAL SCREW T60 6X20
    SPECIAL SCREW T60 6X20
  • 32
    59001132020 BOT.TRIPLE CLAMP X=20MM/D=57MM
    BOT.TRIPLE CLAMP X=20MM/D=57MM
  • 33
    50101033100 FORK TUBE L=244
    FORK TUBE L=244
  • 34
    59001034020 TOP TRIPLE CLAMP X=20MM/D=57MM
    TOP TRIPLE CLAMP X=20MM/D=57MM
  • 36
    50301036000 STEER.HEAD SCREW M20X1,5 SW=27
    STEER.HEAD SCREW M20X1,5 SW=27
  • 38
    59001038100 HANDLEBAR CLAMP 28MM
    HANDLEBAR CLAMP 28MM
  • 39
    59001039100 HANDLEBAR SUPPORT 28MM
    HANDLEBAR SUPPORT 28MM
  • 81
    54201081000 TAPERED ROLLER BEARING
    TAPERED ROLLER BEARING
  • 82
    54601084100 O-RING SUPPORT W. SEALING LIP
    O-RING SUPPORT W. SEALING LIP
  • 84
    54601184000 STEARING HEAD GASKET TOP
    STEARING HEAD GASKET TOP
  • 85
    59001085000 CLAMP F. BRAKE HOSE
    CLAMP F. BRAKE HOSE
  • 86
    54201086000 STEERING HEAD COVER
    STEERING HEAD COVER
  • 91
    59001092050 SPECIAL SCREW M6X12,5 SW=8
    SPECIAL SCREW M6X12,5 SW=8
  • 92
    59001092000 FORK PROTEC. (LEFT) (SILVER)
    FORK PROTEC. (LEFT) (SILVER)
  • 93
    59001093000 FORK PROTEC. (RIGHT) (SILVER)
    FORK PROTEC. (RIGHT) (SILVER)
