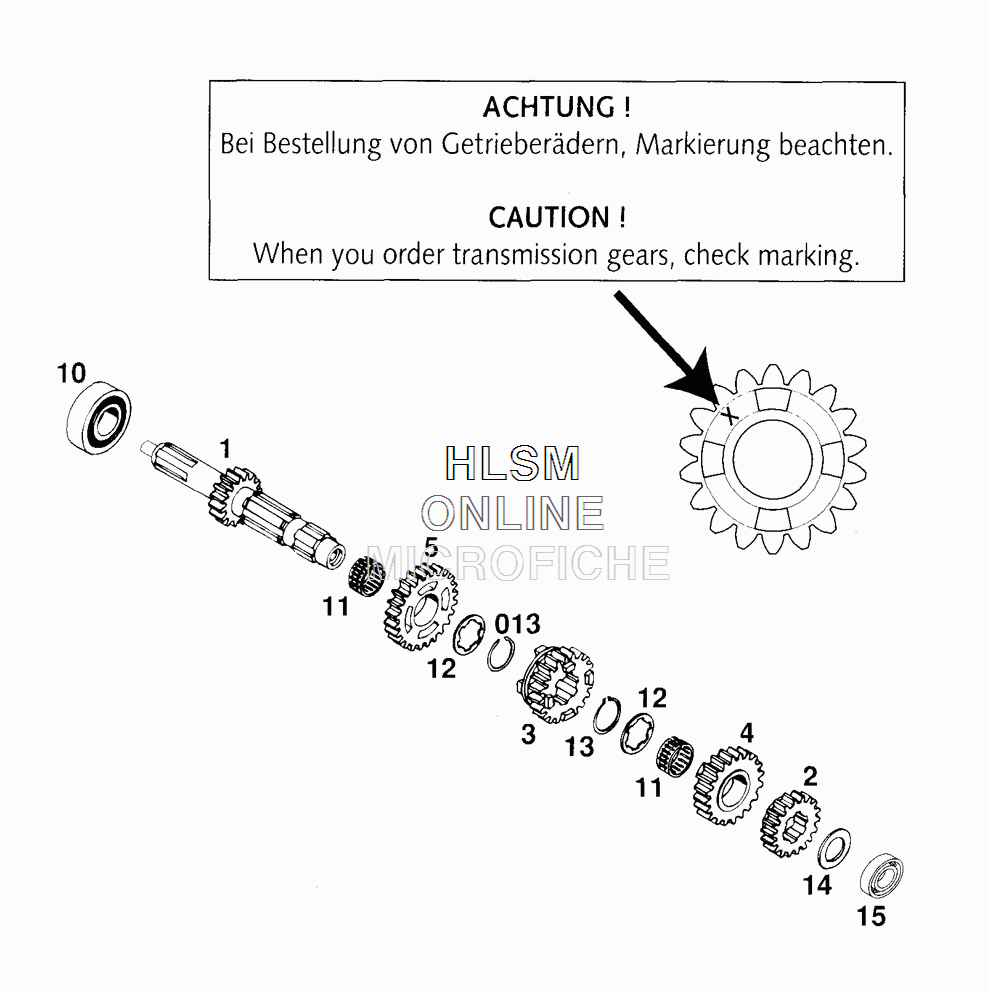

TRANSMISSION - MAIN SHAFT для Ktm 380 SX - 2000 года выпуска
-
№АртикулНазвание
-
154733001000 MAIN SHAFT 15-TMAIN SHAFT 15-T
-
254633010000 2ND GEAR MAINSHAFT 17-T "441"2ND GEAR MAINSHAFT 17-T "441"
-
354633106300 3RD GEAR MAINSHAFT 19-T "467"3RD GEAR MAINSHAFT 19-T "467"
-
454633008000 4TH GEAR MAINSHAFT 21-T "480"4TH GEAR MAINSHAFT 21-T "480"
-
554633004000 5TH GEAR MAINSHAFT 23-T "500"5TH GEAR MAINSHAFT 23-T "500"
-
100625201029 BALL BEARING 6304-22 C4 SKFBALL BEARING 6304-22 C4 SKF
-
1156533099000 NEEDLE BEAR. K22X26X13 DIVIDEDNEEDLE BEAR. K22X26X13 DIVIDED
-
1254633016000 STOP DISK 22,5X25,7X32X1,5STOP DISK 22,5X25,7X32X1,5
-
1352033096000 LOCK RINGLOCK RING
-
01354633096000 AXIAL-CIRCLIP 25X1,64AXIAL-CIRCLIP 25X1,64
-
1454633015000 STOP DISK 20,2X33X1,5STOP DISK 20,2X33X1,5
-
150625069040 BALL BEARING 61904 C3BALL BEARING 61904 C3
