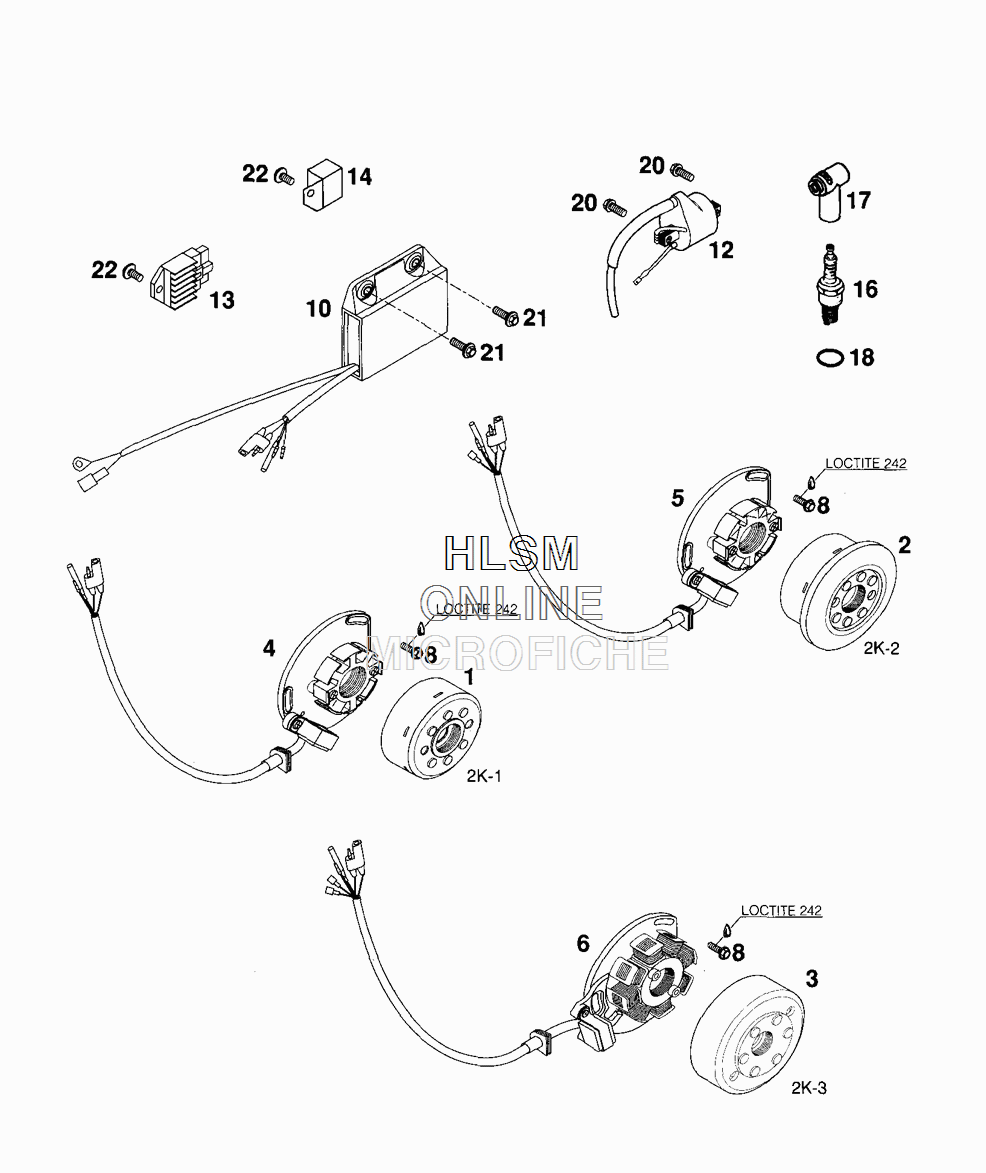

IGNITION SYSTEM для Ktm 380 SX - 2000 года выпуска
-
№АртикулНазвание
-
154739005000 FLYWHEEL KOKUSAN 2K-1/2K-4FLYWHEEL KOKUSAN 2K-1/2K-4
-
450339004000 STATOR KOKUSAN 2K-1STATOR KOKUSAN 2K-1
-
80015050163 HH COLLAR SCREW M 5X16 WS=8HH COLLAR SCREW M 5X16 WS=8
-
1054739031200 CDI UNIT CU7423CDI UNIT CU7423
-
1250339006000 IGNITION COIL KOKU.IGNITION COIL KOKU.
-
1454711034000 VOLTAGE REGULATOR (KOKUSAN)VOLTAGE REGULATOR (KOKUSAN)
-
1654331093410 SPARK PLUG NGK BR8ECMSPARK PLUG NGK BR8ECM
-
1754531010000 SPARK PLUG CAP LB05EMH NGKSPARK PLUG CAP LB05EMH NGK
-
180770150040 O-RING 15,00X4,00 NBR 70O-RING 15,00X4,00 NBR 70
-
200015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
210014060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
220015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
