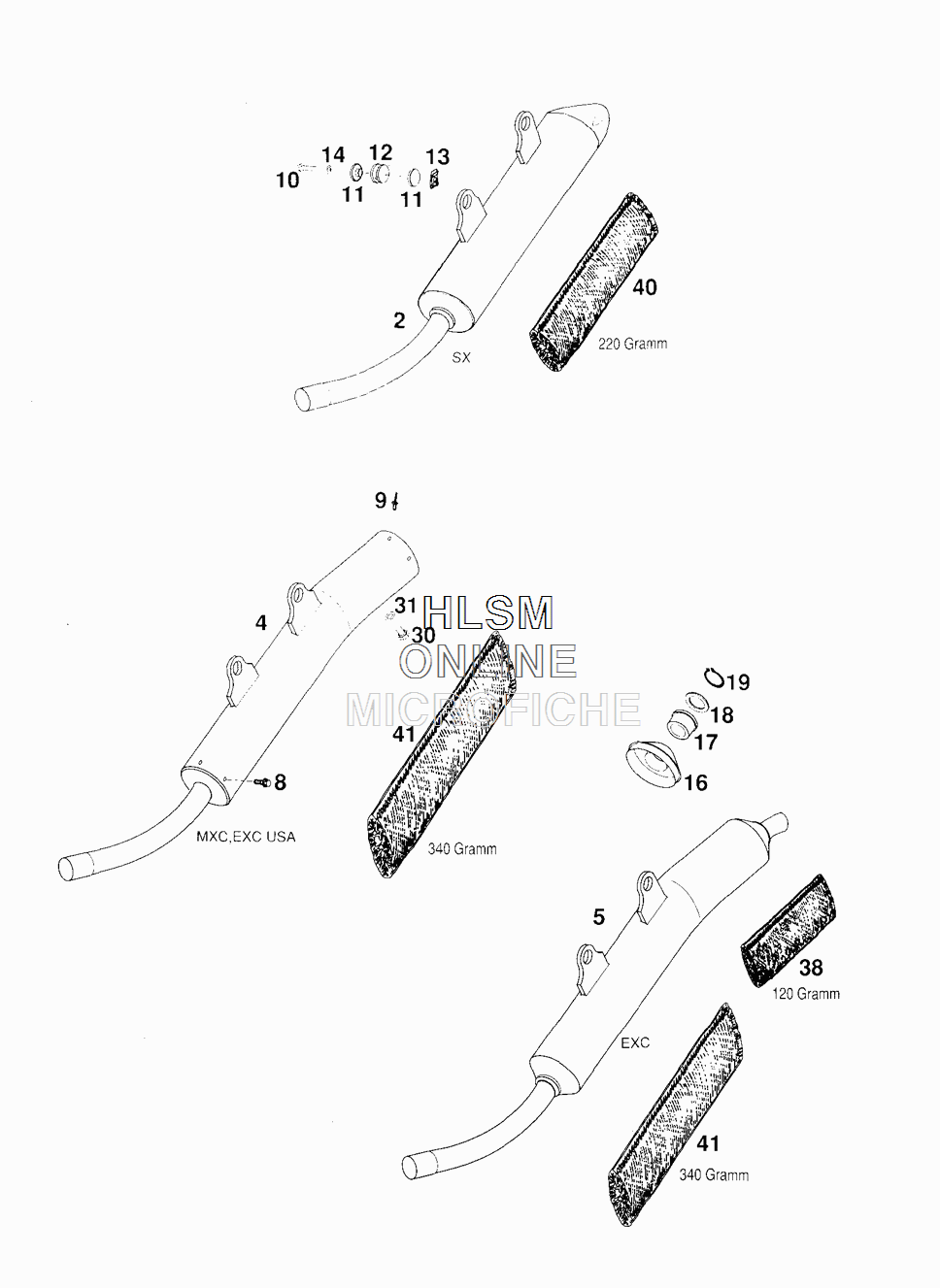

EXHAUST SILENCER для Ktm 380 MXC - 2000 года выпуска`
-
№АртикулНазвание
-
454705082100 EX.SILENCER (W/ SPARK ARRESTOR)EX.SILENCER (W/ SPARK ARRESTOR)
-
80009050103 SPECIAL SCREW M 5,0X10SPECIAL SCREW M 5,0X10
-
90011481030 RIVET 4,8X10,3 ALURIVET 4,8X10,3 ALU
-
100015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
1154605069000 BUSHING 7,5X12X28X7,8 '96BUSHING 7,5X12X28X7,8 '96
-
1254605068000 EXHAUST BRACKET RUBBER BLACKEXHAUST BRACKET RUBBER BLACK
-
1354603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
140137060000 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
1654705179070 SILENCER END CAP ALUSILENCER END CAP ALU
-
1654605379549 SILENCER CAP PLASTICSILENCER CAP PLASTIC
-
1754605379030 SEAL RING VITON D=30MM'97SEAL RING VITON D=30MM'97
-
1854705079047 WASHER D=30MMWASHER D=30MM
-
190471300151 CIRCLIP DIN0471-30X1,5 NIROCIRCLIP DIN0471-30X1,5 NIRO
-
300910100003 PLUG DIN0910-M10X1PLUG DIN0910-M10X1
-
3158038032010 CU-SEAL RING DIN7603-10X14X1CU-SEAL RING DIN7603-10X14X1
-
4158005078340 STUFFING YARN 340 GRAMMSTUFFING YARN 340 GRAMM
