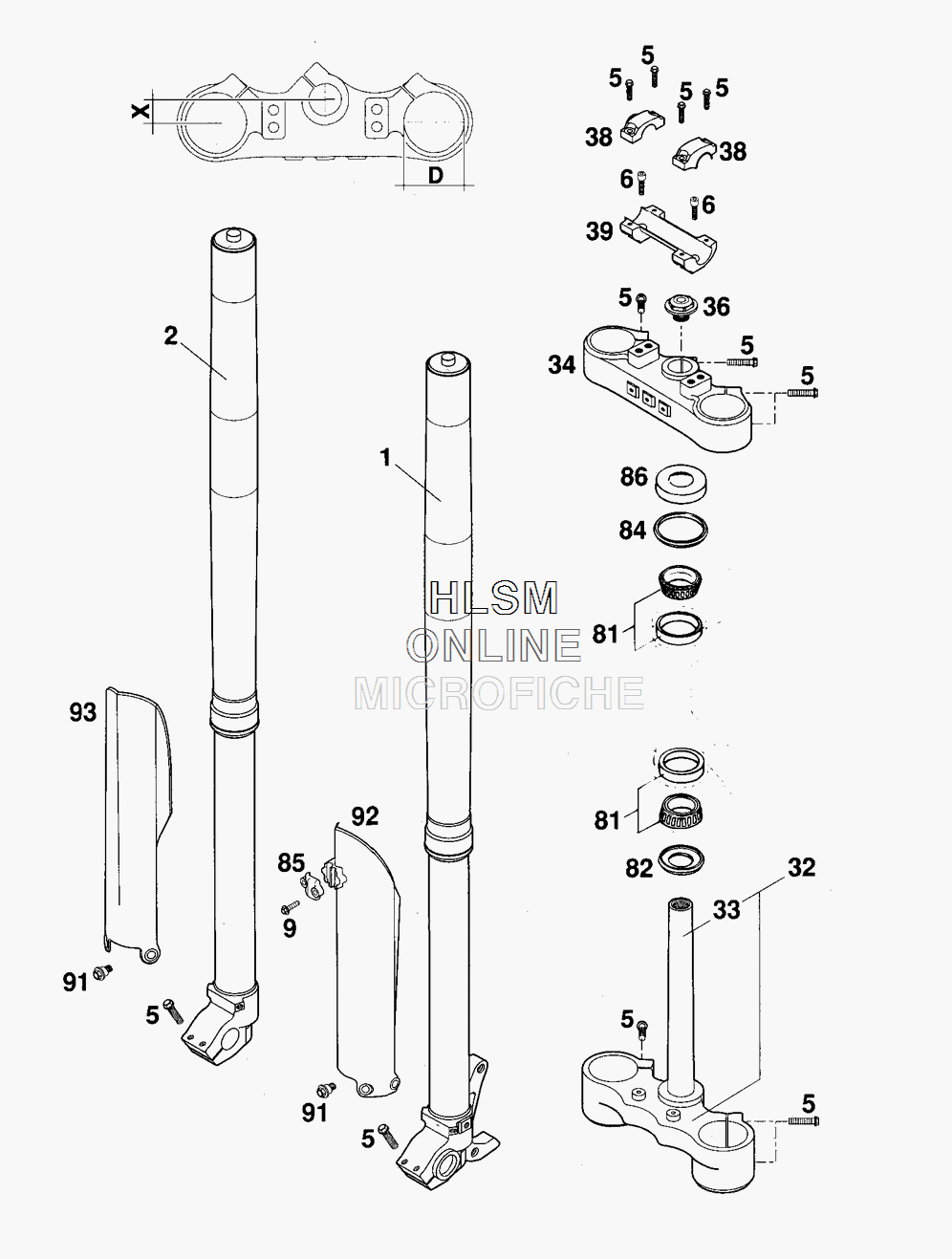

FRONT FORK (W/ PAINT) для Ktm 380 MXC - 2000 года выпуска`
-
№АртикулНазвание
-
10518U787LS FORK LEG L/S WP43FORK LEG L/S WP43
-
20518U787RS FORK LEG R/S WP43FORK LEG R/S WP43
-
50015080303 HH COLLAR SCREW M 8X30 WS=10HH COLLAR SCREW M 8X30 WS=10
-
60912100258 AH SCREW DIN6912-M10X25AH SCREW DIN6912-M10X25
-
90017060203 SPECIAL SCREW T60 M 6X20SPECIAL SCREW T60 M 6X20
-
3259001132020 BOT.TRIPLE CLAMP X=20MM/D=57MMBOT.TRIPLE CLAMP X=20MM/D=57MM
-
3350101033100 FORK TUBE L=244 '91FORK TUBE L=244 '91
-
3459001034020 TOP TRIPLE CLAMP X=20MM/D=57MMTOP TRIPLE CLAMP X=20MM/D=57MM
-
3650301036000 STEER.HEAD SCREW M20X1,5 SW=27STEER.HEAD SCREW M20X1,5 SW=27
-
3859001038000 HANDLEBAR CLAMP 22MM 2THANDLEBAR CLAMP 22MM 2T
-
3959001039000 HANDLEBAR SUPPORT 22M 2THANDLEBAR SUPPORT 22M 2T
-
8154201081000 TAPERED ROLLER BEARINGTAPERED ROLLER BEARING
-
8254601084100 O-RING SUPPORT W SEALING LIPO-RING SUPPORT W SEALING LIP
-
8454601184000 STEARING HEAD GASKET TOPSTEARING HEAD GASKET TOP
-
8559001085000 CLAMP F BRAKE HOSECLAMP F BRAKE HOSE
-
8654201086000 STEERING HEAD COVERSTEERING HEAD COVER
-
9159001092050 SPECIAL SCREW M6X12,5 SW=8SPECIAL SCREW M6X12,5 SW=8
-
9259001092000 FORK PROTEC. L/S SILVERFORK PROTEC. L/S SILVER
-
9359001093000 FORK PROTEC. R/S SILVERFORK PROTEC. R/S SILVER
