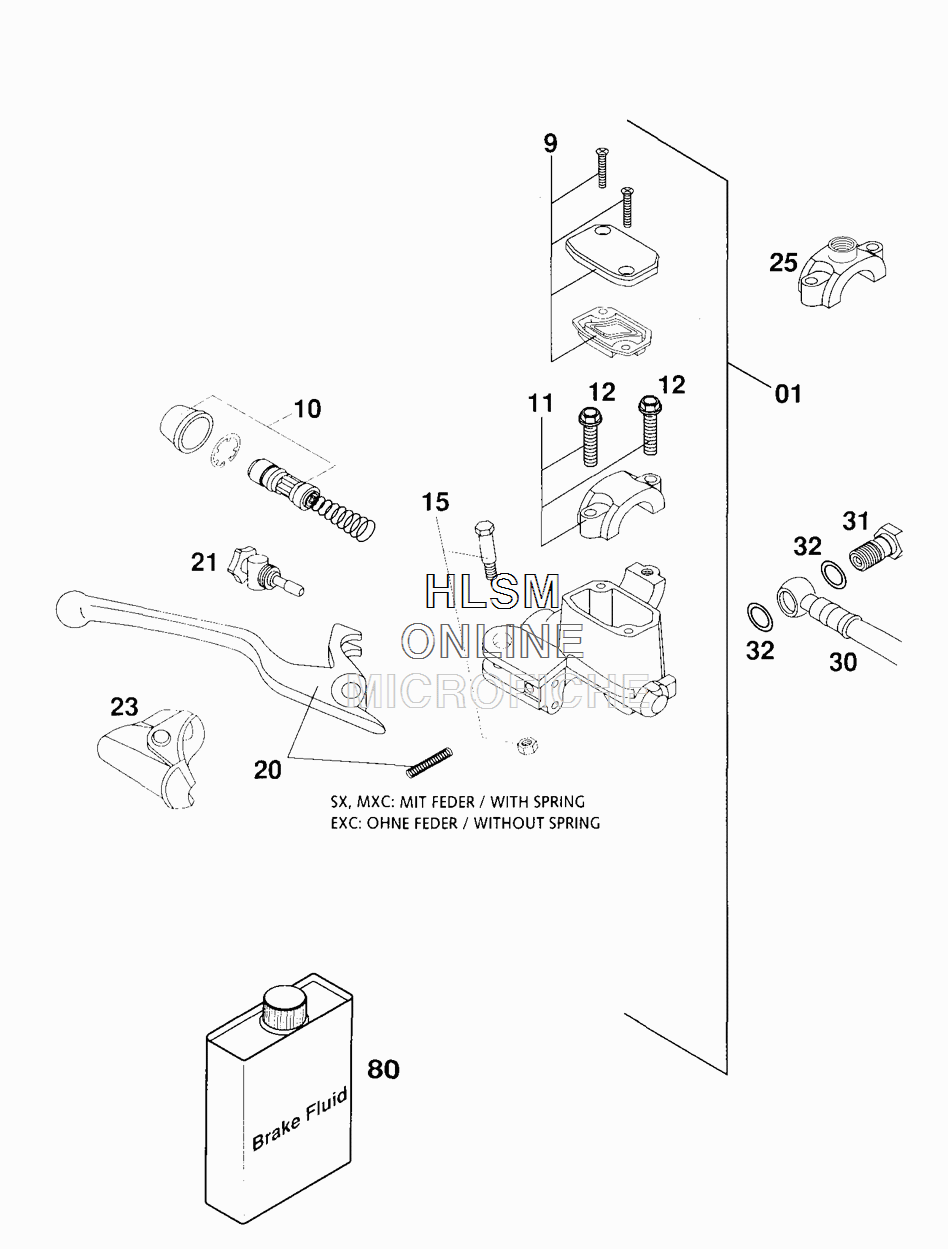

HAND BRAKE CYLINDER для Ktm 380 EXC - 2000 года выпуска

  • №
    Артикул
    Название
  • 01
    50313001000 HANDBRAKE CYL.SMALL
    HANDBRAKE CYL.SMALL
  • 9
    50313003000 HANDBRAKE CYL.COVER CPL.
    HANDBRAKE CYL.COVER CPL.
  • 10
    50313008100 REP.SET PISTON
    REP.SET PISTON
  • 11
    50313005000 CLAMP CPL. NATURE
    CLAMP CPL. NATURE
  • 12
    0015060253 HH COLLAR SCREW M 6X25 WS=8
    HH COLLAR SCREW M 6X25 WS=8
  • 15
    50313006000 LEVER SCREW CPL. MOD.
    LEVER SCREW CPL. MOD.
  • 20
    50313002000 HANDBRAKELEVER SHORT 18MM
    HANDBRAKELEVER SHORT 18MM
  • 21
    50313007100 ADJUSTING SCREW CPL.
    ADJUSTING SCREW CPL.
  • 23
    50313004000 PROTECTION CAP HAND BRAKE CYLINDER
    PROTECTION CAP HAND BRAKE CYLINDER
  • 25
    58012040150 CLAMP FOR MIRROW
    CLAMP FOR MIRROW
  • 30
    59013011000 BRAKEHO. FRONT 1300MM
    BRAKEHO. FRONT 1300MM
  • 31
    50213025000 HOLLOW SCREW M10X1X19
    HOLLOW SCREW M10X1X19
  • 32
    42013226000 CU-SEAL RING DIN7603-10X16X1
    CU-SEAL RING DIN7603-10X16X1
  • 80
    306054 BRAKE FLUID DOT 5.1
    BRAKE FLUID DOT 5.1
