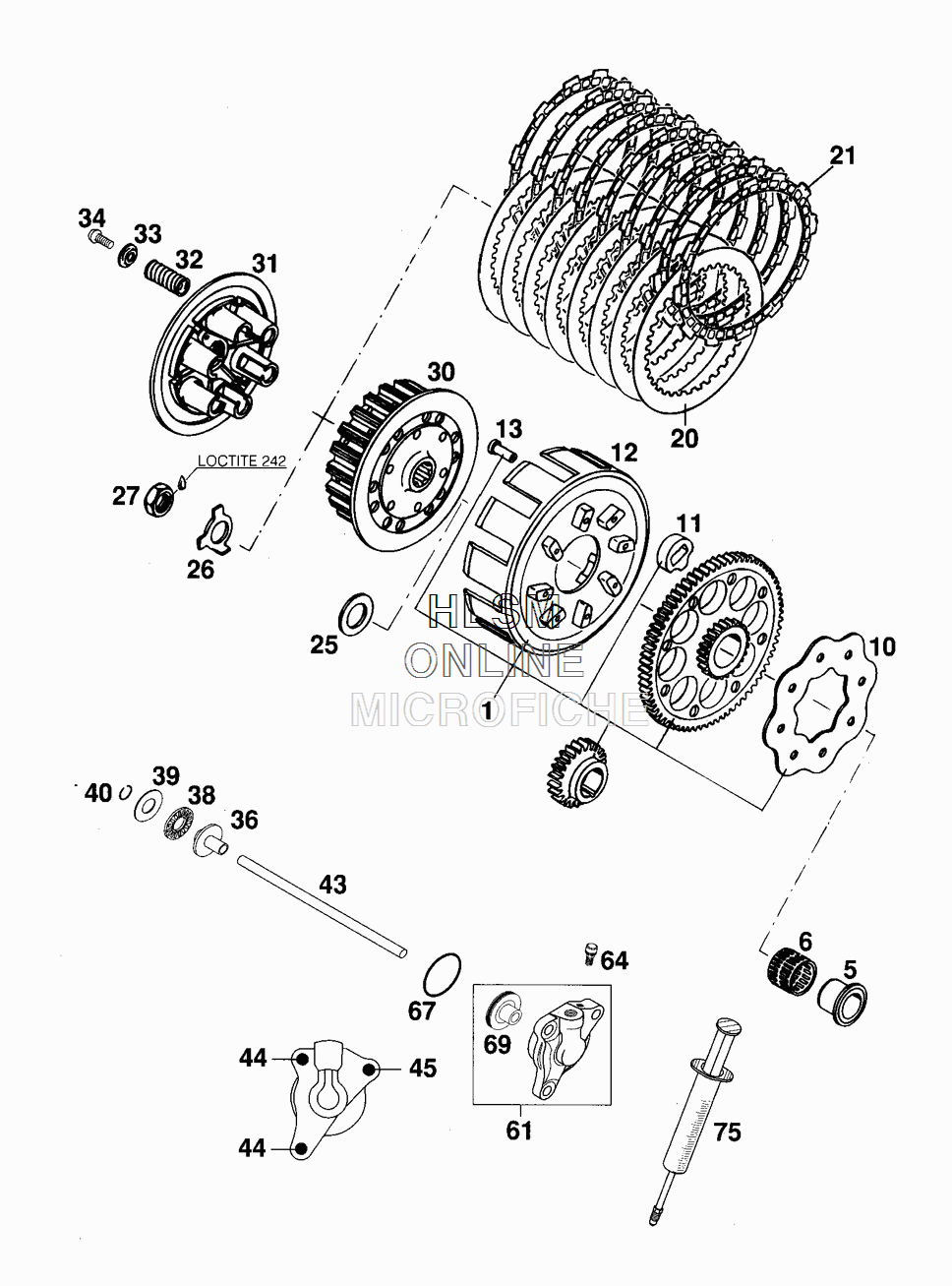

CLUTCH для Ktm 380 EXC - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    54632001372 OUTER CLUTCH HUB 72T PRIM.
    OUTER CLUTCH HUB 72T PRIM.
  • 5
    50332070000 INNER RING WITH COLLAR
    INNER RING WITH COLLAR
  • 6
    56532095000 NEEDLE BEARING K26X30X22ZW KSE
    NEEDLE BEARING K26X30X22ZW KSE
  • 10
    58132028000 RETAINING PLATE
    RETAINING PLATE
  • 11
    58132026000 DAMPING ELEMENT
    DAMPING ELEMENT
  • 12
    54632001200 OUTER CLUTCH HUB LOOSE
    OUTER CLUTCH HUB LOOSE
  • 13
    0733060150 CLUTCH RIVET DIN7338- 6X15
    CLUTCH RIVET DIN7338- 6X15
  • 20
    54632012000 STEEL DISK 1,2 MM
    STEEL DISK 1,2 MM
  • 21
    54632011300 LINING DISK 2,7 MM
    LINING DISK 2,7 MM
  • 25
    57532013000 SUPPORTWASHER 22,2X35X3 HARDE.
    SUPPORTWASHER 22,2X35X3 HARDE.
  • 26
    56532018000 LOCK WASHER
    LOCK WASHER
  • 27
    0936181505 HEXAGON NUT DIN0936-M18X1,5 R.
    HEXAGON NUT DIN0936-M18X1,5 R.
  • 30
    54632002200 INNER CLUTCH HUB
    INNER CLUTCH HUB
  • 31
    54632003000 PRESSURE CAP
    PRESSURE CAP
  • 32
    54632080000 CLUTCH SPRING 2,5X43 8,5W
    CLUTCH SPRING 2,5X43 8,5W
  • 33
    58132081000 SPRING RETAINER 6,2 X 20 X 3,2
    SPRING RETAINER 6,2 X 20 X 3,2
  • 34
    0015060163 HH COLLAR SCREW M 6X16 WS=8
    HH COLLAR SCREW M 6X16 WS=8
  • 36
    50332054051 PRESSURE PIECE
    PRESSURE PIECE
  • 38
    54637097200 AXIAL NEEDLE BEARING 1226 AXK
    AXIAL NEEDLE BEARING 1226 AXK
  • 39
    54637098200 AXIAL WASHER AS1226 12X26X1
    AXIAL WASHER AS1226 12X26X1
  • 39
    54637098300 AXIAL WASHER 12,5X25,8X1,5
    AXIAL WASHER 12,5X25,8X1,5
  • 40
    0993012000 CIRCLIP DIN7993A-RW12
    CIRCLIP DIN7993A-RW12
  • 43
    54732054000 PUSH ROD L=199,8MM
    PUSH ROD L=199,8MM
  • 44
    0015060163 HH COLLAR SCREW M 6X16 WS=8
    HH COLLAR SCREW M 6X16 WS=8
  • 45
    0015060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 61
    54732061044 CYLINDER CPL.
    CYLINDER CPL.
  • 64
    54732064000 BLEEDER SCREW WITH CAP
    BLEEDER SCREW WITH CAP
  • 67
    0770300015 O-RING 30,00X1,50
    O-RING 30,00X1,50
  • 69
    54632066000 PISTON W. O-RING
    PISTON W. O-RING
  • 75
    50329050000 VENT INJEKTION HYDR. CLUTCH
    VENT INJEKTION HYDR. CLUTCH
