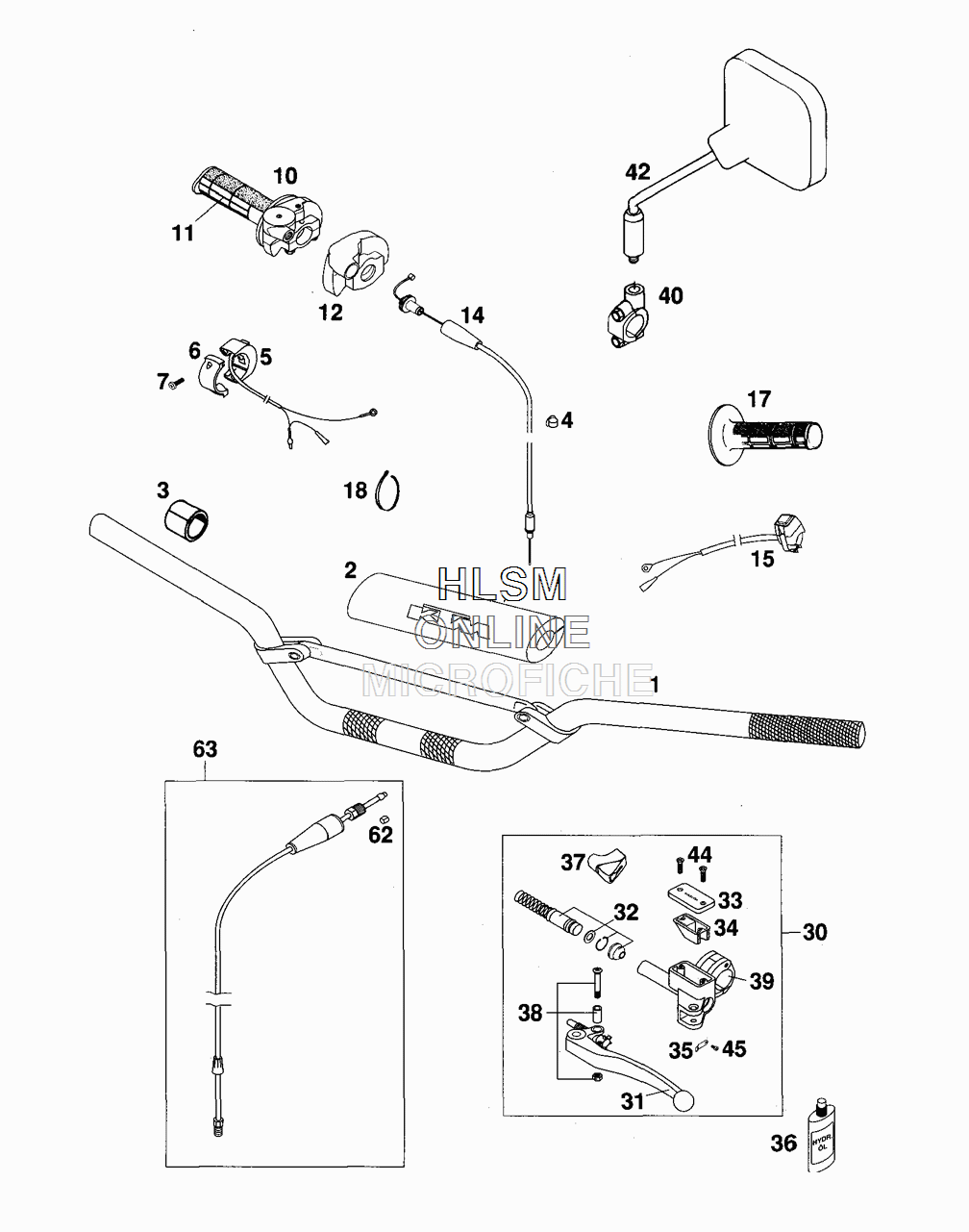

HANDLEBAR W/ CONTROLS для Ktm 300 EXC - 2000 года выпуска`
-
№АртикулНазвание
-
150202001000 ALU-HANDLEBARALU-HANDLEBAR
-
250302002000 HANDLEBAR PED "KTM"HANDLEBAR PED "KTM"
-
350202010000 SPACER BUSHING 22X28X22PVCSPACER BUSHING 22X28X22PVC
-
457013072000 WIRING HOLDER 12MM 0210WIRING HOLDER 12MM 0210
-
550311074000 ENGINE STOP SWITCH CEVENGINE STOP SWITCH CEV
-
650311074050 CLAMP ENGINE STOP SWITCHCLAMP ENGINE STOP SWITCH
-
70985040153 FLAT HEAD SCREW DIN7985-M 4X15FLAT HEAD SCREW DIN7985-M 4X15
-
1050302010000 THROTTLE TWIST GRIP CPL.THROTTLE TWIST GRIP CPL.
-
1150202003000 TWIST GRIP COVER (DOMINO BLACK)TWIST GRIP COVER (DOMINO BLACK)
-
1250302020000 PROTECTION COVERPROTECTION COVER
-
1450302091000 THROTTLE CABLE (DOMINO)THROTTLE CABLE (DOMINO)
-
1550311089000 SHORT CISCUIT BUTTONSHORT CISCUIT BUTTON
-
1750202052000 FIXED GRIP DOMINO BLACKFIXED GRIP DOMINO BLACK
-
1844011276200 CABLE TIE 200 X 5MM T50 (RIGHT)CABLE TIE 200 X 5MM T50 (RIGHT)
-
3050302030100 MASTER CYL. CPL. (ZINKCOATED)MASTER CYL. CPL. (ZINKCOATED)
-
3150302031100 CLU.LEVER SHORE CPL. 2TCLU.LEVER SHORE CPL. 2T
-
3150302031000 CLUTCH LEVER CPL.CLUTCH LEVER CPL.
-
3250302032000 REP.SATZ PISTON CLUT.HYDR.REP.SATZ PISTON CLUT.HYDR.
-
3350302033100 COVER HYD.CLUTCH 2T 2000 (ZINKCOATED_COVER HYD.CLUTCH 2T 2000 (ZINKCOATED_
-
3450302034000 RUBBER FOR RESERVOIRRUBBER FOR RESERVOIR
-
3550302035000 SPRING PLATE FOR LEVERSPRING PLATE FOR LEVER
-
3650302036000 OIL HYDR.CLUTCH 50ML SHELL HFOIL HYDR.CLUTCH 50ML SHELL HF
-
3750302037000 PROTECT.CAP FOR LEVER PERCHPROTECT.CAP FOR LEVER PERCH
-
3850302038000 LEVER SCREW CPL.LEVER SCREW CPL.
-
3950302030150 CLAMP WITH PIN 2000 (ZINKCOATED)CLAMP WITH PIN 2000 (ZINKCOATED)
-
4050312042000 MIRROR CLAMP L/S M10X1,25 (LEFT)MIRROR CLAMP L/S M10X1,25 (LEFT)
-
4258012040000 REAR MIRROR (LEFT)REAR MIRROR (LEFT)
-
4258012140000 REAR MIRROR (RIGHT)REAR MIRROR (RIGHT)
-
440965040123 FLAT HEAD SCREW DIN0965-M 4X12FLAT HEAD SCREW DIN0965-M 4X12
-
450984030063 AH SCREW DIN7984-M 3X 6AH SCREW DIN7984-M 3X 6
-
6250332063050 SELF CUTTING RING HYDR.PIPESELF CUTTING RING HYDR.PIPE
-
6354732063000 PIPE KIT KPL. WITH CONNECTIONSPIPE KIT KPL. WITH CONNECTIONS
