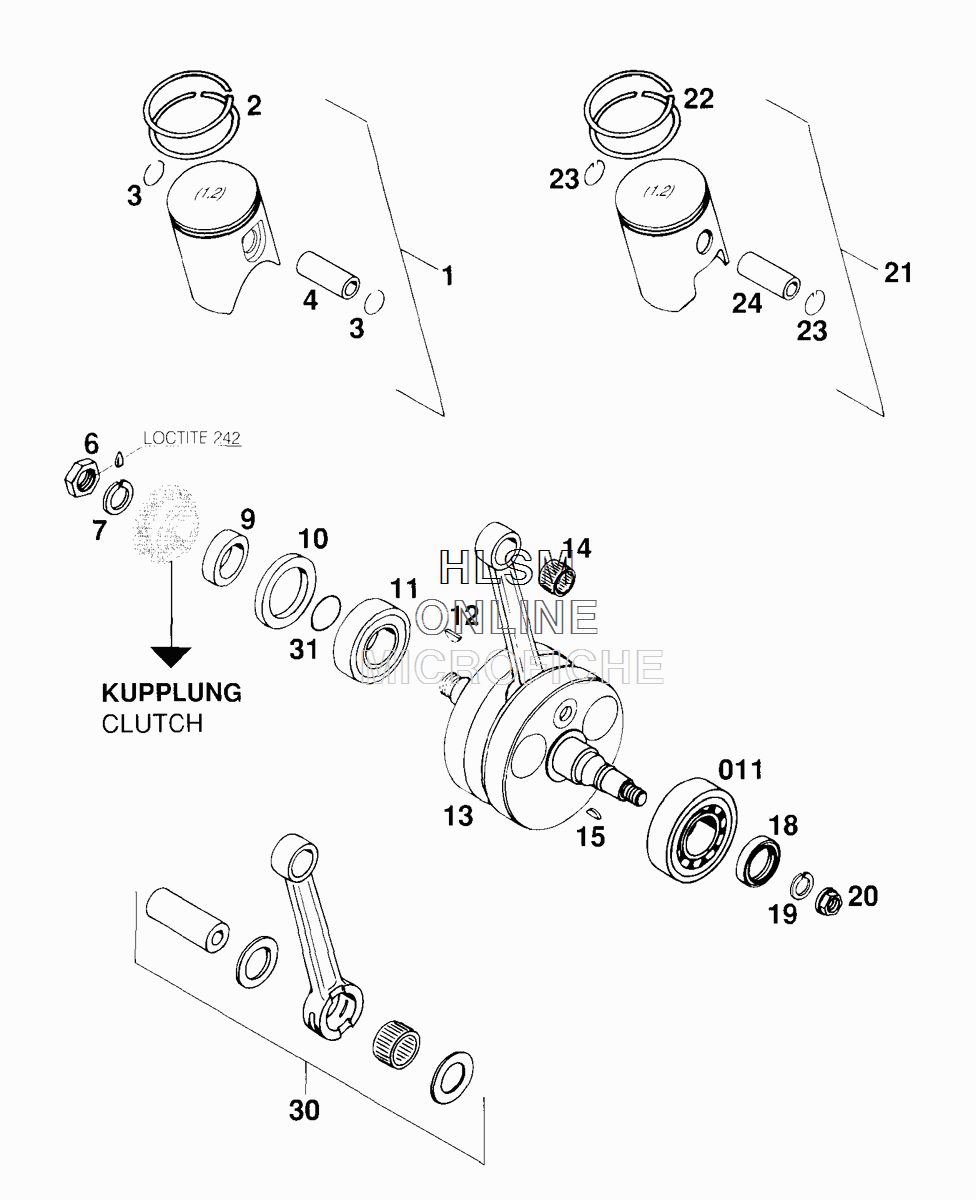

CRANKSHAFT W/ PISTON для Ktm 300 EXC - 2000 года выпуска

  • №
    Артикул
    Название
  • 2
    54630232000 SQUARE RING 66,4MM
    SQUARE RING 66,4MM
  • 2
    54730032000 SQUARE R. 78,0X1,25 360/380 CC
    SQUARE R. 78,0X1,25 360/380 CC
  • 3
    54030074000 WIRE LOCK RING C18X1,5
    WIRE LOCK RING C18X1,5
  • 6
    54630029000 HEX.NUT L/SH M18X1,5
    HEX.NUT L/SH M18X1,5
  • 7
    58132072000 LOCK WASHER VSK 18
    LOCK WASHER VSK 18
  • 9
    54630016400 SPACER SLEEVE 28X38X11,5
    SPACER SLEEVE 28X38X11,5
  • 10
    0760385273 SHAFT SEAL RING 38X52X7BTSL
    SHAFT SEAL RING 38X52X7BTSL
  • 11
    0625622064 BALL BEARING 62206.803107
    BALL BEARING 62206.803107
  • 011
    56530123100 CYLIND.ROLLER BEARING NJ207NSK
    CYLIND.ROLLER BEARING NJ207NSK
  • 12
    6946005 WOODRUFF KEY 5X6,5 HARDED
    WOODRUFF KEY 5X6,5 HARDED
  • 13
    54630218000 CRANKSHAFT STROKE72
    CRANKSHAFT STROKE72
  • 13
    54630318400 CRANKSHAFT STROKE 73 "300"
    CRANKSHAFT STROKE 73 "300"
  • 14
    54430034000 NEEDLE BEARING KBK 18X22X20
    NEEDLE BEARING KBK 18X22X20
  • 15
    0888030050 WOODRUFF KEY DIN6888-3X5X13
    WOODRUFF KEY DIN6888-3X5X13
  • 18
    0760253570 SHAFT SEAL RING 25X35X7 BTSL
    SHAFT SEAL RING 25X35X7 BTSL
  • 19
    50230029012 LOCKING RING VSK 12
    LOCKING RING VSK 12
  • 20
    49030021000 COLLAR NUT M12X1 (RIGHT)
    COLLAR NUT M12X1 (RIGHT)
  • 21
    54630307400I PISTON 1 CPL. 72,0MM
    PISTON 1 CPL. 72,0MM
  • 21
    54630307400II PISTON 11 CPL. 72,0MM
    PISTON 11 CPL. 72,0MM
  • 22
    54630332000 SQUARE RING 72,0X1,25 300 CC
    SQUARE RING 72,0X1,25 300 CC
  • 23
    54330074000 WIRE LOCK RING SKA 18
    WIRE LOCK RING SKA 18
  • 24
    54630033000 PISTON PIN 18 X 44
    PISTON PIN 18 X 44
  • 30
    54630015044 CONR.REPKIT 250/300 132MM
    CONR.REPKIT 250/300 132MM
  • 31
    0770250015 O-RING 25,00X1,50 NBR 70
    O-RING 25,00X1,50 NBR 70
