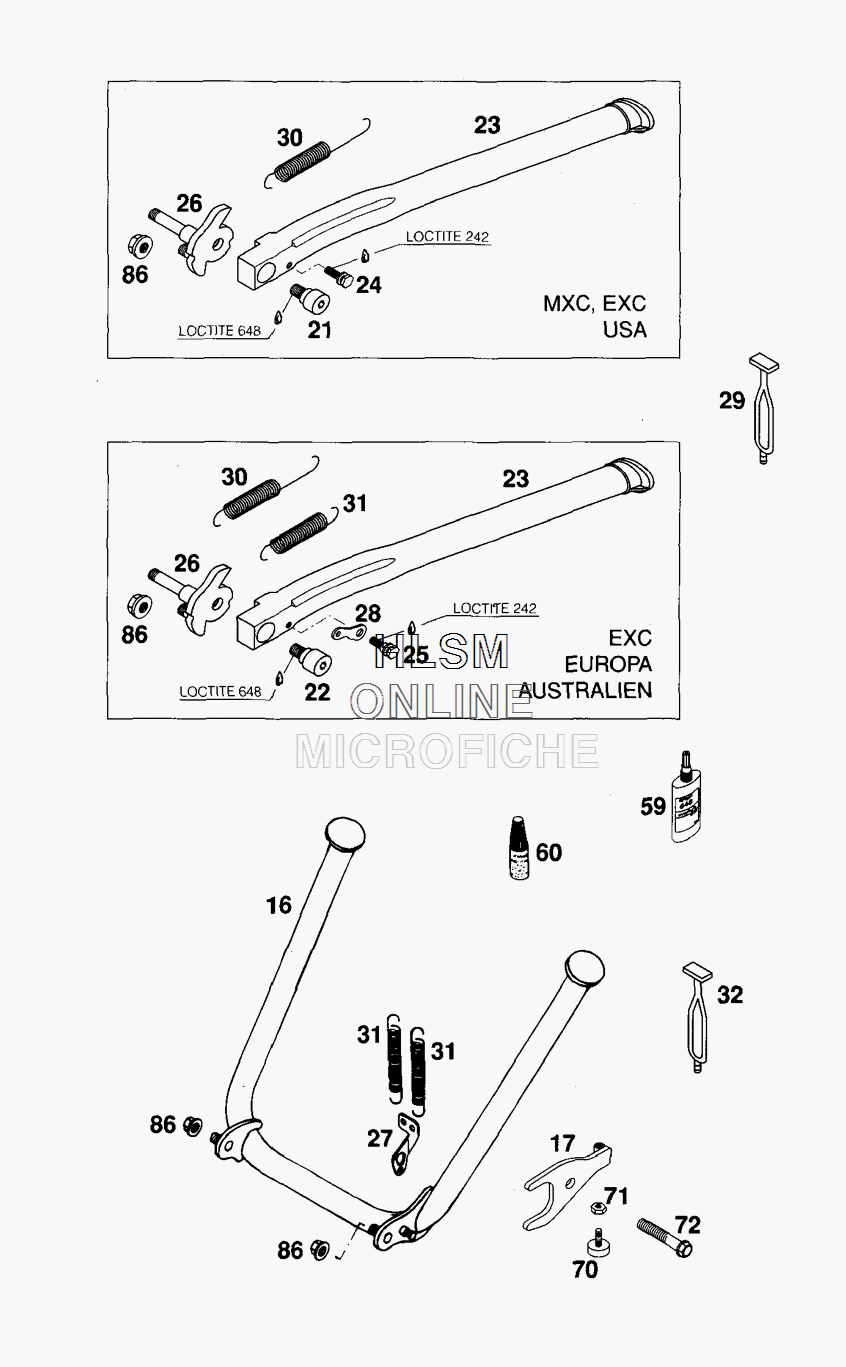

SIDE AND CENTER STAND для Ktm 200 MXC - 2000 года выпуска`
-
№АртикулНазвание
-
1650303016000 CENTERSTAND L=438MM 2STROKECENTERSTAND L=438MM 2STROKE
-
1750303017000 BRACKET FOR CENTER STANDBRACKET FOR CENTER STAND
-
2350303023000 SIDE STAND L=377MMSIDE STAND L=377MM
-
2650303026000 SIDE ST.BRACKET CPLSIDE ST.BRACKET CPL
-
2754603027000 SPRING HANGERSPRING HANGER
-
2850303023054 BRACKET FOR SPRING EGSBRACKET FOR SPRING EGS
-
2950303025000 RUBBER FOR SIDE STANDRUBBER FOR SIDE STAND
-
3110003021000 STAND SPRING SHORTSTAND SPRING SHORT
-
3250303018000 RUBBER FOR CENTER STANDRUBBER FOR CENTER STAND
-
5958429059000 LOCTITE 648 20ML (GREEN)LOCTITE 648 20ML (GREEN)
-
606899785 LOCTITE 242 6CCM (BLUE)LOCTITE 242 6CCM (BLUE)
-
7058303070000 STOP RUBBER M8STOP RUBBER M8
-
710934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
-
720015080403 HH COLLAR SCREW M 8X40 WS=10HH COLLAR SCREW M 8X40 WS=10
-
8654310086000 SELF LOCKING NUT M8SELF LOCKING NUT M8
