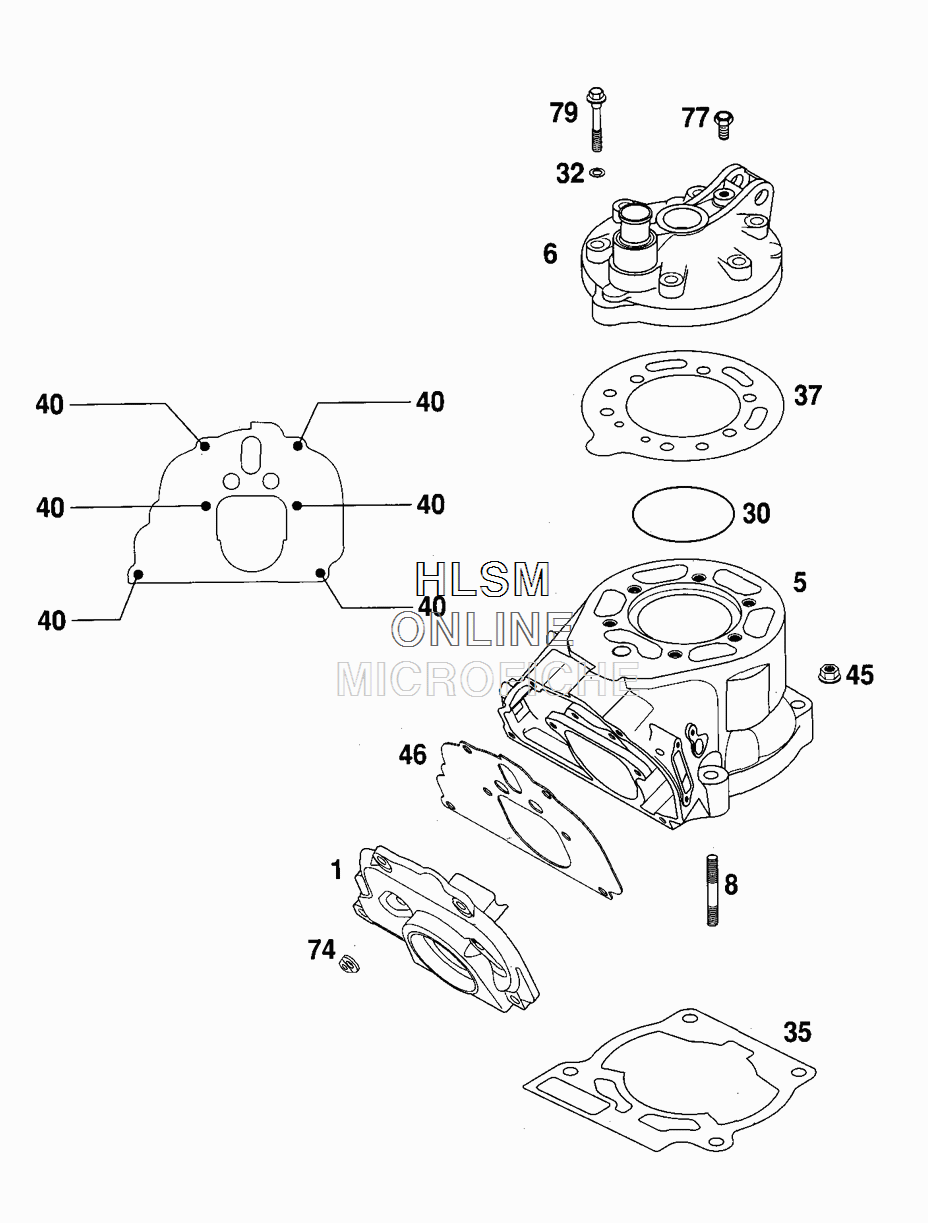

CYLINDER для Ktm 200 MXC - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    52337001200 INTERMEDIATE FLANGE
    INTERMEDIATE FLANGE
  • 5
    52330005100 CYLINDER 64MM
    CYLINDER 64MM
  • 6
    52330006000 CYLINDER HEAD
    CYLINDER HEAD
  • 8
    0835080355 STUD DIN0835-M 8X35 10.9
    STUD DIN0835-M 8X35 10.9
  • 30
    0770720021 O-RING 72,00X2,00 VITON
    O-RING 72,00X2,00 VITON
  • 32
    50230032010 CU SEAL RING 7,3 X 12 X 0,5
    CU SEAL RING 7,3 X 12 X 0,5
  • 35
    50330035007 CYL.BASE GASKET 0,07MM PAPER
    CYL.BASE GASKET 0,07MM PAPER
  • 35
    50330035015 CYLINDER BASE GASKET 0,15MM
    CYLINDER BASE GASKET 0,15MM
  • 35
    50330035020 CYLINDER BASE GASKET 0,20MM
    CYLINDER BASE GASKET 0,20MM
  • 35
    50330035025 CYLINDER BASE GASKET 0,25MM
    CYLINDER BASE GASKET 0,25MM
  • 35
    50330035040 CYLINDER BASE GASKET 0,40MM
    CYLINDER BASE GASKET 0,40MM
  • 35
    50330035050 CYLINDER BASE GASKET 0,50MM
    CYLINDER BASE GASKET 0,50MM
  • 35
    50330035075 CYLINDER BASE GASKET 0,75MM
    CYLINDER BASE GASKET 0,75MM
  • 37
    52330037000 CYL.HEAD GASKET 1,1MM
    CYL.HEAD GASKET 1,1MM
  • 40
    0015050203 HH COLLAR SCREW M 5X20 WS=8
    HH COLLAR SCREW M 5X20 WS=8
  • 45
    50330045000 HH COLLAR NUT M8 WS=12
    HH COLLAR NUT M8 WS=12
  • 46
    52337046100 INTERMED.GASKET 1,1MM
    INTERMED.GASKET 1,1MM
  • 46
    52337046000 INTERMED.GASKET 1,15MM
    INTERMED.GASKET 1,15MM
  • 74
    51005074000 RETAINING PLATE
    RETAINING PLATE
  • 77
    0933060103 HH SCREW DIN0933-M 6X10
    HH SCREW DIN0933-M 6X10
  • 79
    50030079000 CYL. HEAD BOLT M7X40 WS=10
    CYL. HEAD BOLT M7X40 WS=10
