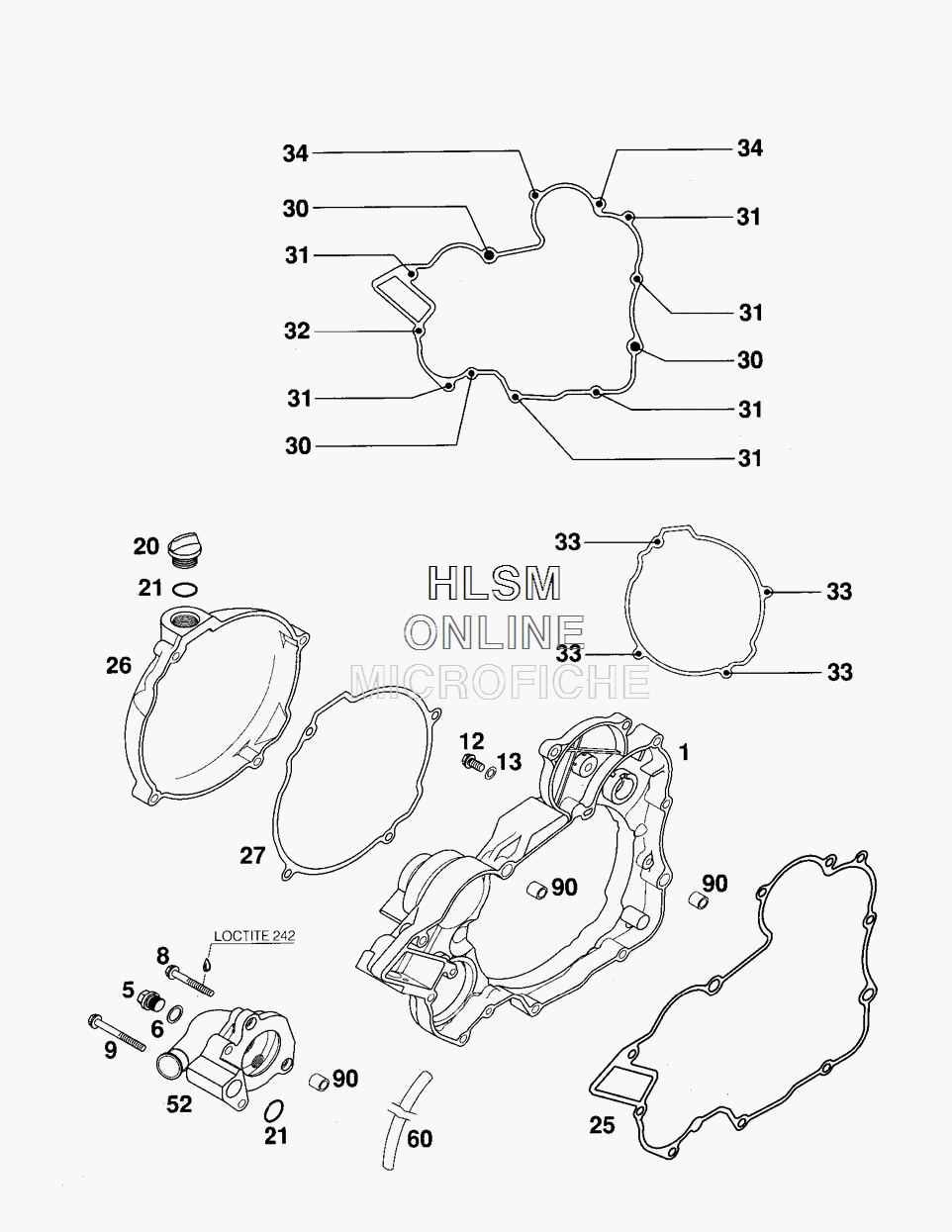

CLUTCH COVER WITH OIL PUMP для Ktm 200 MXC - 2000 года выпуска`

№

Артикул

Название
1

52330101044 CLUTCH COVER CPL. W/ OIL PUMP

CLUTCH COVER CPL. W/ OIL PUMP

0 ₽
5

0910100003 PLUG DIN0910-M10X1

PLUG DIN0910-M10X1

790 ₽
6

42013226000 CU-SEAL RING DIN7603-10X1 6X1

CU-SEAL RING DIN7603-10X1 6X1

440 ₽
8

0015060353 HH COLLAR SCREW M 6X35 WS=8

HH COLLAR SCREW M 6X35 WS=8

560 ₽
9

0015060503 HH COLLAR SCREW M 6X50 WS=8

HH COLLAR SCREW M 6X50 WS=8

640 ₽
12

0015060123 HH COLLAR SCREW M 6X12 WS=8

HH COLLAR SCREW M 6X12 WS=8

500 ₽
13

0603061001 CU-SEAL RING DIN7603- 6X10X1

CU-SEAL RING DIN7603- 6X10X1

320 ₽
20

58030020000 PLUG M24 X 3

PLUG M24 X 3

1 080 ₽
21

0770160030 O-RING 16,00X3,00 NBR 70

O-RING 16,00X3,00 NBR 70

470 ₽
25

50330125000 CLUTCH COVER GASKET 0,5MM (FOR OIL PUMP)

CLUTCH COVER GASKET 0,5MM (FOR OIL PUMP)

2 800 ₽
26

50330026000 CLUTCH OUTSIDE COVER

CLUTCH OUTSIDE COVER

0 ₽
27

50330027000 CLUTCH OUTS.COVER GASKET 1MM

CLUTCH OUTS.COVER GASKET 1MM

3 770 ₽
30

0015060403 HH COLLAR SCREW M 6X40 WS=8

HH COLLAR SCREW M 6X40 WS=8

500 ₽
31

0015060353 HH COLLAR SCREW M 6X35 WS=8

HH COLLAR SCREW M 6X35 WS=8

560 ₽
32

0015060553 HH COLLAR SCREW M 6X55 WS=8

HH COLLAR SCREW M 6X55 WS=8

470 ₽
33

0015060253 HH COLLAR SCREW M 6X25 WS=8

HH COLLAR SCREW M 6X25 WS=8

560 ₽
34

0015060653 HH COLLAR SCREW M 6X65 WS=8

HH COLLAR SCREW M 6X65 WS=8

320 ₽
52

50335052000 WATER PUMP COVER

WATER PUMP COVER

22 660 ₽
60

50332095001 TUBE VINNYLAN 6X8,2 (BLACK)

TUBE VINNYLAN 6X8,2 (BLACK)

0 ₽
90

49030090000 DOWEL 9,8 X 7 X 10

DOWEL 9,8 X 7 X 10

290 ₽
