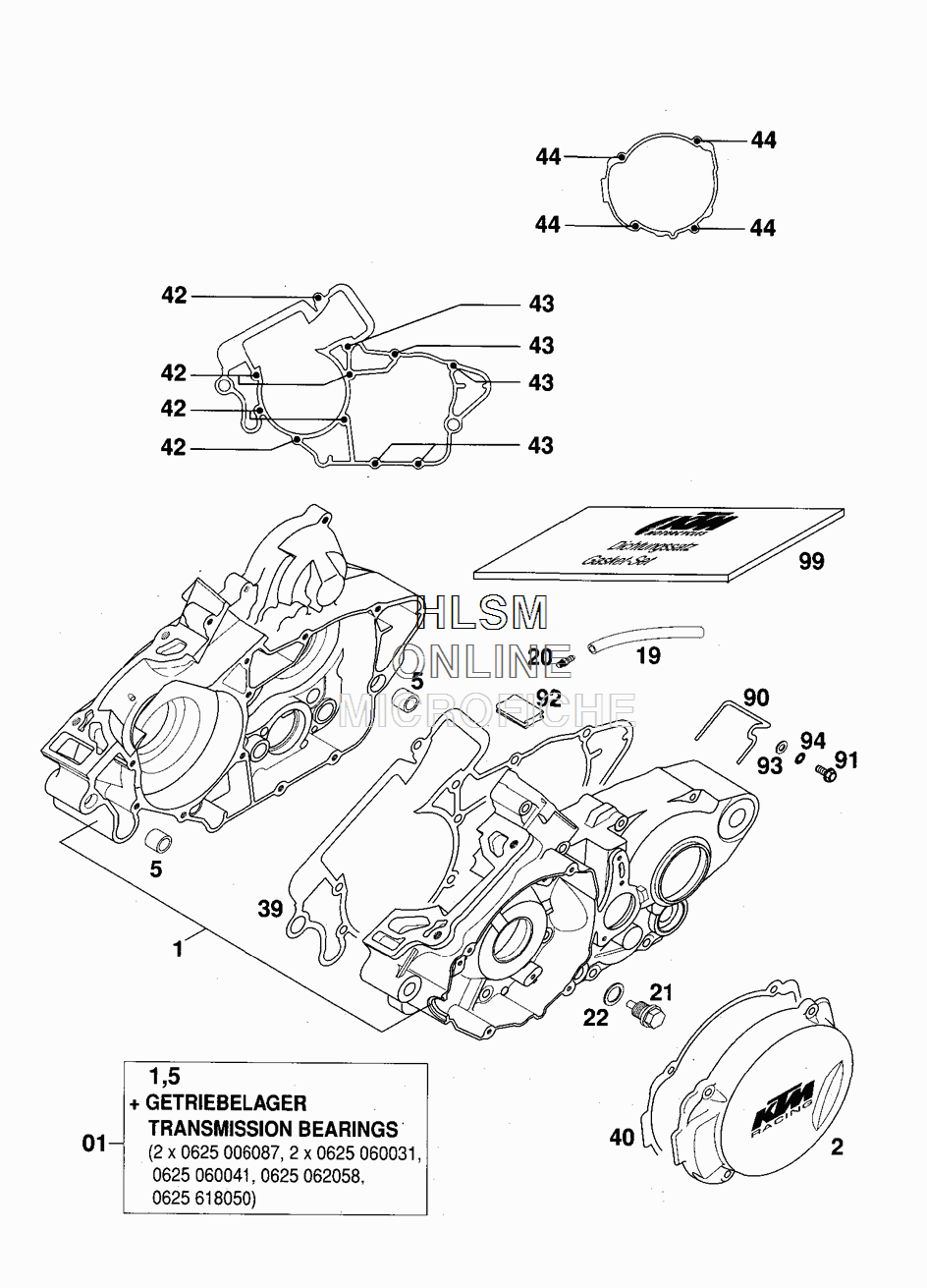

ENGINE CASE для Ktm 200 EXC - 2000 года выпуска`
-
№АртикулНазвание
-
0150330000044 ENGINE CASE CPL.W TRAN.BEARENGINE CASE CPL.W TRAN.BEAR
-
0152330000044 ENGINE CASE CPL.W TRAN.BEARENGINE CASE CPL.W TRAN.BEAR
-
250330002000 IGNITION COVERIGNITION COVER
-
554630027000 DOWEL BUSHING 13,8X11X12DOWEL BUSHING 13,8X11X12
-
1955007016001 PVC-HOSE 7X10 PER METERPVC-HOSE 7X10 PER METER
-
2058336020090 VACUUM CONNECTION M6X1VACUUM CONNECTION M6X1
-
2158030021000 OILDRAIN PLUG W.MAGNET M12X1,5OILDRAIN PLUG W.MAGNET M12X1,5
-
2258038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
3950330039000 ENGINE CASE GASKET 0,5MMENGINE CASE GASKET 0,5MM
-
4050330040000 IGNITION COVER GASKET 1MMIGNITION COVER GASKET 1MM
-
420015060503 HH COLLAR SCREW M 6X50 WS=8HH COLLAR SCREW M 6X50 WS=8
-
430015060553 HH COLLAR SCREW M 6X55 WS=8HH COLLAR SCREW M 6X55 WS=8
-
440015050203 HH COLLAR SCREW M 5X20 WS=8HH COLLAR SCREW M 5X20 WS=8
-
9050330090000 BRACKET FOR BREATHERTUBEBRACKET FOR BREATHERTUBE
-
910015050123 HH COLLAR SCREW M 5X12 WS=8HH COLLAR SCREW M 5X12 WS=8
-
9250330092000 OIL GUARD GROMMET 25X31OIL GUARD GROMMET 25X31
-
930125050003 WASHER DIN0125-A 5,0WASHER DIN0125-A 5,0
-
940797050003 TOOTH LOCK WASH. DIN6797-J 5,3TOOTH LOCK WASH. DIN6797-J 5,3
-
9950330099000 GASKET SETGASKET SET
