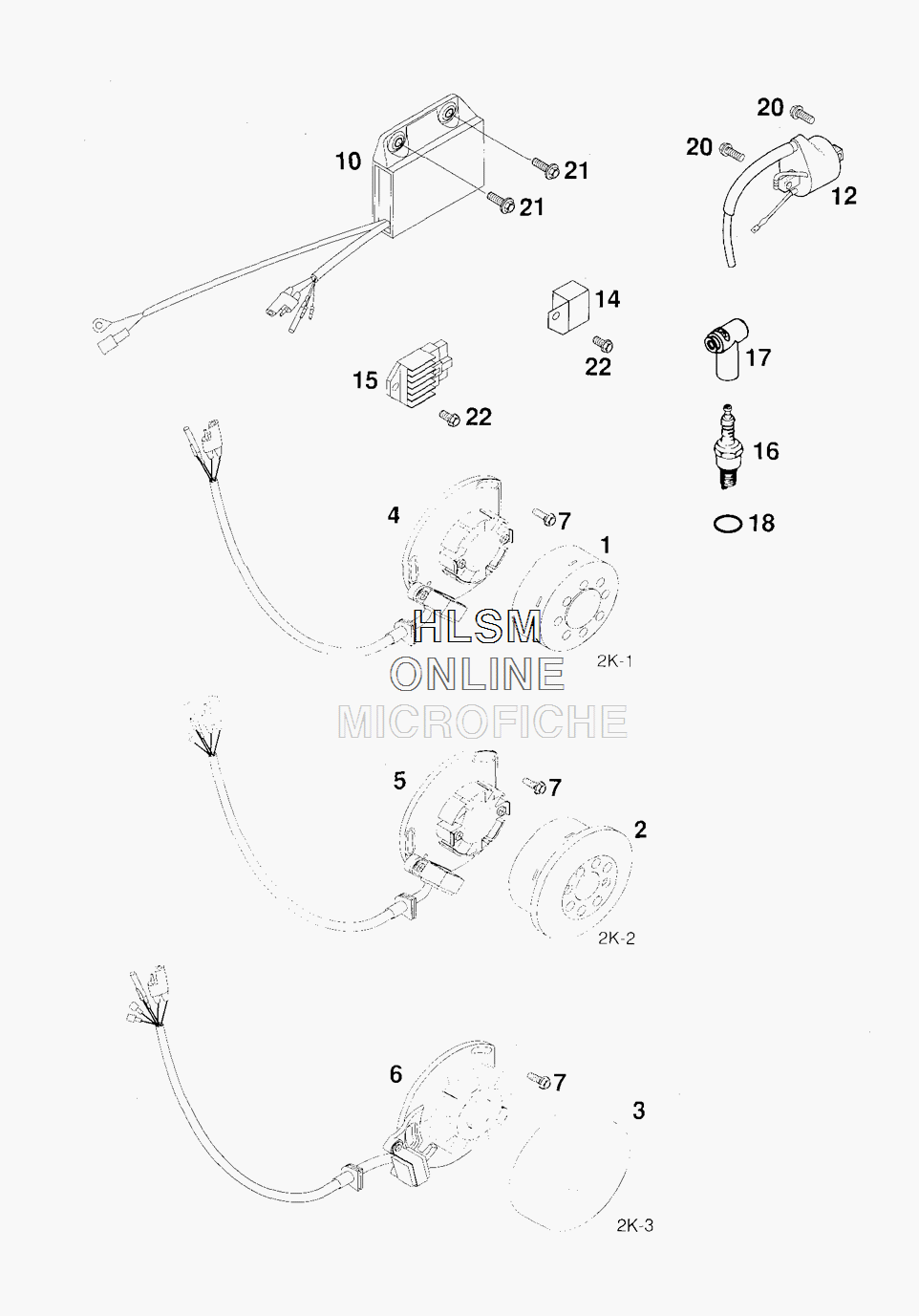

IGNITION SYSTEM (KOKUSAN) для Ktm 200 EXC - 2000 года выпуска

  • №
    Артикул
    Название
  • 3
    50339005200 FLYWHEEL KOKUSAN 2K-3
    FLYWHEEL KOKUSAN 2K-3
  • 6
    50339004200 STATOR KOKUSAN 2K-3
    STATOR KOKUSAN 2K-3
  • 7
    0015050163 HH COLLAR SCREW M 5X16 WS=8
    HH COLLAR SCREW M 5X16 WS=8
  • 10
    52339031300 ELECTRIC BOX CU7434 (KOKUSAN
    ELECTRIC BOX CU7434 (KOKUSAN
  • 12
    50339006000 IGNITION COIL KOKU.
    IGNITION COIL KOKU.
  • 15
    50311034000 VOLTAGE REGULA. 12V
    VOLTAGE REGULA. 12V
  • 16
    50339093100 SPARK PLUG NGK BR 9EVX
    SPARK PLUG NGK BR 9EVX
  • 16
    54331093310 SPARK PLUG NGK BR8EG
    SPARK PLUG NGK BR8EG
  • 17
    54531010000 SPARK PLUG CAP LB05EMH NGK
    SPARK PLUG CAP LB05EMH NGK
  • 18
    0770150040 O-RING 15,00X4,00 NBR 70
    O-RING 15,00X4,00 NBR 70
  • 20
    0015060163 HH COLLAR SCREW M 6X16 WS=8
    HH COLLAR SCREW M 6X16 WS=8
  • 21
    0014060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 22
    0015060123 HH COLLAR SCREW M 6X12 WS=8
    HH COLLAR SCREW M 6X12 WS=8
