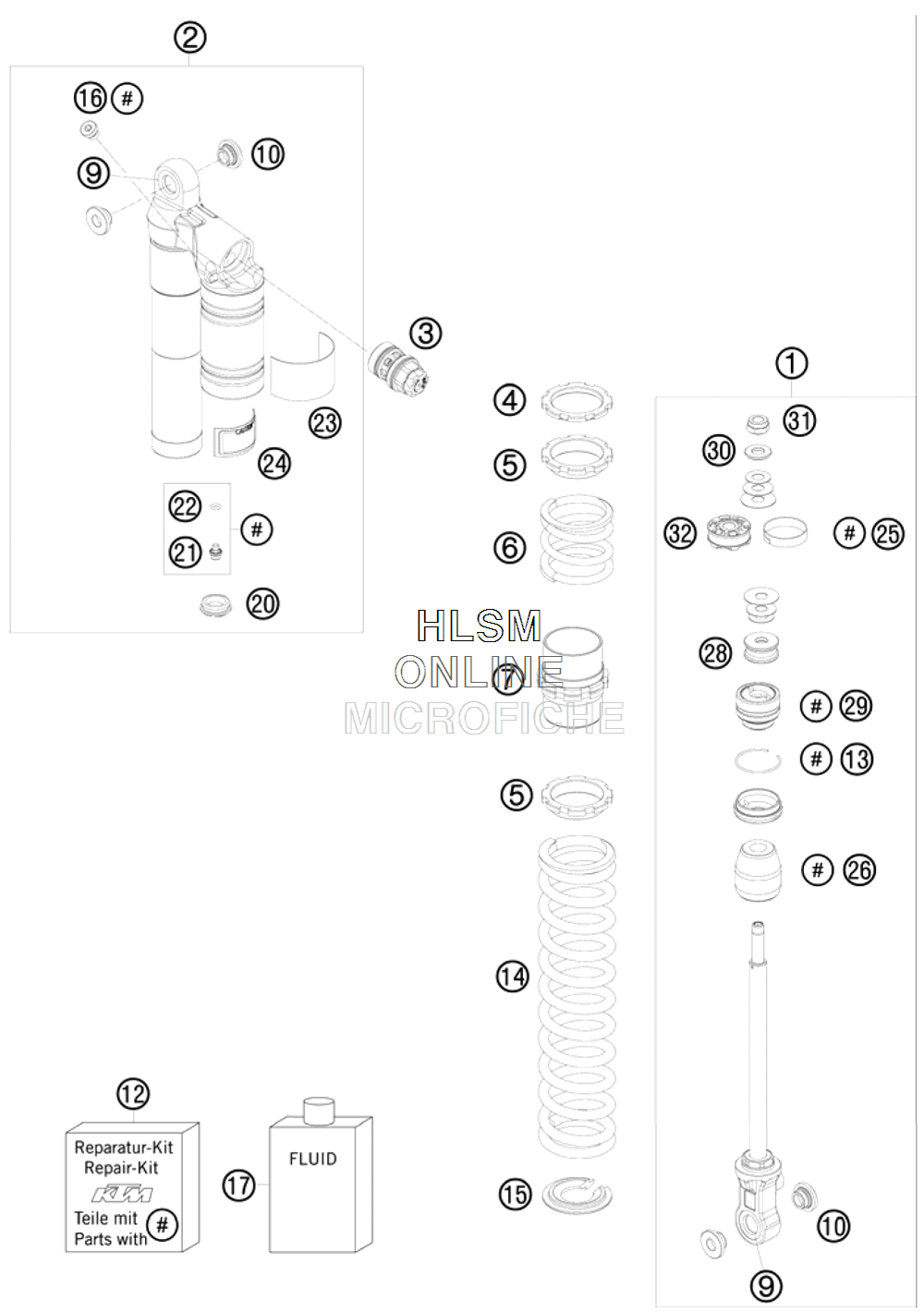

SHOCK ABS. FRONT DISASSEMBLED для Ktm 450 SX ATV - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    36120781SA2 MONOSHOCK LOWER PART
    MONOSHOCK LOWER PART
  • 2
    36120811SA MONOSHOCK TOP PART
    MONOSHOCK TOP PART
  • 3
    50180213S6 DCC-COMPR.DAMP.CONTROL CPL.
    DCC-COMPR.DAMP.CONTROL CPL.
  • 4
    36120015 COUNTERNUT
    COUNTERNUT
  • 5
    36120815 ADJUSTING NUT M44X1,5 (51) 40-60
    ADJUSTING NUT M44X1,5 (51) 40-60
  • 6
    93010188 D6.5 ORANGE
    D6.5 ORANGE
  • 7
    36120814S THREAD BUSHING L70LM48X1 CPL.
    THREAD BUSHING L70LM48X1 CPL.
  • 9
    R15009 BEARING KIT KGW 1525 990 DUKE
    BEARING KIT KGW 1525 990 DUKE
  • 10
    46180010 BUSH KGW 10X24
    BUSH KGW 10X24
  • 12
    R308 REPAIR-KIT
    REPAIR-KIT
  • 13
    40540015 CIRCLIP 38X1,5
    CIRCLIP 38X1,5
  • 14
    93020035S SPRING 24-29-275 D8,5
    SPRING 24-29-275 D8,5
  • 14
    93020036S SPRING 21-26-275 D8,5
    SPRING 21-26-275 D8,5
  • 14
    93020037S SPRING 27-32-275
    SPRING 27-32-275
  • 15
    36120816 SPRING GUIDE OPEN B15B D50
    SPRING GUIDE OPEN B15B D50
  • 16
    50180095 BLEED PLUG R 1/8
    BLEED PLUG R 1/8
  • 17
    50180342 SHOCK ABSORBER FLUID SAF 1579A
    SHOCK ABSORBER FLUID SAF 1579A
  • 20
    46811208 RUBBER CAP "DO NOT OPEN"
    RUBBER CAP "DO NOT OPEN"
  • 21
    36120151 SCREW PLUG M5X6
    SCREW PLUG M5X6
  • 22
    46810893 O-RING NBR 5,28X1,78
    O-RING NBR 5,28X1,78
  • 23
    52000086 STICKER WP CAUTION 27X55
    STICKER WP CAUTION 27X55
  • 24
    52000012 STICKER WP "CAUTION" 27X55
    STICKER WP "CAUTION" 27X55
  • 25
    36120040 PISTON RING 8X1X108,3
    PISTON RING 8X1X108,3
  • 26
    36120799 BUMP RUBBER
    BUMP RUBBER
  • 28
    36120786 REBOUND DISC H=10 D=28,5
    REBOUND DISC H=10 D=28,5
  • 29
    36120787S ADAPTOR 36MM H26,6 CPL.
    ADAPTOR 36MM H26,6 CPL.
  • 30
    36120604 SHIM D10XD22X2,5
    SHIM D10XD22X2,5
  • 31
    36120052 PISTON ROD NUT M10X1
    PISTON ROD NUT M10X1
  • 32
    36120071 PISTON 6+6XD5.5/3.5
    PISTON 6+6XD5.5/3.5
