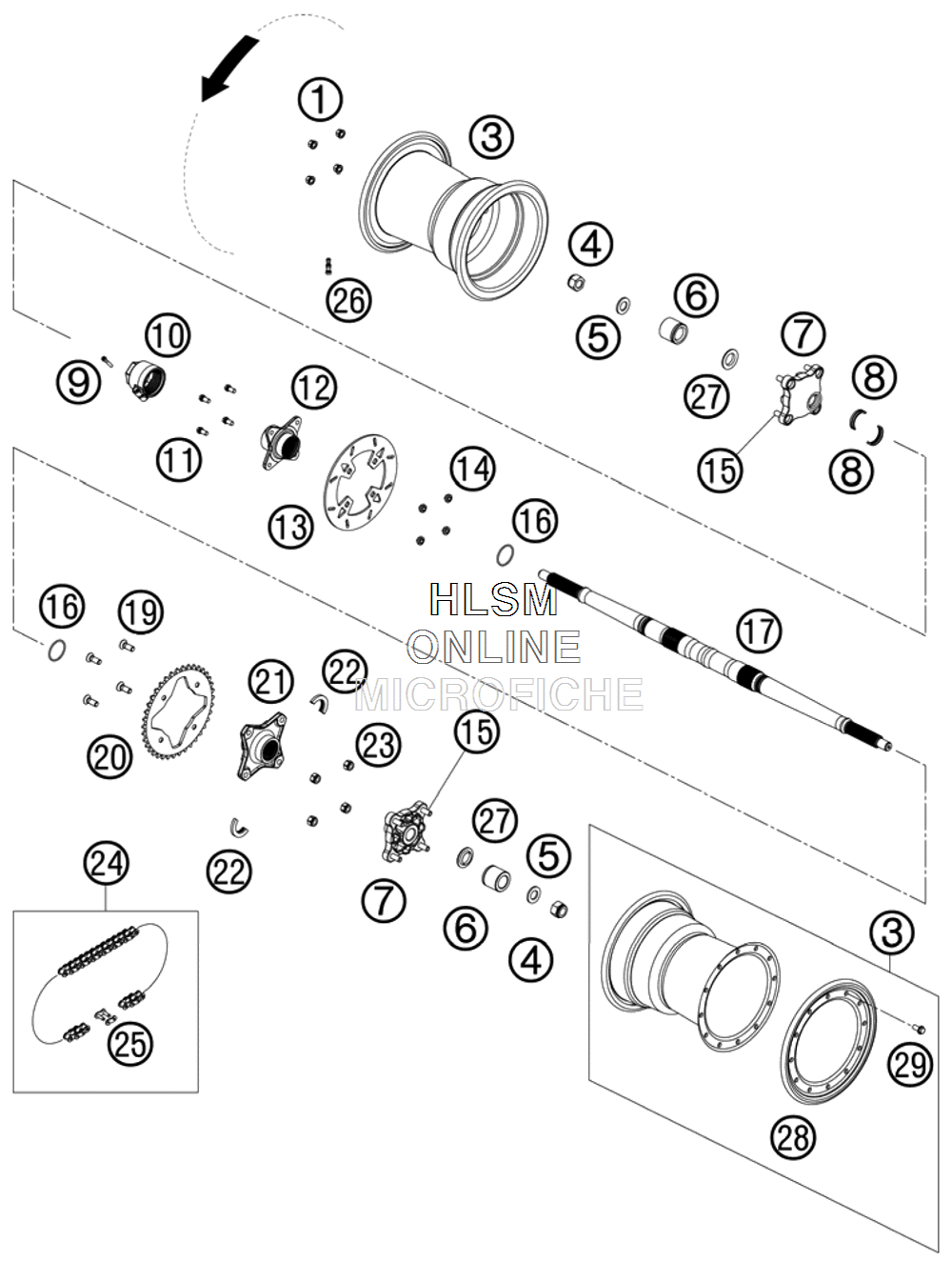

REAR WHEEL для Ktm 450 SX ATV - 2010 года выпуска

№

Артикул

Название
1

58414030000 HH COLLAR NUT M10X1,25

HH COLLAR NUT M10X1,25

350 ₽
3

83510070000 RIM REAR SX

RIM REAR SX

111 500 ₽
4

0985181503 SELF LOCK.NUT DIN0985-M18X1,5

SELF LOCK.NUT DIN0985-M18X1,5

560 ₽
5

83010021000 TENSIONER RAIL DIN6796 D=19

TENSIONER RAIL DIN6796 D=19

820 ₽
6

83010013000 SPACER BUSHING

SPACER BUSHING

4 790 ₽
7

83010069044 REAR WHEEL HUB CPL.

REAR WHEEL HUB CPL.

23 770 ₽
8

83510063000 CIRCLIP REAR AXLE

CIRCLIP REAR AXLE

4 730 ₽
9

0912060303 AH SCREW DIN0912-M 6X30

AH SCREW DIN0912-M 6X30

410 ₽
10

83010064000 TENSION NUT

TENSION NUT

7 330 ₽
11

0025080166S HH COLLAR SCREW M8X16

HH COLLAR SCREW M8X16

500 ₽
12

83010062000 BRAKE DISK SUPPORT

BRAKE DISK SUPPORT

34 550 ₽
13

83010060000 BRAKE DISK REAR D=200 MM

BRAKE DISK REAR D=200 MM

30 840 ₽
14

83010060050 SPECIAL NUT BRAKE DISK FIXING

SPECIAL NUT BRAKE DISK FIXING

1 050 ₽
15

83009016000 WHEELBOLT

WHEELBOLT

6 900 ₽
16

0770039026 O-RING 39,34X2,62 NBR 70 SH

O-RING 39,34X2,62 NBR 70 SH

320 ₽
17

83510016000 REAR AXLE SX

REAR AXLE SX

170 ₽
19

60003004027 FL.HEAD SCREW M10X1,25 L=27

FL.HEAD SCREW M10X1,25 L=27

820 ₽
20

83010051038 SPROCKET 38T

SPROCKET 38T

17 250 ₽
21

83010050000 SPROCKET SUPPORT

SPROCKET SUPPORT

34 760 ₽
22

83510063100 CIRCLIP REAR AXLE SPROCKET

CIRCLIP REAR AXLE SPROCKET

4 790 ₽
23

0982101253 SELF LOCK.NUT M10X1,25

SELF LOCK.NUT M10X1,25

290 ₽
24

50310165118 CHAIN 5/8X1/4" MX

CHAIN 5/8X1/4" MX

19 740 ₽
25

50310166000 CONNECTING LINK F. 50310165118

CONNECTING LINK F. 50310165118

1 890 ₽
26

83009076000 VALVE

VALVE

1 080 ₽
27

83010014000 CONUSRING REAR AXLE

CONUSRING REAR AXLE

3 660 ₽
28*

83510090000 RIM LOCK REAR ATV SX

RIM LOCK REAR ATV SX

42 320 ₽
29*

0025060206 HH COLLAR SCREW M6X20

HH COLLAR SCREW M6X20

500 ₽
