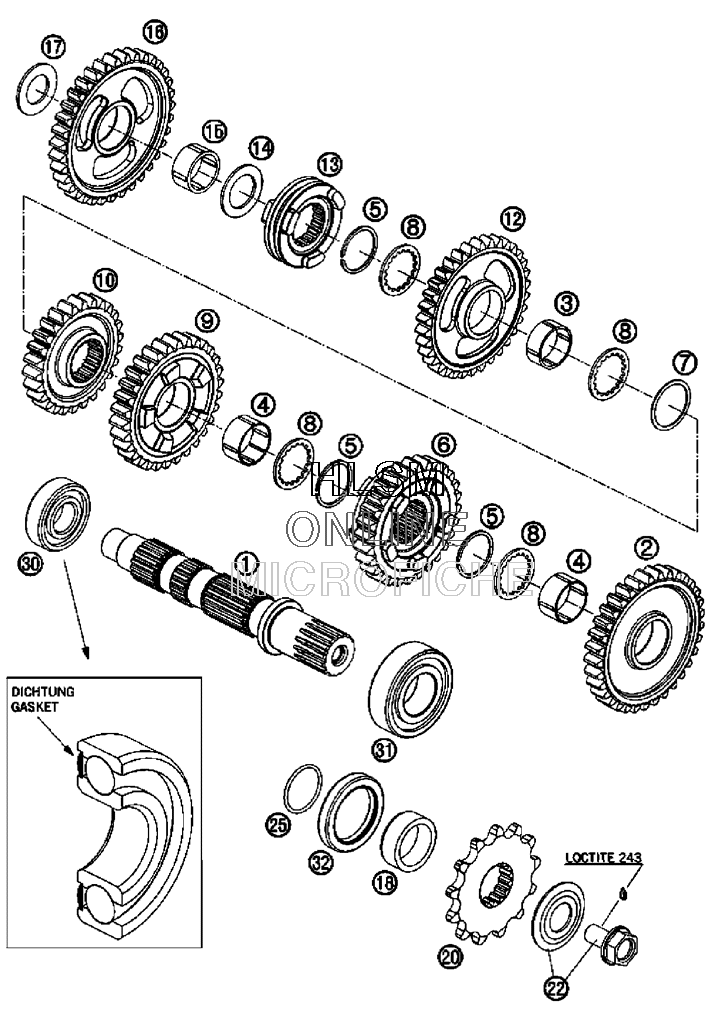

TRANSMISSION - COUNTERSHAFT для Ktm 525 XC - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    83133010000 COUNTERSHAFT
    COUNTERSHAFT
  • 2
    83033012000 IDLER GEAR 2.G. 33T
    IDLER GEAR 2.G. 33T
  • 3
    83033042000 NEEDLE BEAR. 22X26X10 SLOTTED
    NEEDLE BEAR. 22X26X10 SLOTTED
  • 4
    83033041000 NEEDLE BEAR. 22X26X13 SLOTTED
    NEEDLE BEAR. 22X26X13 SLOTTED
  • 5
    0417025000 CIRCLIP SW25
    CIRCLIP SW25
  • 6
    83033014000 SLIDING GEAR 4. G. 28T
    SLIDING GEAR 4. G. 28T
  • 7
    83033032000 DISTANCE DISK 25X30X0,2
    DISTANCE DISK 25X30X0,2
  • 7
    83033033000 DISTANCE DISK 25X30X0,3
    DISTANCE DISK 25X30X0,3
  • 8
    83033022000 STOP DISK 22,6X30X1,5 18T
    STOP DISK 22,6X30X1,5 18T
  • 9
    83033013000 IDLER GEAR 3.G. 30T
    IDLER GEAR 3.G. 30T
  • 10
    83033015100 SOLID GEAR 5.G. 26T
    SOLID GEAR 5.G. 26T
  • 12
    83033018100 IDLER GEAR REVERSE-GEAR
    IDLER GEAR REVERSE-GEAR
  • 13
    83033017000 SLIDING SLEEVE REVERSE-GEAR
    SLIDING SLEEVE REVERSE-GEAR
  • 14
    83033025000 STOP DISK 20,2X31,X1,5
    STOP DISK 20,2X31,X1,5
  • 15
    83033044000 NEEDLE BEAR. 22X26X12
    NEEDLE BEAR. 22X26X12
  • 16
    83033011000 IDLER GEAR 1.G. 35T
    IDLER GEAR 1.G. 35T
  • 17
    49032012000 STOP DISK 17,2X30X1,5
    STOP DISK 17,2X30X1,5
  • 18
    54633014100 SPACER BUSHING 12MM
    SPACER BUSHING 12MM
  • 20
    50033029013 SPROCKET 13-T
    SPROCKET 13-T
  • 20
    50033029014 SPROCKET 14-T
    SPROCKET 14-T
  • 20
    50033029015 SPROCKET 15-T
    SPROCKET 15-T
  • 22
    59033034044 SCREW+SPRING WASHER
    SCREW+SPRING WASHER
  • 25
    0770020220 O-RING 25,12X1,78 NBR70
    O-RING 25,12X1,78 NBR70
  • 30
    0625062036 BALL BEARING 6203 RSH C3
    BALL BEARING 6203 RSH C3
  • 31
    49030023000 CYL.ROLL BEARING NJ205
    CYL.ROLL BEARING NJ205
  • 32
    0760324571 SHAFT SEAL RING 32X45X7 BSLNBR
    SHAFT SEAL RING 32X45X7 BSLNBR
