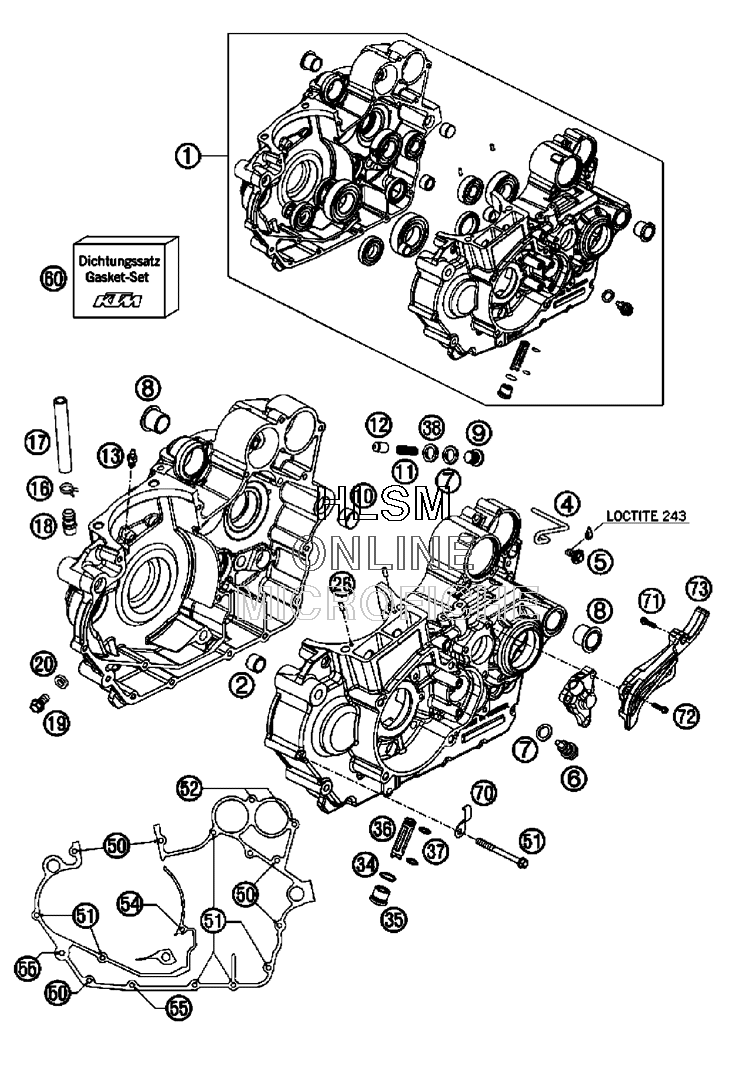

ENGINE CASE для Ktm 525 XC - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    83130000033 ENGINE CASE WITH BEARING CPL.
    ENGINE CASE WITH BEARING CPL.
  • 2
    51030026100 DOWEL 17 X 13 X 12
    DOWEL 17 X 13 X 12
  • 4
    59030090000 HANGER FOR VENT HOSE
    HANGER FOR VENT HOSE
  • 5
    0014060153 HH COLLAR SCREW M 6X15
    HH COLLAR SCREW M 6X15
  • 6
    58030021000 OILDRAIN PLUG W.MAG. M 12X1,5
    OILDRAIN PLUG W.MAG. M 12X1,5
  • 7
    58038022000 CU-SEAL RING DIN7603-12X18X1,5
    CU-SEAL RING DIN7603-12X18X1,5
  • 8
    75030010000 CASE BUSH
    CASE BUSH
  • 9
    0908120153 PLUG DIN0908-M12X1,5
    PLUG DIN0908-M12X1,5
  • 10
    59030024000 DOWEL 17 X 19 X 12
    DOWEL 17 X 19 X 12
  • 11
    58038023300 PRESSURE SPRING
    PRESSURE SPRING
  • 12
    58038028000 VALVE PISTON
    VALVE PISTON
  • 13
    60030064070 OIL JET 70 M6X0,75 WS8
    OIL JET 70 M6X0,75 WS8
  • 16
    58431082100 YDNAC-CLAMP 10173 (16MM)
    YDNAC-CLAMP 10173 (16MM)
  • 17
    83031050000 ENGINE BREATHER TUBE
    ENGINE BREATHER TUBE
  • 18
    59030022100 BLEEDER FLANGE M12X1,5
    BLEEDER FLANGE M12X1,5
  • 19
    0015080123 HH COLLAR SCREW M 8X12
    HH COLLAR SCREW M 8X12
  • 20
    58030081000 CU-SEAL RING 8 X 14 X 3
    CU-SEAL RING 8 X 14 X 3
  • 26
    0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8
    NEEDLE ROL.DIN5402 NRB 4X9,8
  • 34
    0770120020 O-RING 12,00X2,00 NBR 70
    O-RING 12,00X2,00 NBR 70
  • 35
    59038014100 PLUG M16X1,5
    PLUG M16X1,5
  • 36
    59038015000 OIL SCREEN 11,8X44,5MM
    OIL SCREEN 11,8X44,5MM
  • 37
    0770090015 O-RING 9X1,5 NBR
    O-RING 9X1,5 NBR
  • 38
    0603121830 SEAL RING DIN7603 12X18X3
    SEAL RING DIN7603 12X18X3
  • 50
    0015060453 HH COLLAR SCREW M 6X45
    HH COLLAR SCREW M 6X45
  • 51
    0015060603 HH COLLAR SCREW M 6X60
    HH COLLAR SCREW M 6X60
  • 52
    0015060303 HH COLLAR SCREW M 6X30
    HH COLLAR SCREW M 6X30
  • 54
    0015060753 HH COLLAR SCREW M 6X75
    HH COLLAR SCREW M 6X75
  • 55
    0015060653 HH COLLAR SCREW M 6X65
    HH COLLAR SCREW M 6X65
  • 60
    83030099000 GASKET SET CPL. ATV
    GASKET SET CPL. ATV
  • 70
    83034046000 SUPPORT
    SUPPORT
  • 71
    0025080306 HH COLLAR SCREW M8X30
    HH COLLAR SCREW M8X30
  • 72
    0025060306 HH COLLAR SCREW M6X30
    HH COLLAR SCREW M6X30
  • 73
    54803096000 SPROCKET COVER 250 SX
    SPROCKET COVER 250 SX
