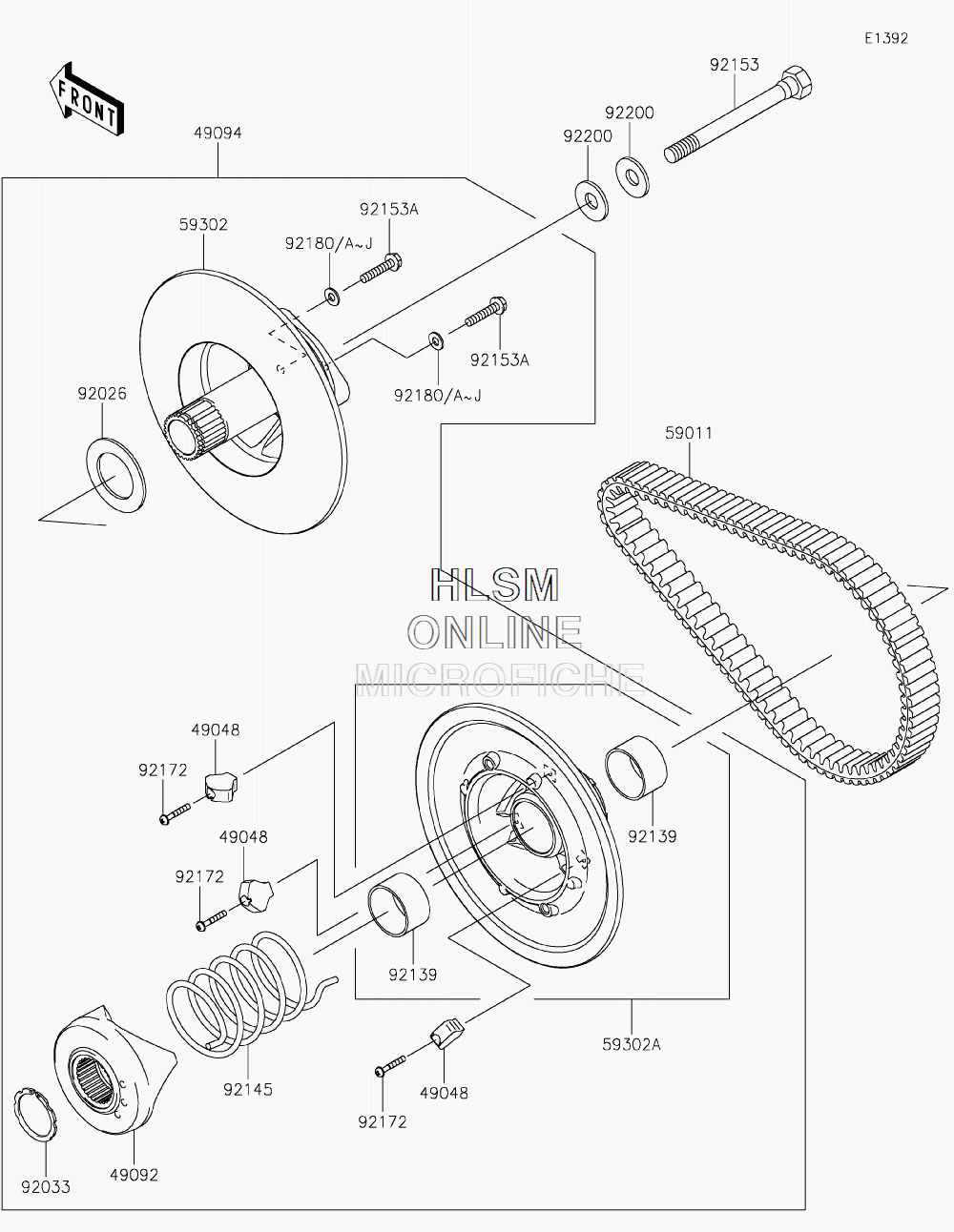

DRIVEN CONVERTER W/ DRIVE BELT для Kawasaki MULE SX 4X4 FI (KAF400PKF) - 2019 года выпуска`
-
№АртикулНазвание
-
4904849048-0001 SHOESHOE
-
4909249092-0005 RAMPRAMP
-
4909449094-0040 CONVERTER-ASSY-DRIVENCONVERTER-ASSY-DRIVEN
-
5901159011-0011 BELTBELT
-
5930259302-0008 SHEAVE-COMP, FIXEDSHEAVE-COMP, FIXED
-
59302A59302-0098 SHEAVE-COMPSHEAVE-COMP
-
9202692026-0046 SPACER, 38X60X2.5SPACER, 38X60X2.5
-
9203392033-0053 RING-SNAPRING-SNAP
-
9213992139-0054 BUSHINGBUSHING
-
9214592145-0272 SPRINGSPRING
-
9215392153-0593 BOLT, 12X121BOLT, 12X121
-
92153A92153-0833 BOLT, 6X28BOLT, 6X28
-
9217292172-0060 SCREW, 4X25SCREW, 4X25
-
9218092180-0150 SHIM, T=0.8SHIM, T=0.8
-
92180A92180-0151 SHIM, T=1.0SHIM, T=1.0
-
92180B92180-0152 SHIM, T=1.2SHIM, T=1.2
-
92180C92180-0153 SHIM, T=1.4SHIM, T=1.4
-
92180D92180-0154 SHIM, T=1.6SHIM, T=1.6
-
92180E92180-0155 SHIM, T=1.8SHIM, T=1.8
-
92180F92180-0156 SHIM, T=2.0SHIM, T=2.0
-
92180G92180-0157 SHIM, T=2.3SHIM, T=2.3
-
92180H92180-0158 SHIM, T=2.5SHIM, T=2.5
-
92180I92180-0159 SHIM, T=2.8SHIM, T=2.8
-
92180J92180-0160 SHIM, T=3.2SHIM, T=3.2
-
9220092200-0249 WASHERWASHER
