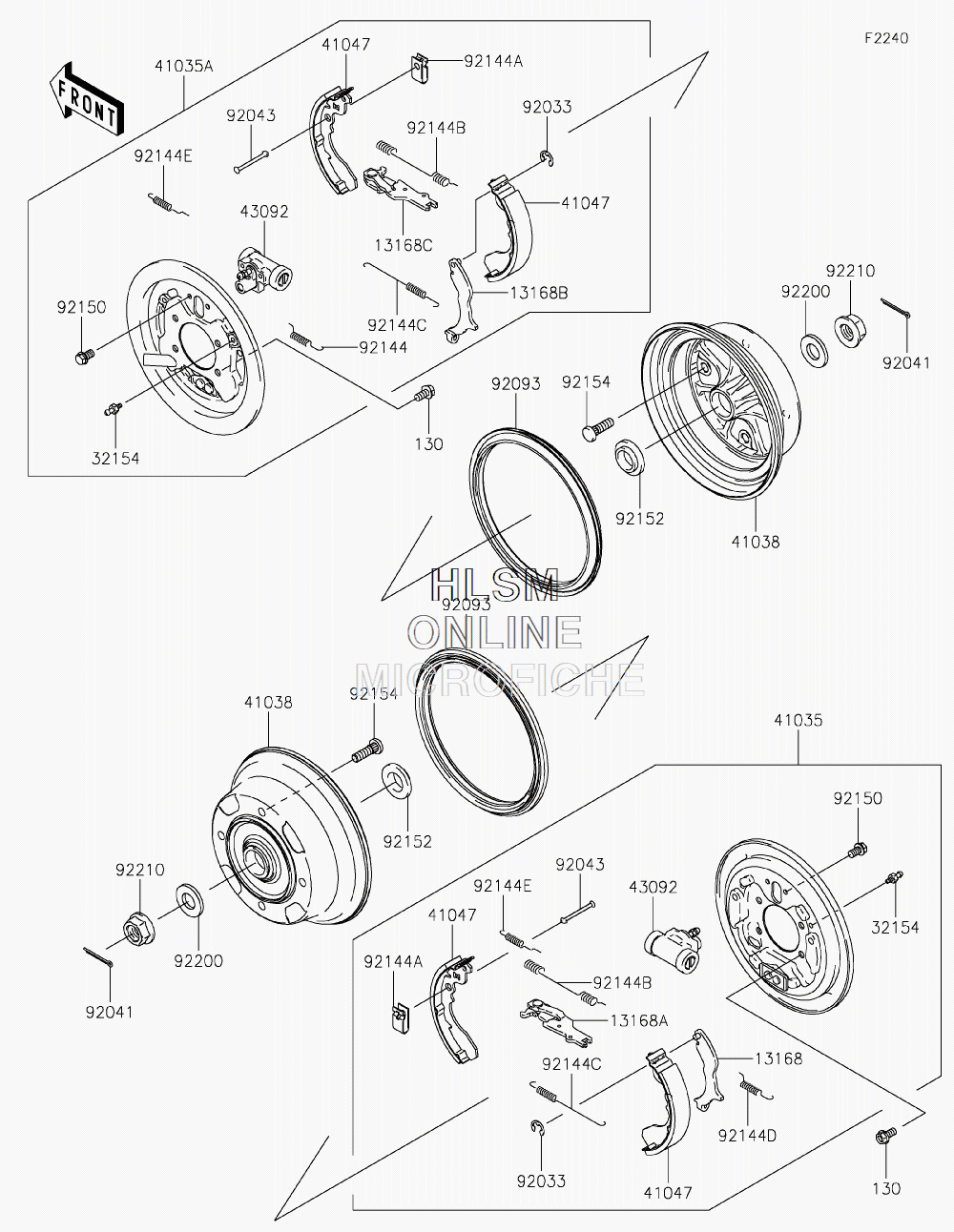

BRAKE - REAR W/ HUBS для Kawasaki MULE SX 4X4 FI (KAF400PKF) - 2019 года выпуска`
-
№АртикулНазвание
-
130130CA0816 BOLT-FLANGED, 8X16BOLT-FLANGED, 8X16
-
1316813168-0065 LEVER, BRAKE, LEFT HANDLEVER, BRAKE, LEFT HAND
-
13168A13168-0066 LEVER, BRAKE, LEFT HANDLEVER, BRAKE, LEFT HAND
-
13168B13168-0067 LEVER, BRAKE, RIGHT HANDLEVER, BRAKE, RIGHT HAND
-
13168C13168-0068 LEVER, BRAKE, RIGHT HANDLEVER, BRAKE, RIGHT HAND
-
3215432154-0335 PIPEPIPE
-
4103541035-0722 PANEL-ASSY-BRAKE, REAR, LEFT HANDPANEL-ASSY-BRAKE, REAR, LEFT HAND
-
41035A41035-0723 PANEL-ASSY-BRAKE, REAR, RIGHT HANDPANEL-ASSY-BRAKE, REAR, RIGHT HAND
-
4103841038-0018 DRUM, REAR BRAKEDRUM, REAR BRAKE
-
4104741047-7501 SHOE-ASSY-BRAKE, REARSHOE-ASSY-BRAKE, REAR
-
4309243092-0003 CYLINDER, BRAKECYLINDER, BRAKE
-
9203392033-1279 RING-SNAPRING-SNAP
-
9204192041-1053 COTTER, 4.0X35COTTER, 4.0X35
-
9204392043-1460 PIN, SHOE HOLDPIN, SHOE HOLD
-
9209392093-0031 SEAL, BS184.8X13.5-1SEAL, BS184.8X13.5-1
-
9214492144-1608 SPRING, RIGHT HANDSPRING, RIGHT HAND
-
92144A92144-1609 SPRING, SHOE HOLDSPRING, SHOE HOLD
-
92144B92144-1612 SPRING, RETURN, UPPERSPRING, RETURN, UPPER
-
92144C92144-1613 SPRING, RETURN, LOWERSPRING, RETURN, LOWER
-
92144D92144-1614 SPRING, LEFT HANDSPRING, LEFT HAND
-
92144E92144-1615 SPRINGSPRING
-
9215092150-1664 BOLT, FLANGED, 6X10BOLT, FLANGED, 6X10
-
9215292152-0284 COLLARCOLLAR
-
9215492154-1482 BOLT, 10X34.6BOLT, 10X34.6
-
9220092200-1795 WASHER, 20.5X41.0X4.5WASHER, 20.5X41.0X4.5
-
9221092210-2093 NUT, FLANGED, 20MMNUT, FLANGED, 20MM
