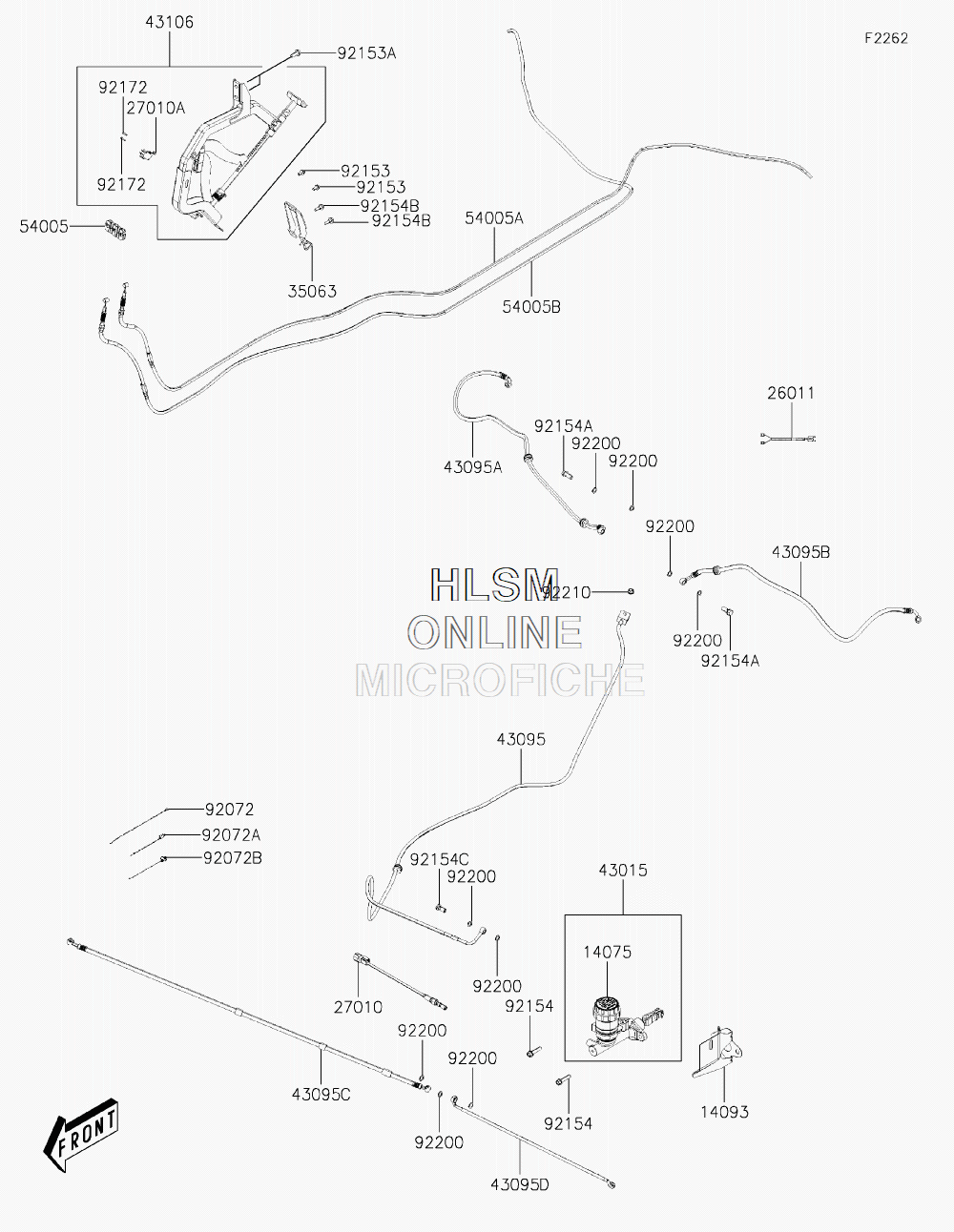

BRAKE PIPING для Kawasaki MULE PRO-MX (KAF700AKF) - 2019 года выпуска`
-
№АртикулНазвание
-
1407514075-Y004 CAP-ASSYCAP-ASSY
-
1409314093-Y008 COVER, MASTER CYLINDERCOVER, MASTER CYLINDER
-
2601126011-Y014 WIRE-LEAD, PARKING SWWIRE-LEAD, PARKING SW
-
2701027010-Y016 SWITCH, BRAKE PRESSURESWITCH, BRAKE PRESSURE
-
27010A27010-Y017 SWITCHSWITCH
-
3506335063-Y042 STAY, PARKING BRAKE ASSYSTAY, PARKING BRAKE ASSY
-
4301543015-Y007 CYLINDER-ASSY-MASTERCYLINDER-ASSY-MASTER
-
4309543095-Y019 HOSE-BRAKE, REARHOSE-BRAKE, REAR
-
43095A43095-Y020 HOSE-BRAKE, REAR, RIGHT HANDHOSE-BRAKE, REAR, RIGHT HAND
-
43095B43095-Y021 HOSE-BRAKE, REAR, LEFT HANDHOSE-BRAKE, REAR, LEFT HAND
-
43095C43095-Y022 HOSE-BRAKE, FRONT, RIGHT HANDHOSE-BRAKE, FRONT, RIGHT HAND
-
43095D43095-Y023 HOSE-BRAKE, FRONT, LEFT HANDHOSE-BRAKE, FRONT, LEFT HAND
-
4310643106-Y001 LEVER-ASSY-PARKING BRAKELEVER-ASSY-PARKING BRAKE
-
5400554005-Y003 CABLE-BRAKE, PARKINGCABLE-BRAKE, PARKING
-
54005A54005-Y004 CABLE-BRAKE, PARKING, RIGHT HANDCABLE-BRAKE, PARKING, RIGHT HAND
-
54005B54005-Y005 CABLE-BRAKE, PARKING, LEFT HANDCABLE-BRAKE, PARKING, LEFT HAND
-
9207292072-Y011 BANDBAND
-
92072A92072-Y020 BANDBAND
-
92072B92072-Y021 BANDBAND
-
9215392153-Y023 BOLT, FLANGE, 6X12BOLT, FLANGE, 6X12
-
92153A92153-Y033 BOLT, FLANGE, 8X20BOLT, FLANGE, 8X20
-
9215492154-Y021 BOLT, FLANGE, 8X35BOLT, FLANGE, 8X35
-
92154A92154-Y114 BOLT, 10X22BOLT, 10X22
-
92154B92154-Y179 BOLT, 6X20BOLT, 6X20
-
92154C92154-Y184 BOLT, OILBOLT, OIL
-
9217292172-Y082 SCREWSCREW
-
9220092200-Y015 WASHERWASHER
-
9221092210-Y076 NUT, 8MMNUT, 8MM
