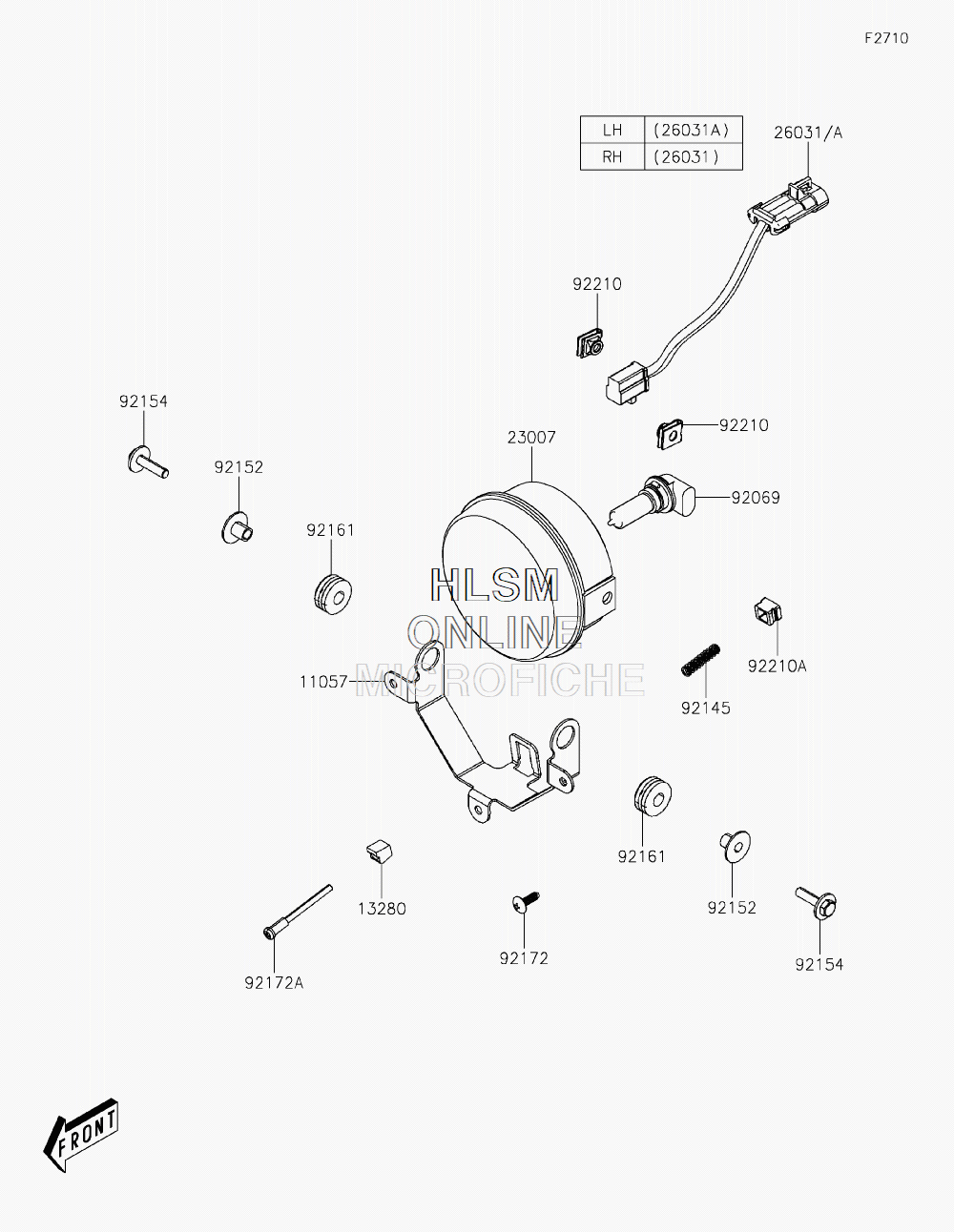

HEADLIGHT(S) для Kawasaki MULE PRO-MX (KAF700AKF) - 2019 года выпуска
-
№АртикулНазвание
-
1105711057-Y004 BRACKET, HEAD LIGHTBRACKET, HEAD LIGHT
-
1328013280-Y019 HOLDER, ADJUSTER LIGHTHOLDER, ADJUSTER LIGHT
-
2300723007-0096 LENS-COMP, HEAD LAMPLENS-COMP, HEAD LAMP
-
2603126031-Y018 HARNESS, SUB, HEAD LIGHT, RIGHT HANDHARNESS, SUB, HEAD LIGHT, RIGHT HAND
-
26031A26031-Y019 HARNESS, SUB, HEAD LIGHT, LEFT HANDHARNESS, SUB, HEAD LIGHT, LEFT HAND
-
9206992069-0019 BULB, 12V 35/35WBULB, 12V 35/35W
-
9214592145-Y062 SPRING, ADJUSTER LIGHTSPRING, ADJUSTER LIGHT
-
9215292152-Y064 COLLAR, HEAD LIGHTCOLLAR, HEAD LIGHT
-
9215492154-Y099 BOLT, 6X25BOLT, 6X25
-
9216192161-Y043 DAMPERDAMPER
-
9217292172-Y020 SCREW, TAPPING, 5X16SCREW, TAPPING, 5X16
-
92172A92172-Y080 SCREW, PAN, 4X58SCREW, PAN, 4X58
-
9221092210-Y089 NUT, 6MMNUT, 6MM
-
92210A92210-Y095 NUT, 4MMNUT, 4MM
