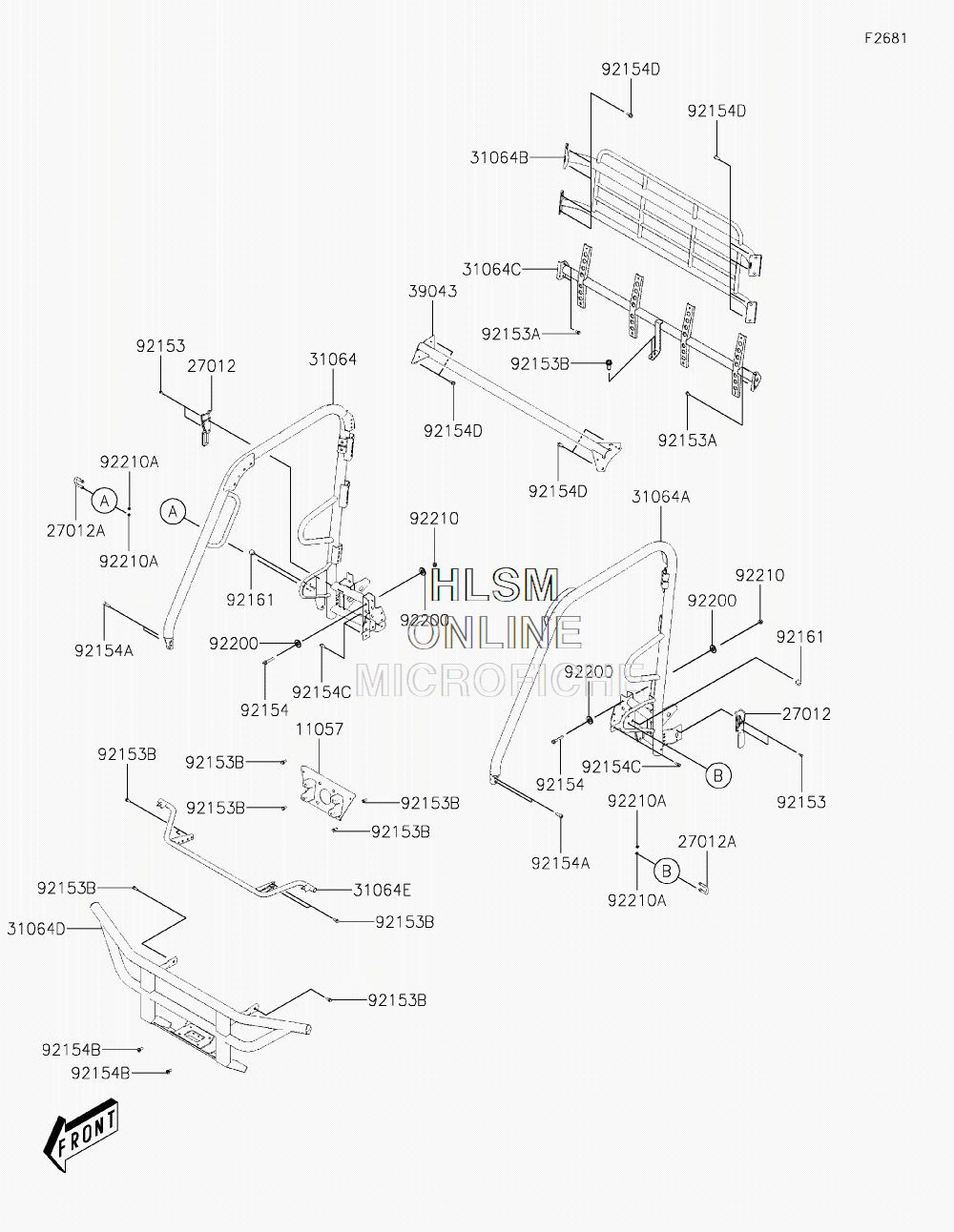

GUARD(S) / CAB FRAME для Kawasaki MULE PRO-MX EPS (KAF700BKF) - 2019 года выпуска`
-
№АртикулНазвание
-
1105711057-Y015 BRACKET, STABILIZERBRACKET, STABILIZER
-
2701227012-Y005 HOOK, SIDEHOOK, SIDE
-
27012A27012-Y006 HOOK, DOORHOOK, DOOR
-
3106431064-Y013 PIPE-COMP, ROOF, RIGHT HANDPIPE-COMP, ROOF, RIGHT HAND
-
31064A31064-Y014 PIPE-COMP, ROOF, LEFT HANDPIPE-COMP, ROOF, LEFT HAND
-
31064B31064-Y015 PIPE-COMP, REAR, UPPERPIPE-COMP, REAR, UPPER
-
31064C31064-Y016 PIPE-COMP, REAR, LOWERPIPE-COMP, REAR, LOWER
-
31064D31064-Y017 PIPE-COMP, FRONT BUMPERPIPE-COMP, FRONT BUMPER
-
31064E31064-Y018 PIPE-COMP, FRONT COVERPIPE-COMP, FRONT COVER
-
3904339043-Y002 CROSSMEMBER-COMP, ROOFCROSSMEMBER-COMP, ROOF
-
9215392153-Y025 BOLT, FLANGE, 6X16BOLT, FLANGE, 6X16
-
92153A92153-Y032 BOLT, FLANGE, 8X16BOLT, FLANGE, 8X16
-
92153B92153-Y033 BOLT, FLANGE, 8X20BOLT, FLANGE, 8X20
-
9215492154-Y091 BOLT, FLANGE, 10X60BOLT, FLANGE, 10X60
-
92154A92154-Y098 BOLT, SOCKET, 10X28BOLT, SOCKET, 10X28
-
92154B92154-Y178 BOLT, 10X23BOLT, 10X23
-
92154C92154-Y195 BOLT, FLANGE, 8X25BOLT, FLANGE, 8X25
-
92154D92154-Y197 BOLT, FLANGE, 10X200BOLT, FLANGE, 10X200
-
9216192161-Y050 DAMPER, ROPSDAMPER, ROPS
-
9220092200-Y020 WASHER, 10MMWASHER, 10MM
-
9221092210-Y009 NUT, 10MMNUT, 10MM
-
92210A92210-Y087 NUT, 6MMNUT, 6MM
Все узлы модели:
- AIR CLEANER
- BATTERY
- BRAKE - FRONT W/ HUB
- BRAKE - PEDAL W/THROTTLE LEVER
- BRAKE - REAR W/ HUBS
- BRAKE PIPING
- CARRIER(S)
- CHASSIS ELECTRICAL EQUIPMENT
- COLOR INFO
- CONVERTER COVER
- COOLING
- CRANKCASE
- CYLINDER HEAD
- CYLINDER W/ PISTON(S)
- DECALS (GREEN)
- DECALS (WHITE)
- DRIVE SHAFT (FRONT)
- DRIVE SHAFT (PROPELLER)
- DRIVE SHAFT (REAR)
- DRIVEN CONVERTER W/ DRIVE BELT
- ENGINE COVER(S)
- FENDER - FRONT
- FENDER - REAR
- FRAME
- FUEL EVAPORATIVE SYSTEM (CAILF. ONLY)
- FUEL TANK
- GENERATOR
- • GUARD(S) / CAB FRAME
- HEADLIGHT(S)
- LABELS
- MANUALS
- METER(S)
- MUFFLER(S)
- SEAT
- SUSPENSION - FRONT
- SUSPENSION - REAR
- TAILLIGHT(S)
- THROTTLE BODY
- TRANSMISSION
