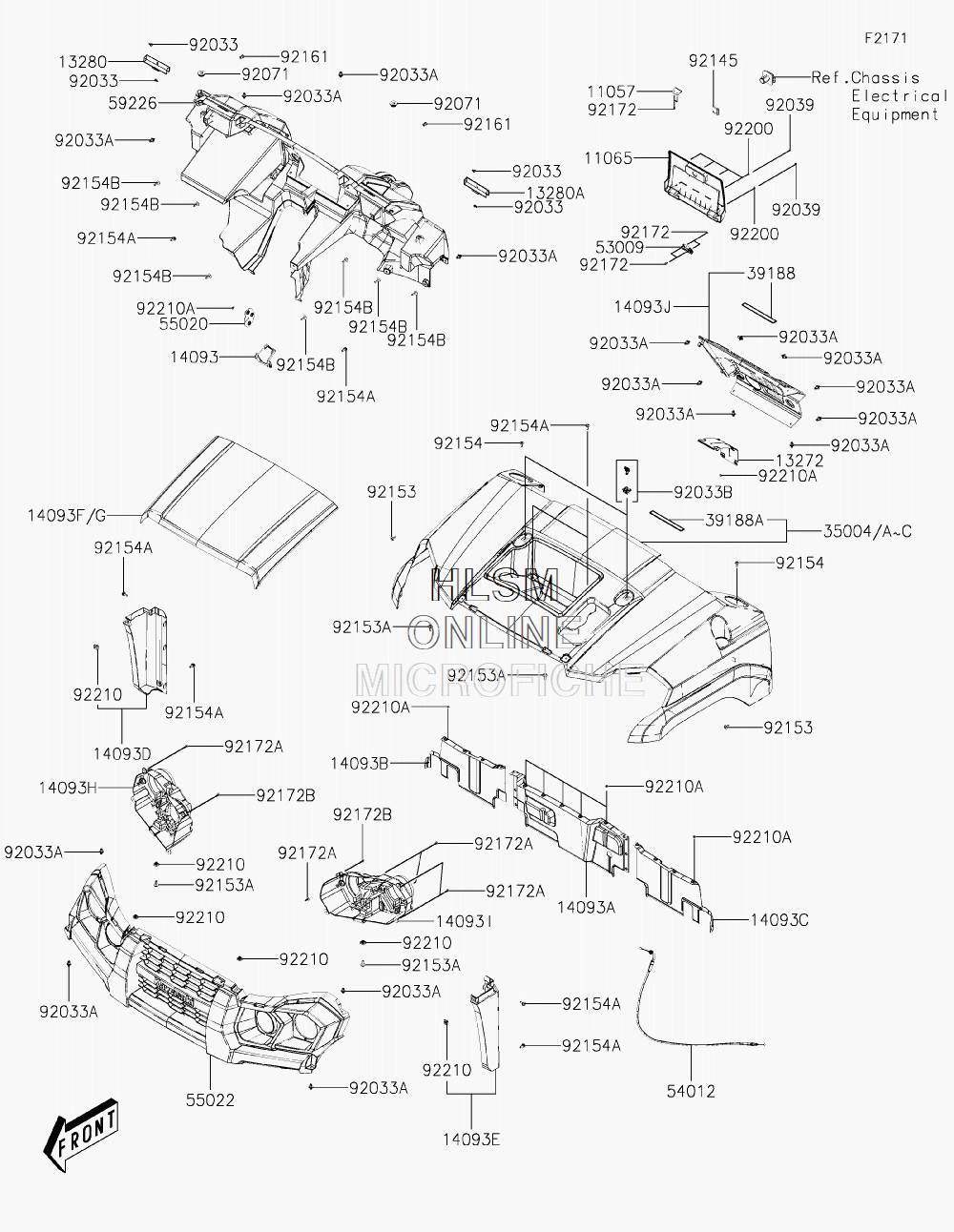

FENDER - FRONT для Kawasaki MULE PRO-MX EPS (KAF700BKF) - 2019 года выпуска
-
№АртикулНазвание
-
1105711057-Y017 BRACKET, COVERBRACKET, COVER
-
1106511065-Y040-933 CAP, GLOVE BOX, (S.BLACK)CAP, GLOVE BOX, (S.BLACK)
-
1327213272-Y031 PLATE, SHIFT LEVERPLATE, SHIFT LEVER
-
1328013280-Y021-933 HOLDER, CUP, RIGHT HAND, (S.BLACK)HOLDER, CUP, RIGHT HAND, (S.BLACK)
-
13280A13280-Y022-933 HOLDER, CUP, LEFT HAND, (S.BLACK)HOLDER, CUP, LEFT HAND, (S.BLACK)
-
1409314093-Y011-933 COVER, CONTROL PANEL, (S.BLACK)COVER, CONTROL PANEL, (S.BLACK)
-
14093A14093-Y012 COVER, SPLASH GUARDCOVER, SPLASH GUARD
-
14093B14093-Y013 COVER, SPLASH GUARD, RIGHT HANDCOVER, SPLASH GUARD, RIGHT HAND
-
14093C14093-Y014 COVER, SPLASH GUARD, LEFT HANDCOVER, SPLASH GUARD, LEFT HAND
-
14093D14093-Y015-933 COVER, SIDE PANEL, RIGHT HAND, (S.BLACK)COVER, SIDE PANEL, RIGHT HAND, (S.BLACK)
-
14093E14093-Y016-933 COVER, SIDE PANEL, LEFT HAND, (S.BLACK)COVER, SIDE PANEL, LEFT HAND, (S.BLACK)
-
14093F14093-Y019-932 COVER, HOOD, (B.WHITE) (FOR 932)COVER, HOOD, (B.WHITE) (FOR 932)
-
14093G14093-Y019-973 COVER, HOOD, (T.GREEN) (FOR 973)COVER, HOOD, (T.GREEN) (FOR 973)
-
14093H14093-Y020-933 COVER, HEAD LIGHT, RIGHT HAND, (S.BLACK)COVER, HEAD LIGHT, RIGHT HAND, (S.BLACK)
-
14093I14093-Y021-933 COVER, HEAD LIGHT, LEFT HAND, (S.BLACK)COVER, HEAD LIGHT, LEFT HAND, (S.BLACK)
-
14093J14093-Y046-933 COVER, CENTER, (S.BLACK)COVER, CENTER, (S.BLACK)
-
3500435004-Y004-932 FENDER-FRONT, (B.WHITE) (FOR 932) (USA ONLY)FENDER-FRONT, (B.WHITE) (FOR 932) (USA ONLY)
-
35004A35004-Y004-973 FENDER-FRONT, (T.GREEN) (FOR 973) (USA ONLY)FENDER-FRONT, (T.GREEN) (FOR 973) (USA ONLY)
-
35004B35004-Y007-932 FENDER-FRONT, (B.WHITE) (FOR 932) (CANADA ONLY)FENDER-FRONT, (B.WHITE) (FOR 932) (CANADA ONLY)
-
35004C35004-Y007-973 FENDER-FRONT, (T.GREEN) (FOR 973) (CANADA ONLY)FENDER-FRONT, (T.GREEN) (FOR 973) (CANADA ONLY)
-
3918839188-Y002 TAPE, VELCROTAPE, VELCRO
-
39188A39188-Y003 TAPE, VELCROTAPE, VELCRO
-
5300953009-Y001 HINGE, LIDHINGE, LID
-
5401254012-Y008 CABLE-THROTTLECABLE-THROTTLE
-
5502055020-Y012 GUARD, CONTROL PANELGUARD, CONTROL PANEL
-
5502255022-Y003-933 COVER-HEAD LAMP, (S.BLACK)COVER-HEAD LAMP, (S.BLACK)
-
5922659226-Y001-933 PANEL-CONTROL, (S.BLACK)PANEL-CONTROL, (S.BLACK)
-
9203392033-Y032 RING-SNAPRING-SNAP
-
92033A92033-Y033 RING-SNAPRING-SNAP
-
92033B92033-Y034 RING-SNAPRING-SNAP
-
9203992039-Y001 RIVET, 3.2X9.8RIVET, 3.2X9.8
-
9207192071-Y005 GROMMETGROMMET
-
9214592145-Y067 SPRING, SETSPRING, SET
-
9215392153-Y013 BOLT, 5X16BOLT, 5X16
-
92153A92153-Y019 BOLT, 6X20BOLT, 6X20
-
9215492154-Y030 BOLT, 5X16BOLT, 5X16
-
92154A92154-Y177 BOLT, 6X18BOLT, 6X18
-
92154B92154-Y186 BOLT, 5X22BOLT, 5X22
-
9216192161-Y054 DAMPERDAMPER
-
9217292172-Y019 SCREW, 4X12SCREW, 4X12
-
92172A92172-Y020 SCREW, TAPPING, 5X16SCREW, TAPPING, 5X16
-
92172B92172-Y038 SCREW, TAPPING, 5X12SCREW, TAPPING, 5X12
-
9220092200-Y017 WASHER, 3MMWASHER, 3MM
-
9221092210-Y011 NUT, 6MMNUT, 6MM
-
92210A92210-Y080 NUTNUT
