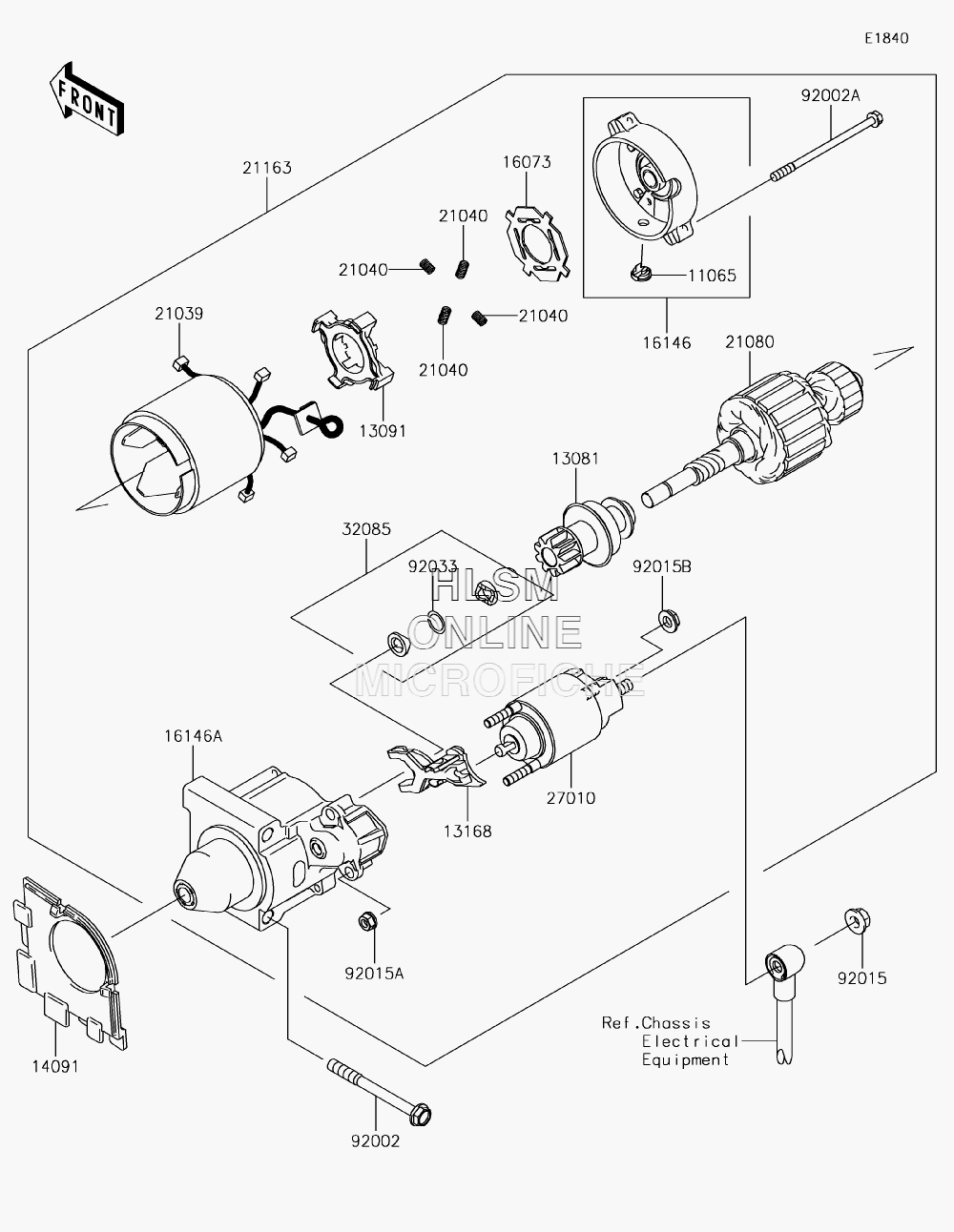

STARTER MOTOR для Kawasaki MULE SX (KAF400JHS) - 2017 года выпуска`
-
№АртикулНазвание
-
1106511065-2118 CAPCAP
-
1308113081-2227 CLUTCH-ASSYCLUTCH-ASSY
-
1309113091-2068 HOLDER, BRUSHHOLDER, BRUSH
-
1316813168-2148 LEVER, SHIFTLEVER, SHIFT
-
1409114091-7038 COVERCOVER
-
1607316073-2098 INSULATORINSULATOR
-
1614616146-7016 COVER-ASSY, ENDCOVER-ASSY, END
-
16146A16146-7025 COVER-ASSYCOVER-ASSY
-
2103921039-2059 BRUSHBRUSH
-
2104021040-2052 SPRING-BRUSHSPRING-BRUSH
-
2108021080-2058 ARMATUREARMATURE
-
2116321163-7028 STARTER-ELECTRICSTARTER-ELECTRIC
-
2701027010-7005 SWITCHSWITCH
-
3208532085-2097 STOPPERSTOPPER
-
9200292002-1794 BOLT, 8X83BOLT, 8X83
-
92002A92002-2277 BOLTBOLT
-
9201592015-1406 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
92015A92015-2146 NUTNUT
-
92015B92015-2147 NUTNUT
-
9203392033-2081 RING-SNAPRING-SNAP
