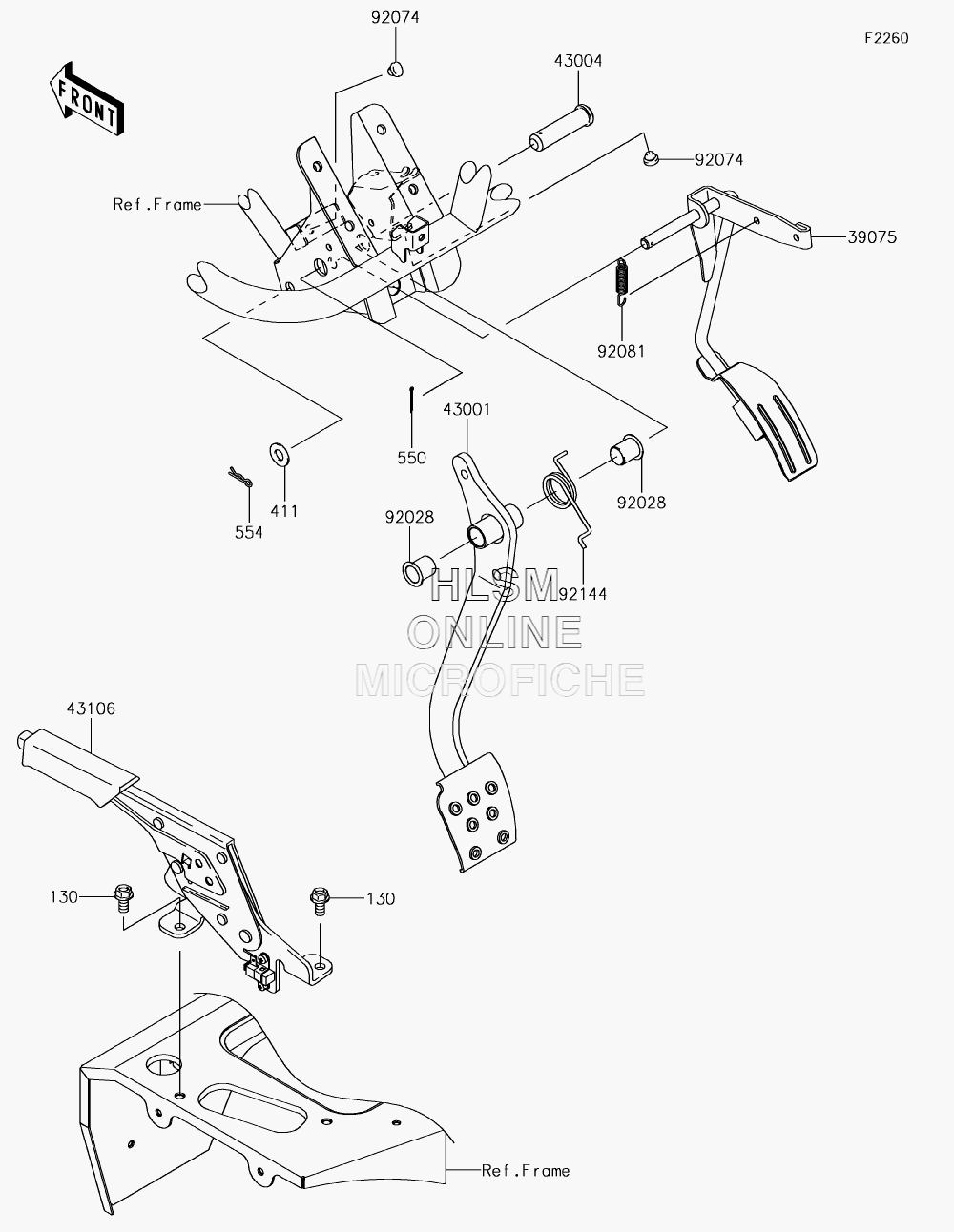

BRAKE - PEDAL W/THROTTLE LEVER для Kawasaki MULE SX (KAF400JHS) - 2017 года выпуска
-
№АртикулНазвание
-
130130AA0816 BOLT-FLANGED, 8X16BOLT-FLANGED, 8X16
-
3907539075-0022 LEVER-THROTTLELEVER-THROTTLE
-
411411AA1000 WASHER-PLAIN, 10MMWASHER-PLAIN, 10MM
-
4300143001-7502 LEVER-BRAKE, PEDALLEVER-BRAKE, PEDAL
-
4300443004-1128 SHAFT-BRAKESHAFT-BRAKE
-
4310643106-0005 LEVER-ASSY-PARKING BRAKELEVER-ASSY-PARKING BRAKE
-
550550AA2525 PIN-COTTER, 2.5X25PIN-COTTER, 2.5X25
-
554554DA1000 PIN-SNAP, 10MMPIN-SNAP, 10MM
-
9202892028-1571 BUSHINGBUSHING
-
9207492074-028 PLUG, 7X2PLUG, 7X2
-
9208192081-1922 SPRINGSPRING
-
9214492144-1536 SPRINGSPRING
