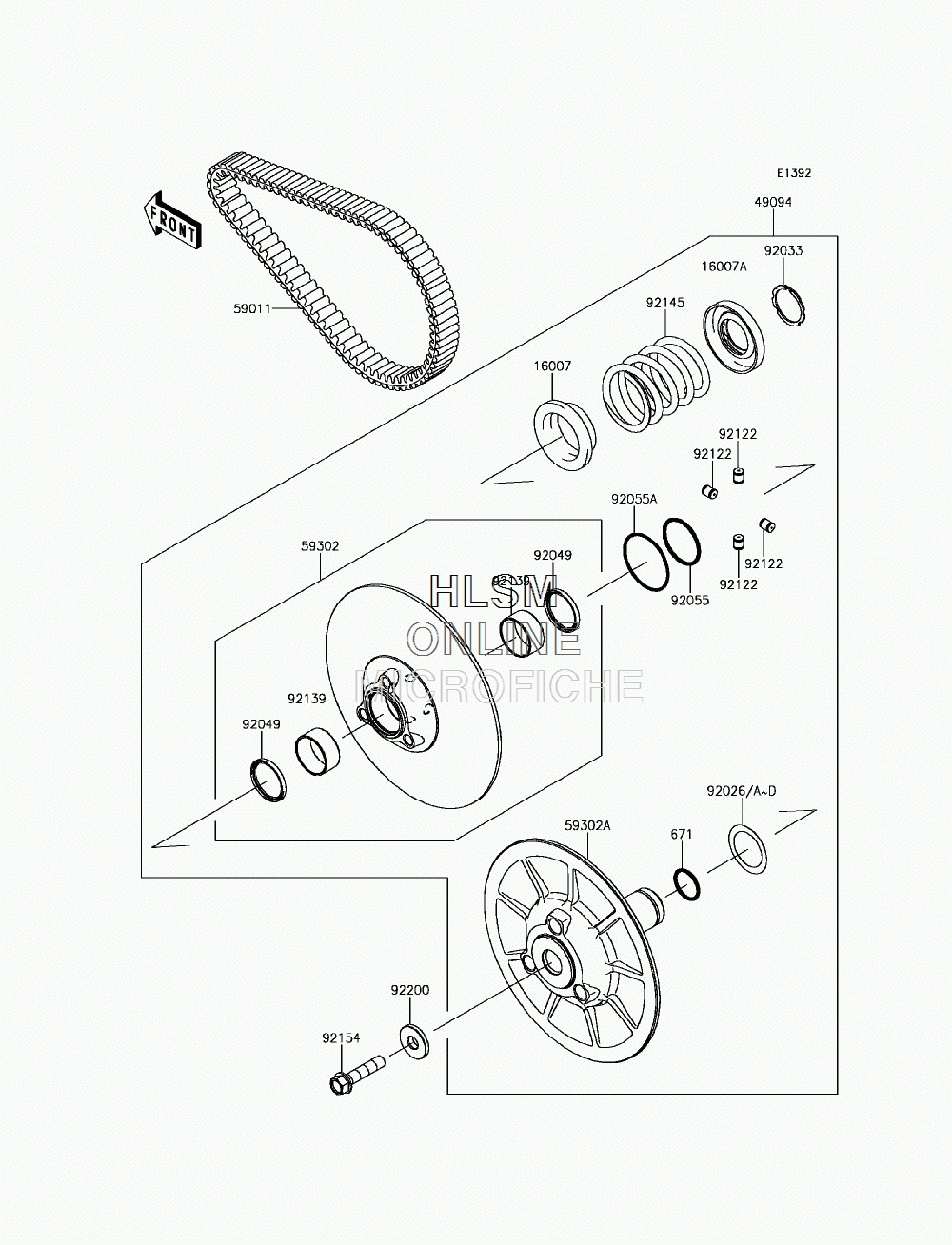

DRIVEN CONVERTER W/ DRIVE BELT для Kawasaki MULE PRO-FX (KAF820EHF) - 2017 года выпуска`
-
№АртикулНазвание
-
671671D2530 O RINGO RING
-
1600716007-0049 SEAT-SPRING,MOVABLESEAT-SPRING,MOVABLE
-
16007A16007-0050 SEAT-SPRING,FIXEDSEAT-SPRING,FIXED
-
4909449094-0098 CONVERTER-ASSY-DRIVENCONVERTER-ASSY-DRIVEN
-
5901159011-0037 BELT,CVTBELT,CVT
-
5930259302-0049 SHEAVE-COMP,MOVABLESHEAVE-COMP,MOVABLE
-
59302A59302-0096 SHEAVE-COMPSHEAVE-COMP
-
9202692026-0034 SPACER,T=0.30SPACER,T=0.30
-
92026A92026-1565 SPACER,T=1.00SPACER,T=1.00
-
92026B92026-1569 SPACER,T=0.60SPACER,T=0.60
-
92026C92026-1570 SPACER,T=1.40SPACER,T=1.40
-
92026D92026-1617 SPACER,T=0.80SPACER,T=0.80
-
9203392033-1317 RING-SNAPRING-SNAP
-
9204992049-1528 SEAL-OILSEAL-OIL
-
9205592055-0752 RING-O,46.4X3.1RING-O,46.4X3.1
-
92055A92055-0753 RING-O,59.5X2.4RING-O,59.5X2.4
-
9212292122-0043 ROLLERROLLER
-
9213992139-0313 BUSHINGBUSHING
-
9214592145-1577 SPRINGSPRING
-
9215492154-1336 BOLT,FLANGED,12X55BOLT,FLANGED,12X55
-
9220092200-0069 WASHERWASHER
