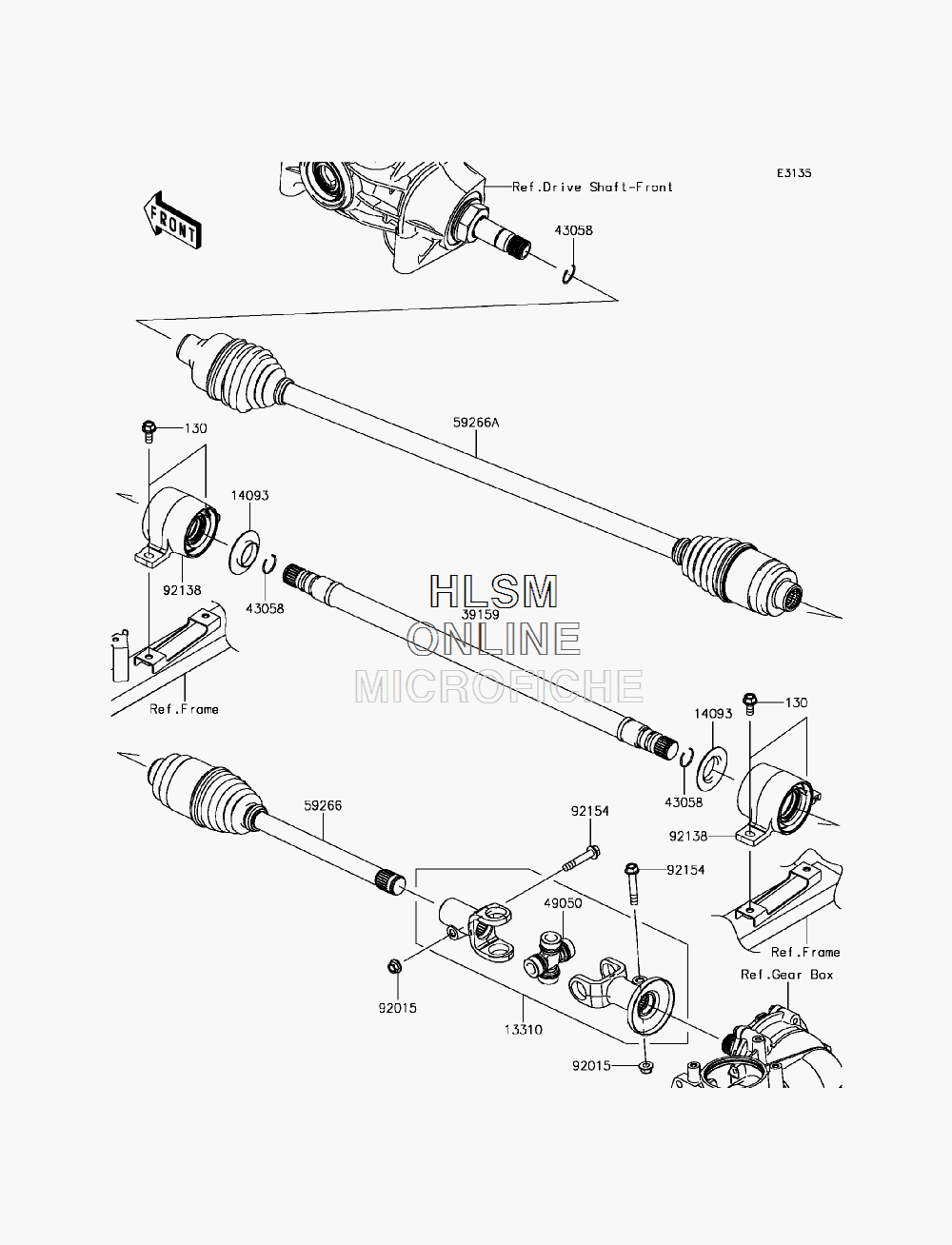

DRIVE SHAFT (PROPELLER) для Kawasaki MULE PRO-FX (KAF820EHF) - 2017 года выпуска
-
№АртикулНазвание
-
130130BA0818 BOLT-FLANGED,8X18BOLT-FLANGED,8X18
-
1331013310-0038 SHAFT-ASSYSHAFT-ASSY
-
1409314093-0006 COVER,SIDE RIPCOVER,SIDE RIP
-
3915939159-0045 SHAFT-DRIVESHAFT-DRIVE
-
4305843058-0018 RINGRING
-
4905049050-0034 SPIDERSPIDER
-
5926659266-0716 JOINT-BALL,T/M SIDEJOINT-BALL,T/M SIDE
-
59266A59266-0717 JOINT-BALL, FRONT DIFF SIDEJOINT-BALL, FRONT DIFF SIDE
-
9201592015-1432 NUT,8MMNUT,8MM
-
9213892138-0002 BEARING-COMPBEARING-COMP
-
9215492154-1365 BOLT,FLANGED,8X46BOLT,FLANGED,8X46
