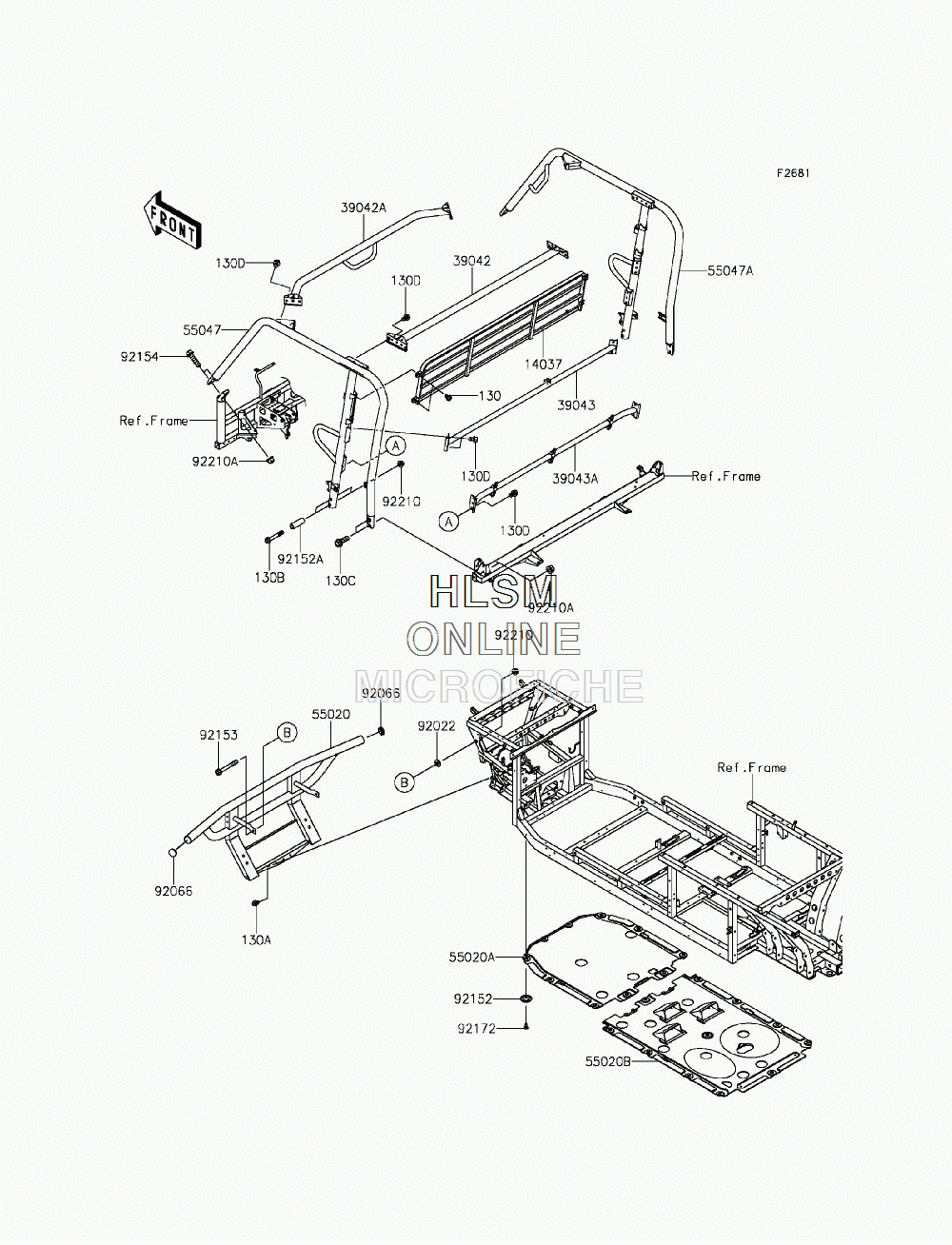

GUARD(S) / CAB FRAME для Kawasaki MULE PRO-FX (KAF820EGF) - 2016 года выпуска

  • №
    Артикул
    Название
  • 130
    130BA0812 BOLT-FLANGED,8X12
    BOLT-FLANGED,8X12
  • 130A
    130BA0816 BOLT-FLANGED,8X16
    BOLT-FLANGED,8X16
  • 130B
    130BA1060 BOLT-FLANGED,10X60
    BOLT-FLANGED,10X60
  • 130C
    130BA1235 BOLT-FLANGED,12X35
    BOLT-FLANGED,12X35
  • 130D
    130CB1014 BOLT-FLANGED,10X14
    BOLT-FLANGED,10X14
  • 14037
    14037-0758-388 SCREEN,(T.BLACK) (FOR 839)
    SCREEN,(T.BLACK) (FOR 839)
  • 39042
    39042-0015-388 CROSSMEMBER, REAR,(T.BLACK) (FOR 839)
    CROSSMEMBER, REAR,(T.BLACK) (FOR 839)
  • 39042A
    39042-0016-388 CROSSMEMBER, FRONT,(T.BLACK) (FOR 839)
    CROSSMEMBER, FRONT,(T.BLACK) (FOR 839)
  • 39043
    39043-0016-388 CROSSMEMBER-COMP,B-P.,UPPER,(BLACK) (FOR 839)
    CROSSMEMBER-COMP,B-P.,UPPER,(BLACK) (FOR 839)
  • 39043A
    39043-0017-388 CROSSMEMBER-COMP,B-P.,LOWER,(BLACK) (FOR 839)
    CROSSMEMBER-COMP,B-P.,LOWER,(BLACK) (FOR 839)
  • 55020
    55020-0933-388 GUARD, FRONT PIPE,(T.BLACK) (FOR 839)
    GUARD, FRONT PIPE,(T.BLACK) (FOR 839)
  • 55020A
    55020-0934 GUARD,SKID PLATE
    GUARD,SKID PLATE
  • 55020B
    55020-0935 GUARD,SKID PLATE
    GUARD,SKID PLATE
  • 55047
    55047-0351-388 BAR-COMP,B-PILLAR, LEFT HAND,(T.BLACK) (FOR 839)
    BAR-COMP,B-PILLAR, LEFT HAND,(T.BLACK) (FOR 839)
  • 55047A
    55047-0352-388 BAR-COMP,B-PILLAR, RIGHT HAND,(T.BLACK) (FOR 839)
    BAR-COMP,B-PILLAR, RIGHT HAND,(T.BLACK) (FOR 839)
  • 92022
    92022-1365 WASHER,10X22X3
    WASHER,10X22X3
  • 92066
    92066-0769 PLUG
    PLUG
  • 92152
    92152-0784 COLLAR
    COLLAR
  • 92152A
    92152-1800 COLLAR,10.5X16X47
    COLLAR,10.5X16X47
  • 92153
    92153-1384 BOLT,FLANGED,10X75
    BOLT,FLANGED,10X75
  • 92154
    92154-1420 BOLT,FLANGED,12X45
    BOLT,FLANGED,12X45
  • 92172
    92172-0739 SCREW,TAPPING,6X16
    SCREW,TAPPING,6X16
  • 92210
    92210-0276 NUT,LOCK,FLANGED,10MM
    NUT,LOCK,FLANGED,10MM
  • 92210A
    92210-0603 NUT,12MM
    NUT,12MM
