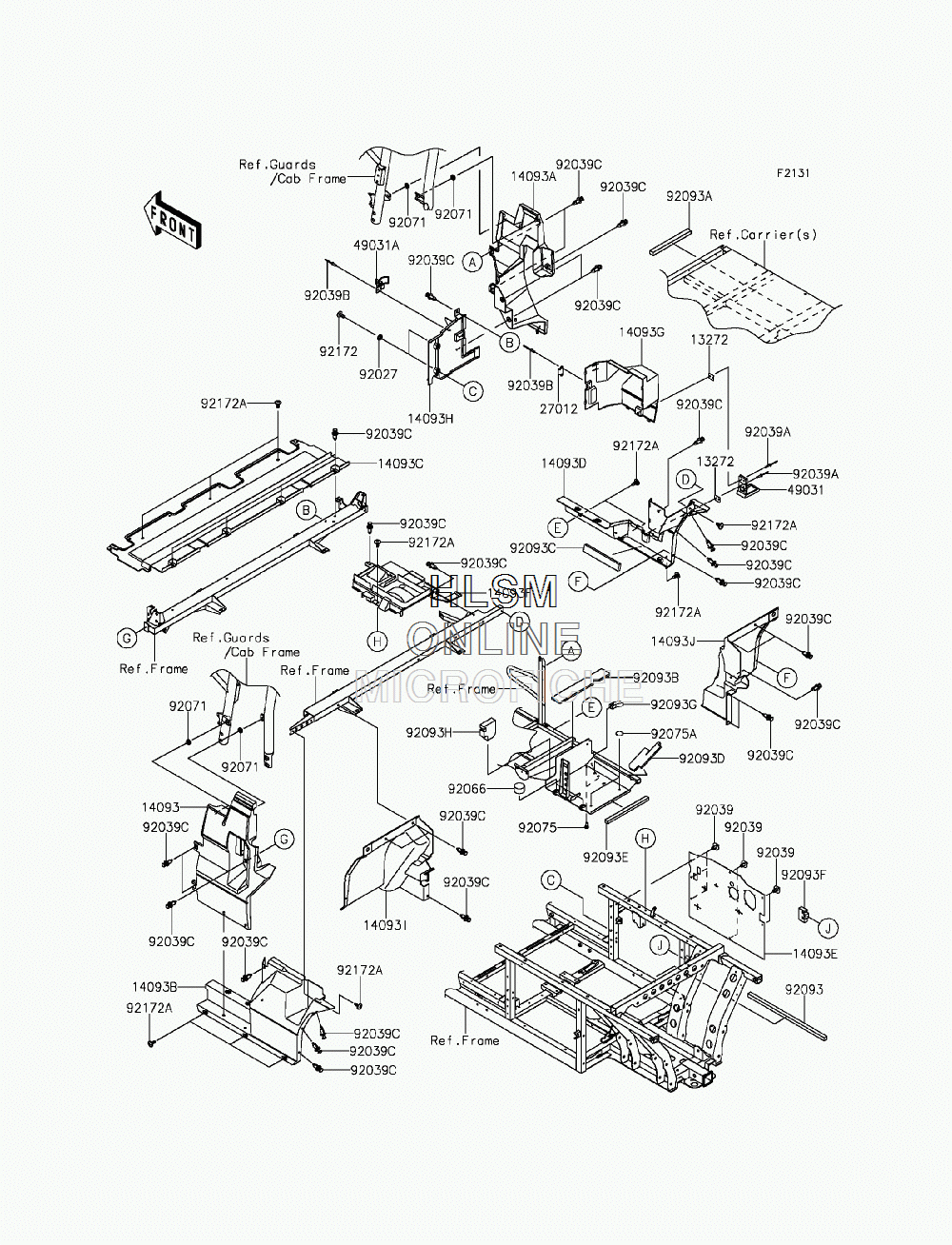

FRAME FITTINGS (REAR) для Kawasaki MULE PRO-FX (KAF820EGF) - 2016 года выпуска
-
№АртикулНазвание
-
1327213272-1828 PLATE,LATCHPLATE,LATCH
-
1409314093-0167-6Z COVER,SIDE, LEFT HAND, FRONT,(F.BLACK) (FOR 839)COVER,SIDE, LEFT HAND, FRONT,(F.BLACK) (FOR 839)
-
14093A14093-0168-6Z COVER,SIDE, RIGHT HAND, FRONT,(F.BLACK) (FOR 839)COVER,SIDE, RIGHT HAND, FRONT,(F.BLACK) (FOR 839)
-
14093B14093-0169 COVER,SIDE, LEFT HAND, REARCOVER,SIDE, LEFT HAND, REAR
-
14093C14093-0171 COVER,SEAT,BACKCOVER,SEAT,BACK
-
14093D14093-0173 COVER,SIDE, RIGHT HAND, REARCOVER,SIDE, RIGHT HAND, REAR
-
14093E14093-0257 COVER,DUST,A/C BOXCOVER,DUST,A/C BOX
-
14093F14093-0311 COVER,DUSTCOVER,DUST
-
14093G14093-0371 COVER,SIDE, RIGHT HAND,A/C MAINT.COVER,SIDE, RIGHT HAND,A/C MAINT.
-
14093H14093-0372 COVER,SIDE, RIGHT HAND,A/C, FRONTCOVER,SIDE, RIGHT HAND,A/C, FRONT
-
14093I14093-0388 COVER, REAR,FLOOR,MUD, LEFT HANDCOVER, REAR,FLOOR,MUD, LEFT HAND
-
14093J14093-0389 COVER, REAR,FLOOR,MUD, RIGHT HANDCOVER, REAR,FLOOR,MUD, RIGHT HAND
-
2701227012-0806 HOOK,STRIKERHOOK,STRIKER
-
4903149031-0007 LATCH,A/CLATCH,A/C
-
49031A49031-0015 LATCH,TOGGLELATCH,TOGGLE
-
9202792027-1168 COLLAR,L=4.6COLLAR,L=4.6
-
9203992039-0086 RIVETRIVET
-
92039A92039-0739 RIVET,3.2X13.4RIVET,3.2X13.4
-
92039B92039-0747 RIVETRIVET
-
92039C92039-1229 RIVETRIVET
-
9206692066-0812 PLUG,36X20PLUG,36X20
-
9207192071-056 GROMMETGROMMET
-
9207592075-1808 DAMPER,6X10X15DAMPER,6X10X15
-
92075A92075-261 DAMPER,RUBBERDAMPER,RUBBER
-
9209392093-0631 SEAL,DUST,20X20X565SEAL,DUST,20X20X565
-
92093A92093-0633 SEAL,DUST,20X25X280SEAL,DUST,20X25X280
-
92093B92093-0643 SEAL,DUST,61X368X10SEAL,DUST,61X368X10
-
92093C92093-0644 SEAL,DUST,39X255X15SEAL,DUST,39X255X15
-
92093D92093-0645 SEAL,DUST,69X207X10SEAL,DUST,69X207X10
-
92093E92093-0646 SEAL,DUST,15X305X20SEAL,DUST,15X305X20
-
92093F92093-0651 SEAL,52X72X20SEAL,52X72X20
-
92093G92093-0652 SEAL,21.5X60X20SEAL,21.5X60X20
-
92093H92093-0667 SEAL,GOMSPORSEAL,GOMSPOR
-
9217292172-0236 SCREW,6X16SCREW,6X16
-
92172A92172-0711 SCREW,6X16SCREW,6X16
