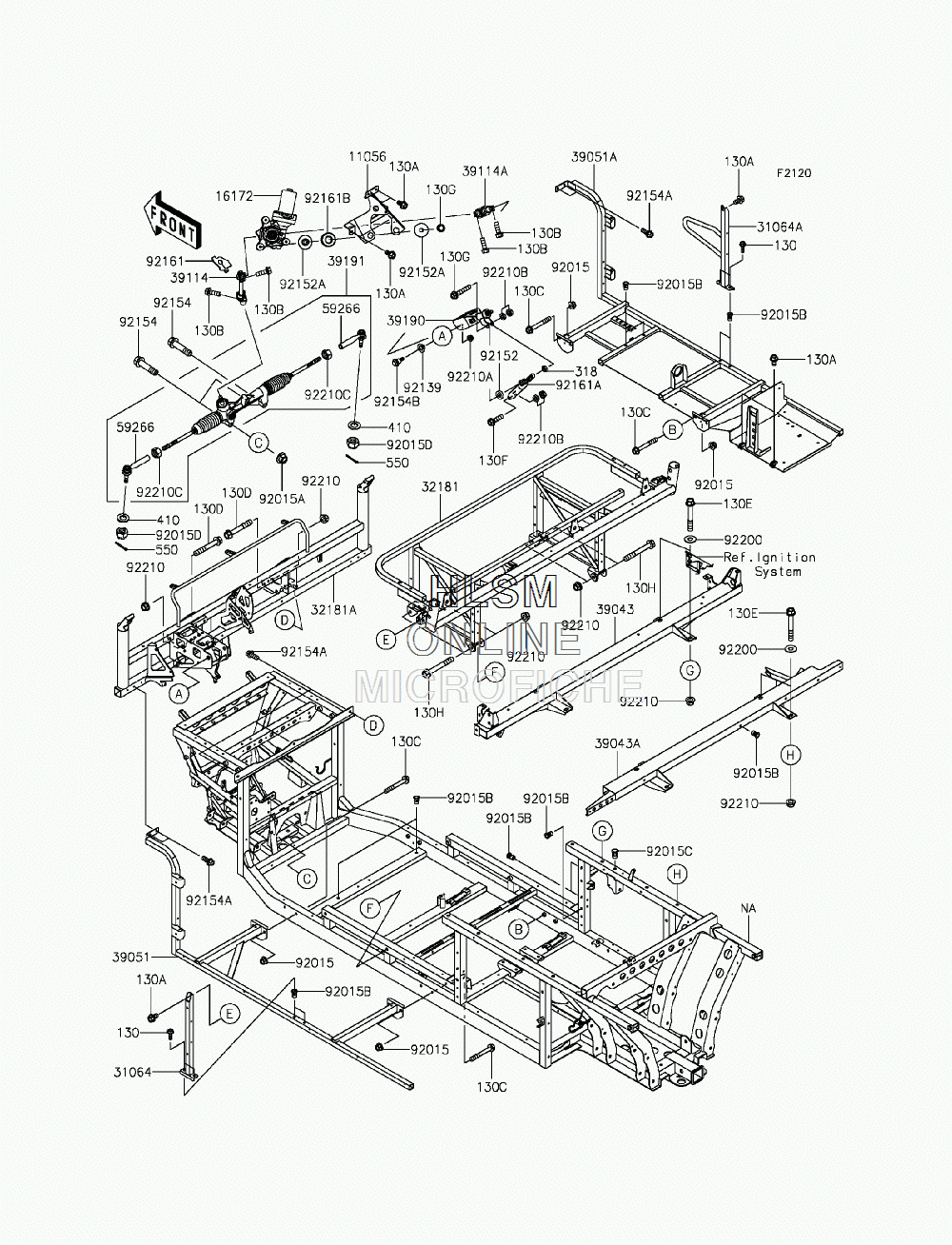

FRAME для Kawasaki MULE PRO-FX EPS CAMO (KAF820HGF) - 2016 года выпуска`
-
№АртикулНазвание
-
130130BA0618 BOLT-FLANGED,6X18BOLT-FLANGED,6X18
-
130A130BA0814 BOLT-FLANGED,8X14BOLT-FLANGED,8X14
-
130B130BA0825 BOLT-FLANGED,8X25BOLT-FLANGED,8X25
-
130C130BA0860 BOLT-FLANGED,8X60BOLT-FLANGED,8X60
-
130D130BA1065 BOLT-FLANGED,10X65BOLT-FLANGED,10X65
-
130E130BA1070 BOLT-FLANGED,10X70BOLT-FLANGED,10X70
-
1105611056-2838 BRACKETBRACKET
-
1617216172-0557 ACTUATOR,EPSACTUATOR,EPS
-
3106431064-0664 PIPE-COMP,SEAT SIDE, LEFT HANDPIPE-COMP,SEAT SIDE, LEFT HAND
-
31064A31064-0665 PIPE-COMP,SEAT SIDE, RIGHT HANDPIPE-COMP,SEAT SIDE, RIGHT HAND
-
3218132181-0010 FRAME-SUB-COMP,SEATFRAME-SUB-COMP,SEAT
-
32181A32181-0011 FRAME-SUB-COMP,DASH PANELFRAME-SUB-COMP,DASH PANEL
-
3904339043-0019 CROSSMEMBER-COMP,C-PILLARCROSSMEMBER-COMP,C-PILLAR
-
39043A39043-0020 CROSSMEMBER-COMP, REAR CROSSCROSSMEMBER-COMP, REAR CROSS
-
3905139051-0003 FRAME-COMP-SIDE, LEFT HANDFRAME-COMP-SIDE, LEFT HAND
-
39051A39051-0004 FRAME-COMP-SIDE, RIGHT HANDFRAME-COMP-SIDE, RIGHT HAND
-
3911439114-0015 SHAFT-COMP-STRGSHAFT-COMP-STRG
-
39114A39114-0019 SHAFT-COMP-STRGSHAFT-COMP-STRG
-
3919039190-0006 SHAFT-ASSY-STEERINGSHAFT-ASSY-STEERING
-
3919139191-0030 GEAR-ASSY-STEERINGGEAR-ASSY-STEERING
-
5926659266-0712 JOINT-BALLJOINT-BALL
-
9201592015-1432 NUT,8MMNUT,8MM
-
92015A92015-1433 NUT,LOCK,FLANGED,12MMNUT,LOCK,FLANGED,12MM
-
92015B92015-1791 NUT,POP,6MM,L=15NUT,POP,6MM,L=15
-
92015C92015-1793 NUT,POP,8MM,L=16.5NUT,POP,8MM,L=16.5
-
92015D92015-1841 NUT,CASTLE,14MMNUT,CASTLE,14MM
-
9213992139-0230 BUSHINGBUSHING
-
9215292152-1848 COLLAR,8.2X18X5COLLAR,8.2X18X5
-
92152A92152-2149 COLLAR,8.5X30X10.6COLLAR,8.5X30X10.6
-
9215492154-1008 BOLT,FLANGED,12X50BOLT,FLANGED,12X50
-
92154A92154-1226 BOLT,FLANGED,8X20BOLT,FLANGED,8X20
-
92154B92154-1320 BOLT,6X21.5BOLT,6X21.5
-
9216192161-1689 DAMPERDAMPER
-
92161A92161-1806 DAMPER,GAS SPRINGDAMPER,GAS SPRING
-
92161B92161-7517 DAMPER,ACTUATORDAMPER,ACTUATOR
-
9220092200-1595 WASHER,10.5X25X1.6WASHER,10.5X25X1.6
-
9221092210-0276 NUT,LOCK,FLANGED,10MMNUT,LOCK,FLANGED,10MM
-
92210A92210-0303 NUT,LOCK,FLANGED,6MMNUT,LOCK,FLANGED,6MM
-
92210B92210-0934 NUT,HARD LOCK,8MMNUT,HARD LOCK,8MM
-
92210C92210-0969 NUT,16MMNUT,16MM
-
130F130CA0830 BOLT-FLANGED,8X30BOLT-FLANGED,8X30
-
130G130CA0845 BOLT-FLANGED,8X45BOLT-FLANGED,8X45
-
130H130CA1075 BOLT-FLANGED,10X75BOLT-FLANGED,10X75
-
318318BA0800 NUT-HEX-SMALL,8MMNUT-HEX-SMALL,8MM
-
410410AA1400 WASHER-PLAIN-SMALL,14MMWASHER-PLAIN-SMALL,14MM
-
550550AA3025 PIN-COTTER,3.0X25PIN-COTTER,3.0X25
