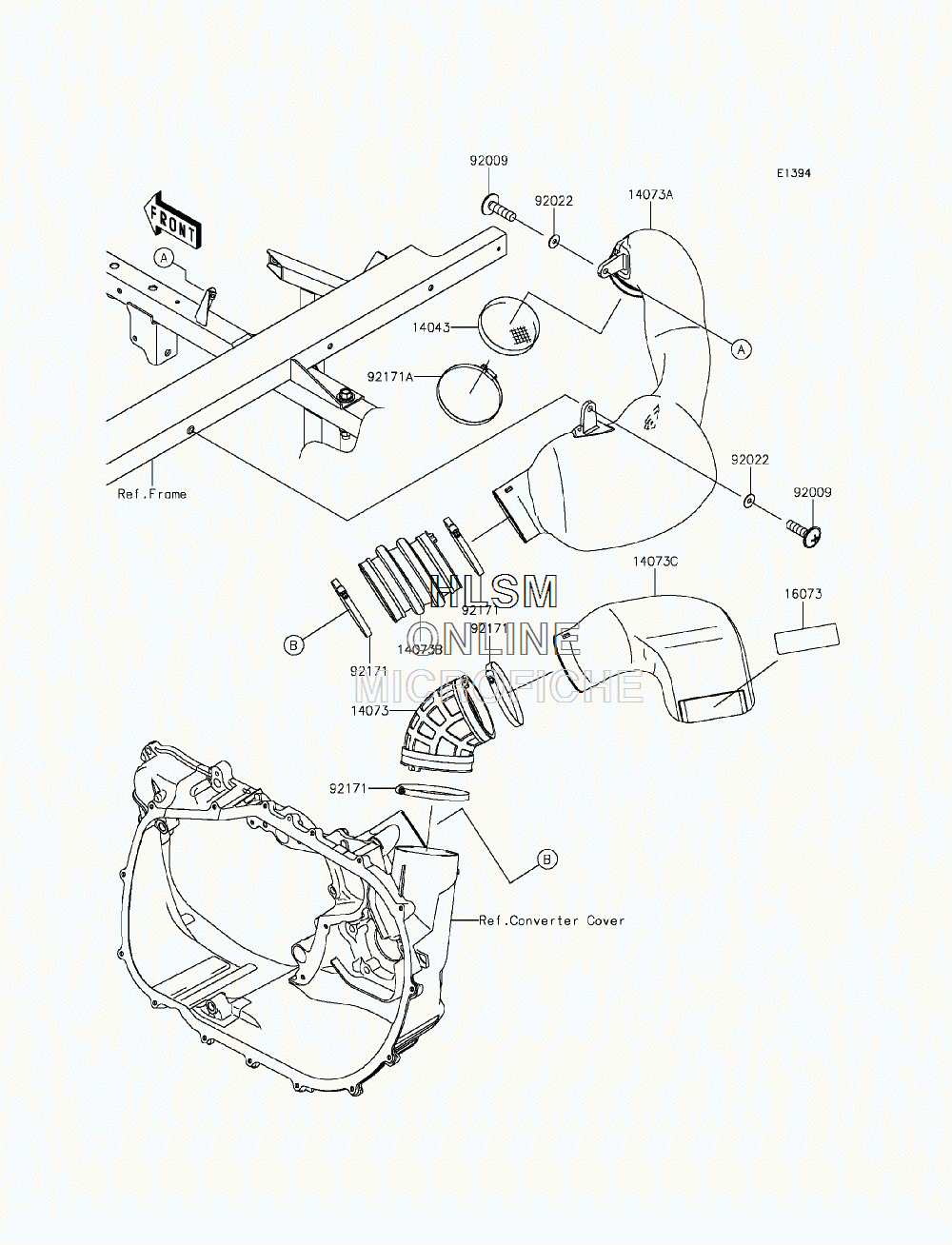

AIR CLEANER W/ BELT CONVERTER для Kawasaki MULE PRO-FX EPS CAMO (KAF820HGF) - 2016 года выпуска`
-
№АртикулНазвание
-
1404314043-0013 FILTERFILTER
-
1407314073-0788 DUCT,EXHAUSTDUCT,EXHAUST
-
14073A14073-0789 DUCT,INTAKEDUCT,INTAKE
-
14073B14073-0790 DUCT,INTAKEDUCT,INTAKE
-
14073C14073-0793 DUCT,EXHAUSTDUCT,EXHAUST
-
1607316073-0826 INSULATORINSULATOR
-
9200992009-1441 SCREW,6X22SCREW,6X22
-
9202292022-165 WASHER,PLAIN,6MMWASHER,PLAIN,6MM
-
9217192171-1383 CLAMPCLAMP
-
92171A92171-3716 CLAMPCLAMP
