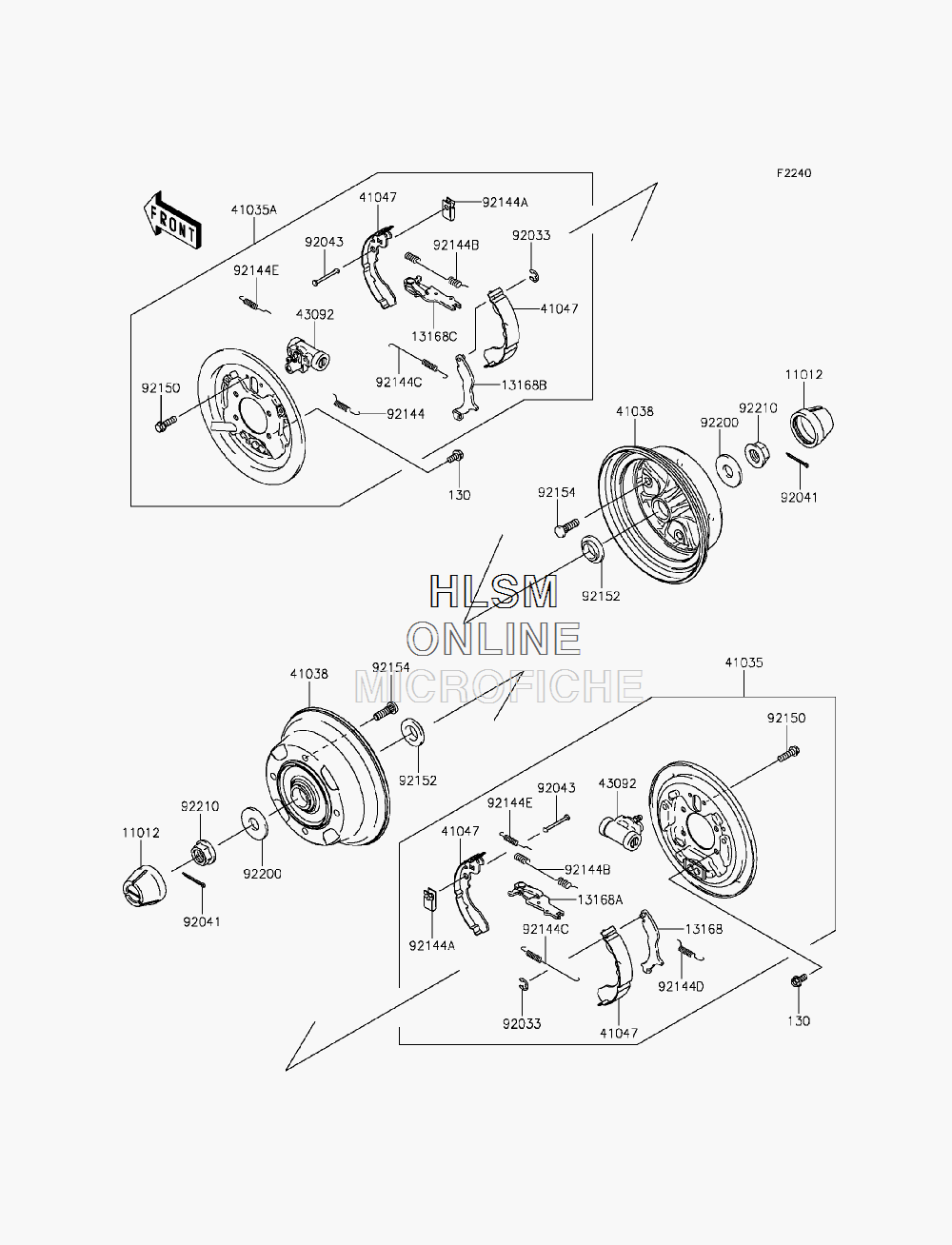

BRAKE - REAR W/ HUBS для Kawasaki MULE 600 (KAF400BGF) - 2016 года выпуска`
-
№АртикулНазвание
-
130130CA0816 BOLT-FLANGED,8X16BOLT-FLANGED,8X16
-
1101211012-1969 CAP,WHEELCAP,WHEEL
-
1316813168-0065 LEVER,BRAKE, LEFT HANDLEVER,BRAKE, LEFT HAND
-
13168A13168-0066 LEVER,BRAKE, LEFT HANDLEVER,BRAKE, LEFT HAND
-
13168B13168-0067 LEVER,BRAKE, RIGHT HANDLEVER,BRAKE, RIGHT HAND
-
13168C13168-0068 LEVER,BRAKE, RIGHT HANDLEVER,BRAKE, RIGHT HAND
-
4103541035-0070 PANEL-ASSY-BRAKE, REAR, LEFT HANDPANEL-ASSY-BRAKE, REAR, LEFT HAND
-
41035A41035-0071 PANEL-ASSY-BRAKE, REAR, RIGHT HANDPANEL-ASSY-BRAKE, REAR, RIGHT HAND
-
4103841038-0018 DRUM, REAR BRAKEDRUM, REAR BRAKE
-
4104741047-1052 SHOE-ASSY-BRAKE, REARSHOE-ASSY-BRAKE, REAR
-
4309243092-0002 CYLINDER,BRAKECYLINDER,BRAKE
-
9203392033-1279 RING-SNAPRING-SNAP
-
9204192041-1053 COTTER,4.0X35COTTER,4.0X35
-
9204392043-1460 PIN,SHOE HOLDPIN,SHOE HOLD
-
9214492144-1608 SPRING, RIGHT HANDSPRING, RIGHT HAND
-
92144A92144-1609 SPRING,SHOE HOLDSPRING,SHOE HOLD
-
92144B92144-1612 SPRING, RETURN,UPPERSPRING, RETURN,UPPER
-
92144C92144-1613 SPRING, RETURN,LOWERSPRING, RETURN,LOWER
-
92144D92144-1614 SPRING, LEFT HANDSPRING, LEFT HAND
-
92144E92144-1615 SPRINGSPRING
-
9215092150-1664 BOLT,FLANGED,6X10BOLT,FLANGED,6X10
-
9215292152-0284 COLLARCOLLAR
-
9215492154-1482 BOLT,10X34.6BOLT,10X34.6
-
9220092200-0130 WASHER,20.3X52X4.5WASHER,20.3X52X4.5
-
9221092210-2093 NUT,FLANGED,20MMNUT,FLANGED,20MM
