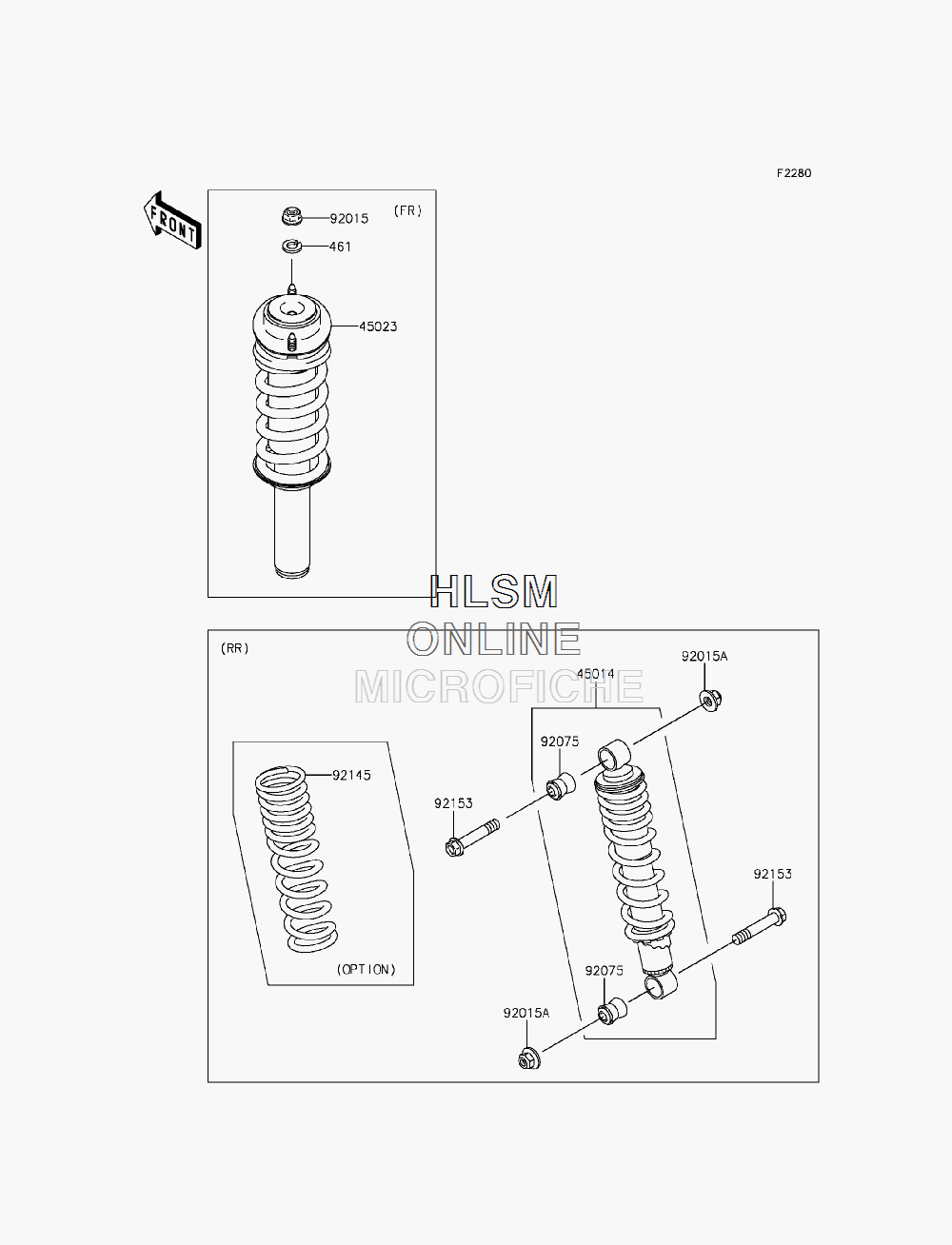

SUSPENSION - SHOCK ABSORBER(S) для Kawasaki MULE 600 (KAF400BGF) - 2016 года выпуска
-
№АртикулНазвание
-
461461DA1000 WASHER-SPRING,10MMWASHER-SPRING,10MM
-
4501445014-0100 SHOCKABSORBERSHOCKABSORBER
-
4502345023-0003 STRUTSTRUT
-
9201592015-1428 NUT,FLANGED,10MMNUT,FLANGED,10MM
-
92015A92015-1597 NUT,LOCK,10MMNUT,LOCK,10MM
-
9207592075-1784 DAMPER,SHOCKABSORBERDAMPER,SHOCKABSORBER
-
9214592145-0400 SPRING,SHOCK,K=24.5/44.1N/MM (OPTION)SPRING,SHOCK,K=24.5/44.1N/MM (OPTION)
-
9215392153-1698 BOLT,FLANGED,10X53.5BOLT,FLANGED,10X53.5
