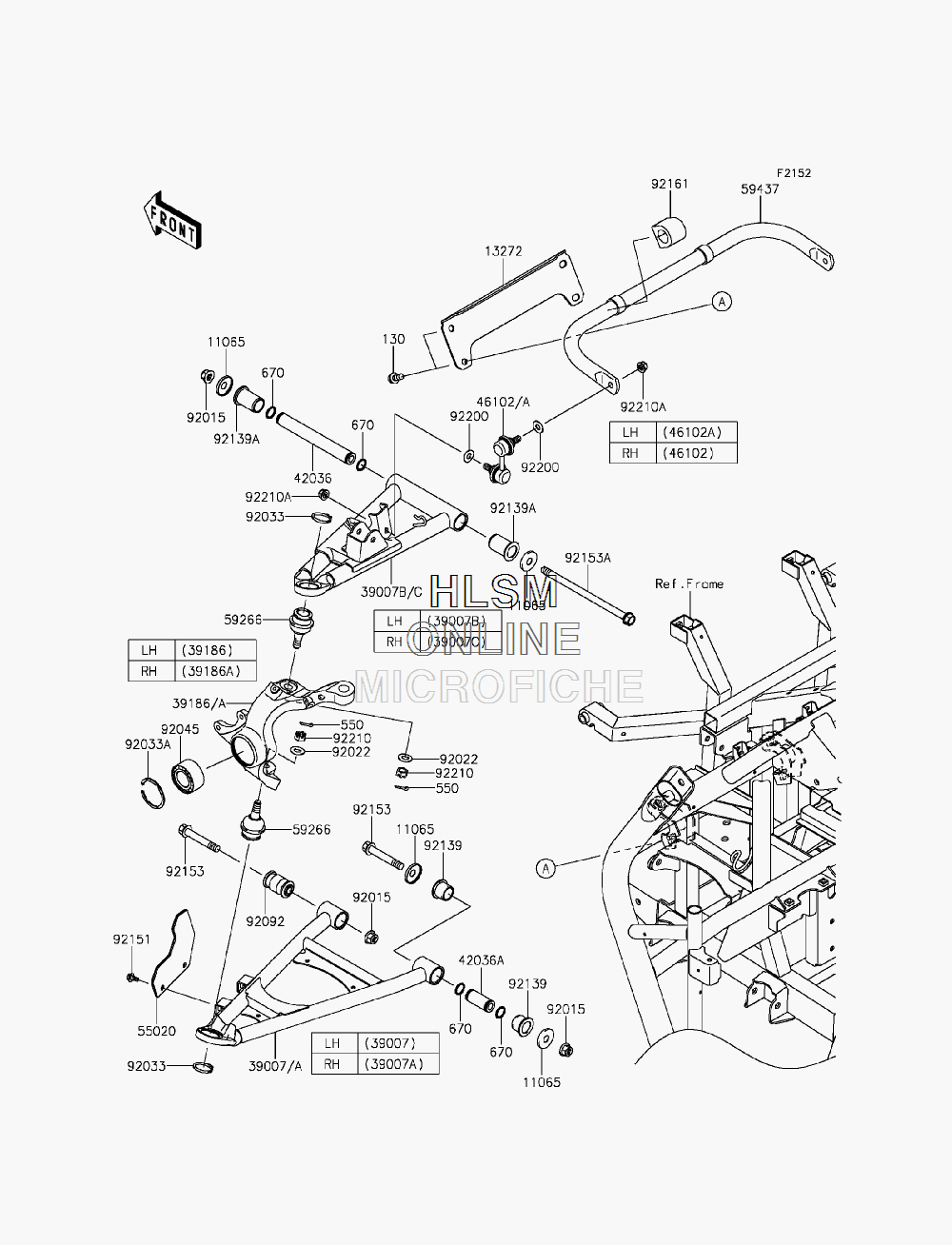

SUSPENSION - FRONT для Kawasaki TERYX4 (KRT800BFF) - 2015 года выпуска`
-
№АртикулНазвание
-
130130CA1016 BOLT-FLANGED,10X16BOLT-FLANGED,10X16
-
550550AA3025 PIN-COTTER,3.0X25PIN-COTTER,3.0X25
-
670670B2018 O RING,18MMO RING,18MM
-
1106511065-0253 CAPCAP
-
1327213272-1650 PLATEPLATE
-
3900739007-0364-10 ARM-SUSP, FRONT,LWR, LEFT HAND,(BLACK) (FOR 839)ARM-SUSP, FRONT,LWR, LEFT HAND,(BLACK) (FOR 839)
-
39007A39007-0365-10 ARM-SUSP, FRONT,LWR, RIGHT HAND,(BLACK) (FOR 839)ARM-SUSP, FRONT,LWR, RIGHT HAND,(BLACK) (FOR 839)
-
39007B39007-0367-10 ARM-SUSP, FRONT,UPP, LEFT HAND,(BLACK) (FOR 839)ARM-SUSP, FRONT,UPP, LEFT HAND,(BLACK) (FOR 839)
-
39007C39007-0368-10 ARM-SUSP, FRONT,UPP, RIGHT HAND,(BLACK) (FOR 839)ARM-SUSP, FRONT,UPP, RIGHT HAND,(BLACK) (FOR 839)
-
3918639186-0311 KNUCKLE, FRONT, LEFT HANDKNUCKLE, FRONT, LEFT HAND
-
39186A39186-0312 KNUCKLE, FRONT, RIGHT HANDKNUCKLE, FRONT, RIGHT HAND
-
4203642036-0061 SLEEVESLEEVE
-
42036A42036-0062 SLEEVESLEEVE
-
4610246102-0100 ROD,STABILIZER, RIGHT HANDROD,STABILIZER, RIGHT HAND
-
46102A46102-0101 ROD,STABILIZER, LEFT HANDROD,STABILIZER, LEFT HAND
-
5502055020-0839 GUARD, FRONT ARMGUARD, FRONT ARM
-
5926659266-0014 JOINT-BALLJOINT-BALL
-
5943759437-0010 STABILIZER, FRONTSTABILIZER, FRONT
-
9201592015-1433 NUT,LOCK,FLANGED,12MMNUT,LOCK,FLANGED,12MM
-
9202292022-1831 WASHERWASHER
-
9203392033-1262 RING-SNAP,C-TYPE,32MMRING-SNAP,C-TYPE,32MM
-
92033A92033-1274 RING-SNAP,55MMRING-SNAP,55MM
-
9204592045-0123 BEARING-BALL,DAC3055W-3CS31BEARING-BALL,DAC3055W-3CS31
-
9209292092-0555 BUSHING-RUBBERBUSHING-RUBBER
-
9213992139-0231 BUSHINGBUSHING
-
92139A92139-0806 BUSHING,22.4X28.2X46BUSHING,22.4X28.2X46
-
9215192151-1703 BOLT,FLANGED,6X13BOLT,FLANGED,6X13
-
9215392153-1733 BOLT,FLANGED,12X76.5BOLT,FLANGED,12X76.5
-
92153A92153-1958 BOLT,FLANGED,12X213BOLT,FLANGED,12X213
-
9216192161-1508 DAMPERDAMPER
-
9220092200-2009 WASHER,10.3X23X1.6WASHER,10.3X23X1.6
-
9221092210-0395 NUT,CASTLE,12MMNUT,CASTLE,12MM
-
92210A92210-1080 NUT,LOCK,FLANGED,10MMNUT,LOCK,FLANGED,10MM
