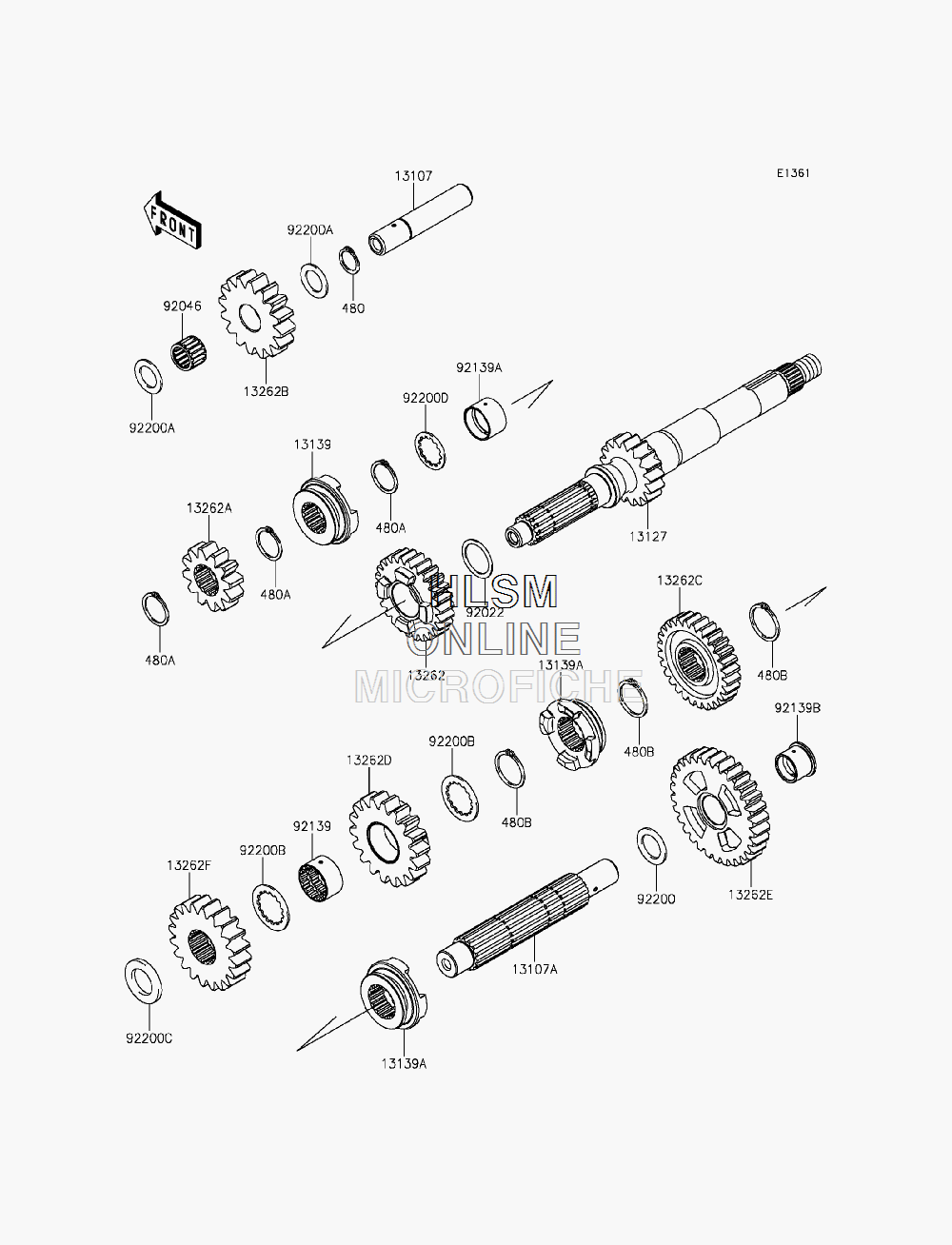

TRANSMISSION для Kawasaki TERYX4 (KRT800BFF) - 2015 года выпуска

  • №
    Артикул
    Название
  • 480
    480J1800 CIRCLIP-TYPE-C,18MM
    CIRCLIP-TYPE-C,18MM
  • 480A
    480J2400 CIRCLIP-TYPE-C,24MM
    CIRCLIP-TYPE-C,24MM
  • 480B
    480J2800 CIRCLIP-TYPE-C,28MM
    CIRCLIP-TYPE-C,28MM
  • 13107
    13107-0715 SHAFT, REVERSE
    SHAFT, REVERSE
  • 13107A
    13107-0716 SHAFT,COUNTER
    SHAFT,COUNTER
  • 13127
    13127-0654 SHAFT-TRANSMISSION INPUT,17T
    SHAFT-TRANSMISSION INPUT,17T
  • 13139
    13139-0624 SHIFTER,INPUT HI
    SHIFTER,INPUT HI
  • 13139A
    13139-0625 SHIFTER,OUTPUT
    SHIFTER,OUTPUT
  • 13262
    13262-0860 GEAR,INPUT HI,26T
    GEAR,INPUT HI,26T
  • 13262A
    13262-0861 GEAR,INPUT REVERSE,12T
    GEAR,INPUT REVERSE,12T
  • 13262B
    13262-0862 GEAR, REVERSE IDLE,16T
    GEAR, REVERSE IDLE,16T
  • 13262C
    13262-0863 GEAR,OUTPUT HI,28T
    GEAR,OUTPUT HI,28T
  • 13262D
    13262-0865 GEAR,OUTPUT REVERSE,18T
    GEAR,OUTPUT REVERSE,18T
  • 13262E
    13262-0867 GEAR,OUTPUT LOW,31T
    GEAR,OUTPUT LOW,31T
  • 13262F
    13262-1082 GEAR,OUTPUT,20T
    GEAR,OUTPUT,20T
  • 92022
    92022-1800 WASHER,25.3X32X1
    WASHER,25.3X32X1
  • 92046
    92046-0605 BEARING-NEEDLE,182216E03 C3
    BEARING-NEEDLE,182216E03 C3
  • 92139
    92139-0107 BUSHING,25X28.3X16.7
    BUSHING,25X28.3X16.7
  • 92139A
    92139-0280 BUSHING,25X28X17.8
    BUSHING,25X28X17.8
  • 92139B
    92139-0707 BUSHING,20X24X18.7
    BUSHING,20X24X18.7
  • 92200
    92200-0221 WASHER,20.2X30X1.8
    WASHER,20.2X30X1.8
  • 92200A
    92200-0716 WASHER,18.2X28X1.5
    WASHER,18.2X28X1.5
  • 92200B
    92200-0717 WASHER,28.5X38X1.5
    WASHER,28.5X38X1.5
  • 92200C
    92200-0718 WASHER,22.2X36X3.6
    WASHER,22.2X36X3.6
  • 92200D
    92200-1239 WASHER,25.2X31.0X1.5
    WASHER,25.2X31.0X1.5
