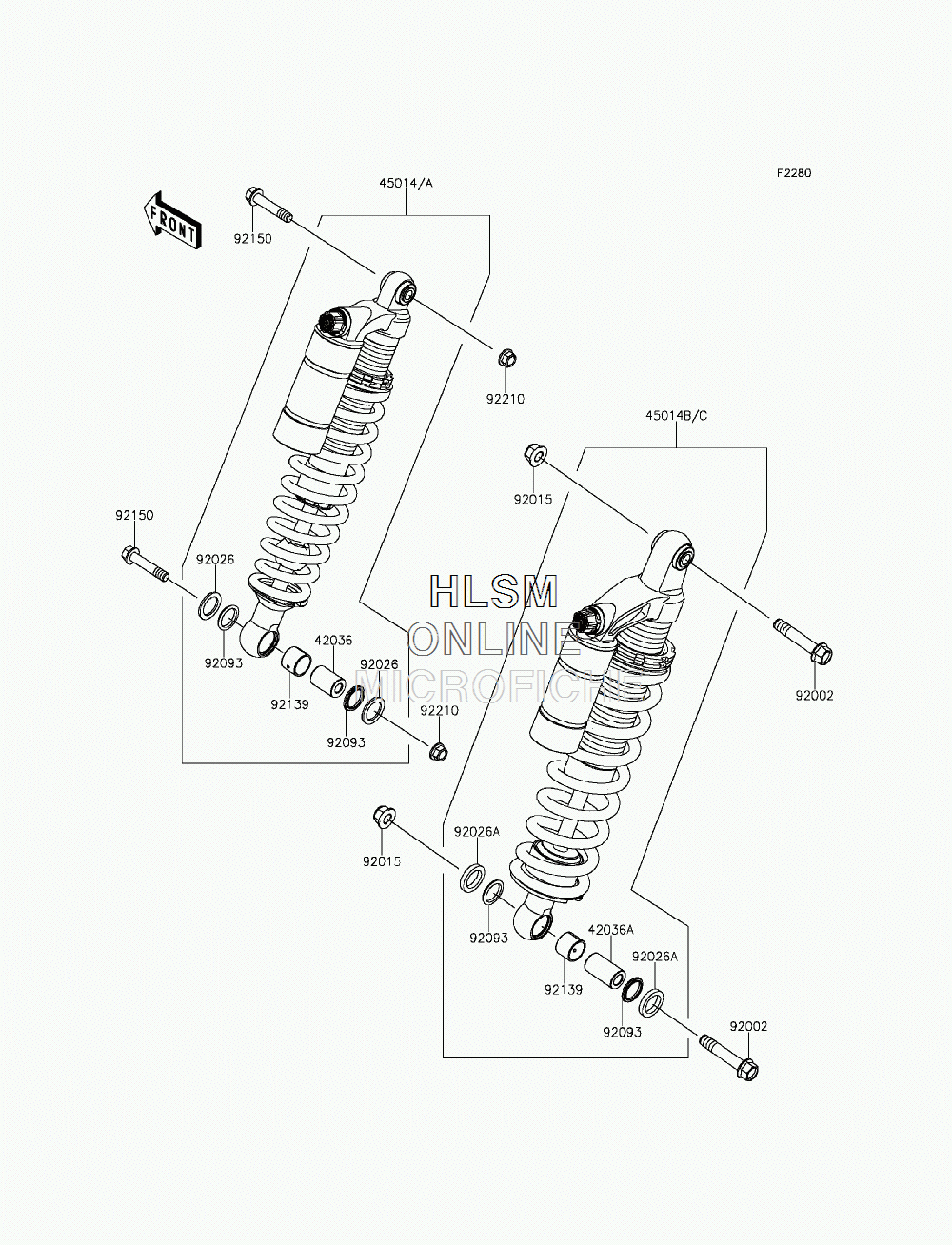

SUSPENSION - SHOCK ABSORBER(S) для Kawasaki TERYX LE (KRF800CFF) - 2015 года выпуска`
-
№АртикулНазвание
-
4203642036-0742 SLEEVESLEEVE
-
42036A42036-0743 SLEEVESLEEVE
-
4501445014-0412-42K SHOCKABSORBER, FRONT,(C.L.GREEN) (FOR 31Y;367)SHOCKABSORBER, FRONT,(C.L.GREEN) (FOR 31Y;367)
-
45014A45014-0412-42M SHOCKABSORBER, FRONT,(C.B.ORANGE) (FOR 42L)SHOCKABSORBER, FRONT,(C.B.ORANGE) (FOR 42L)
-
45014B45014-0413-42K SHOCKABSORBER, REAR,(C.L.GREEN) (FOR 31Y;367)SHOCKABSORBER, REAR,(C.L.GREEN) (FOR 31Y;367)
-
45014C45014-0413-42M SHOCKABSORBER, REAR,(C.B.ORANGE) (FOR 42L)SHOCKABSORBER, REAR,(C.B.ORANGE) (FOR 42L)
-
9200292002-1757 BOLT,ROD,12MMBOLT,ROD,12MM
-
9201592015-1433 NUT,LOCK,FLANGED,12MMNUT,LOCK,FLANGED,12MM
-
9202692026-0777 SPACERSPACER
-
92026A92026-0778 SPACERSPACER
-
9209392093-0609 SEALSEAL
-
9213992139-0809 BUSHINGBUSHING
-
9215092150-1125 BOLT,FLANGED,10X50BOLT,FLANGED,10X50
-
9221092210-1080 NUT,LOCK,FLANGED,10MMNUT,LOCK,FLANGED,10MM
