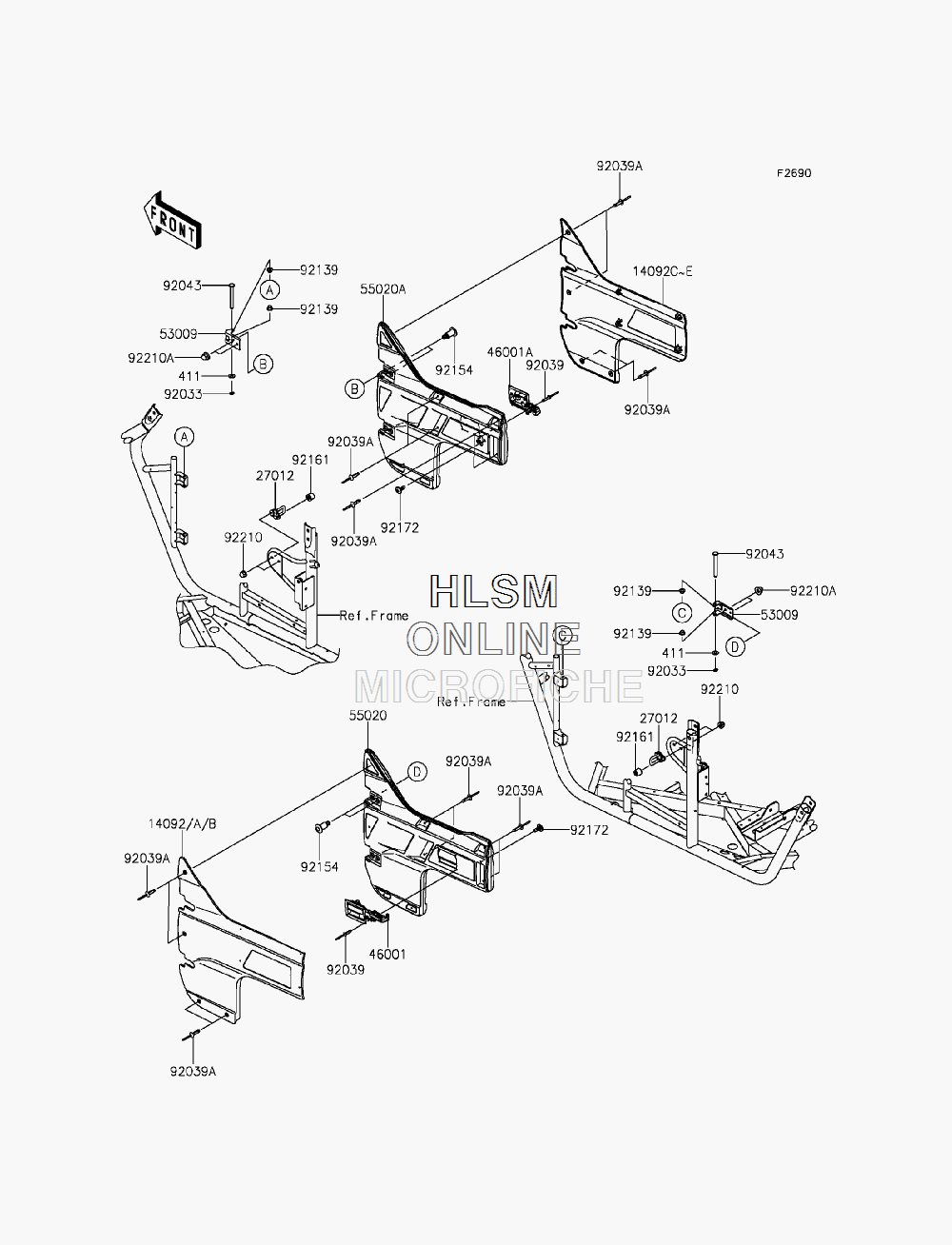

DOOR для Kawasaki TERYX LE (KRF800CFF) - 2015 года выпуска

№

Артикул

Название
411

411AB0600 WASHER-PLAIN,6.5X13X1

WASHER-PLAIN,6.5X13X1
14092

14092-0806-31Y COVER,SIDE GUARD, FRONT, LEFT HAND,(M.S.WHITE) (FOR 31Y)

COVER,SIDE GUARD, FRONT, LEFT HAND,(M.S.WHITE) (FOR 31Y)
14092A

14092-0806-367 COVER,SIDE GUARD, FRONT, LEFT HAND,(C.L.GREEN) (FOR 367)

COVER,SIDE GUARD, FRONT, LEFT HAND,(C.L.GREEN) (FOR 367)
14092B

14092-0806-42L COVER,SIDE GUARD, FRONT, LEFT HAND,(C.B.ORANGE) (FOR 42L)

COVER,SIDE GUARD, FRONT, LEFT HAND,(C.B.ORANGE) (FOR 42L)
14092C

14092-0807-31Y COVER,SIDE GUARD, FRONT, RIGHT HAND,(M.S.WHITE) (FOR 31Y)

COVER,SIDE GUARD, FRONT, RIGHT HAND,(M.S.WHITE) (FOR 31Y)
14092D

14092-0807-367 COVER,SIDE GUARD, FRONT, RIGHT HAND,(C.L.GREEN) (FOR 367)

COVER,SIDE GUARD, FRONT, RIGHT HAND,(C.L.GREEN) (FOR 367)
14092E

14092-0807-42L COVER,SIDE GUARD, FRONT, RIGHT HAND,(C.B.ORANGE) (FOR 42L)

COVER,SIDE GUARD, FRONT, RIGHT HAND,(C.B.ORANGE) (FOR 42L)
27012

27012-0705 HOOK

HOOK
46001

46001-0556 HANDLE-ASSY,SIDE GUARD, LEFT HAND

HANDLE-ASSY,SIDE GUARD, LEFT HAND
46001A

46001-0557 HANDLE-ASSY,SIDE GUARD, RIGHT HAND

HANDLE-ASSY,SIDE GUARD, RIGHT HAND
53009

53009-0303 HINGE

HINGE
55020

55020-0737 GUARD,SIDE, FRONT, LEFT HAND

GUARD,SIDE, FRONT, LEFT HAND
55020A

55020-0738 GUARD,SIDE, FRONT, RIGHT HAND

GUARD,SIDE, FRONT, RIGHT HAND
92033

92033-0719 RING-SNAP

RING-SNAP
92039

92039-0703 RIVET,4.0X17.5

RIVET,4.0X17.5
92039A

92039-0704 RIVET,4.9X19.8

RIVET,4.9X19.8
92043

92043-0743 PIN,6X56

PIN,6X56
92139

92139-0709 BUSHING,6X8X6

BUSHING,6X8X6
92154

92154-0712 BOLT,SOCKET,8X30

BOLT,SOCKET,8X30
92161

92161-1456 DAMPER,9X28X24.3

DAMPER,9X28X24.3
92172

92172-0711 SCREW,6X16

SCREW,6X16
92210

92210-0003 NUT,CAP,6MM

NUT,CAP,6MM
92210A

92210-0488 NUT,CAP,8MM

NUT,CAP,8MM
