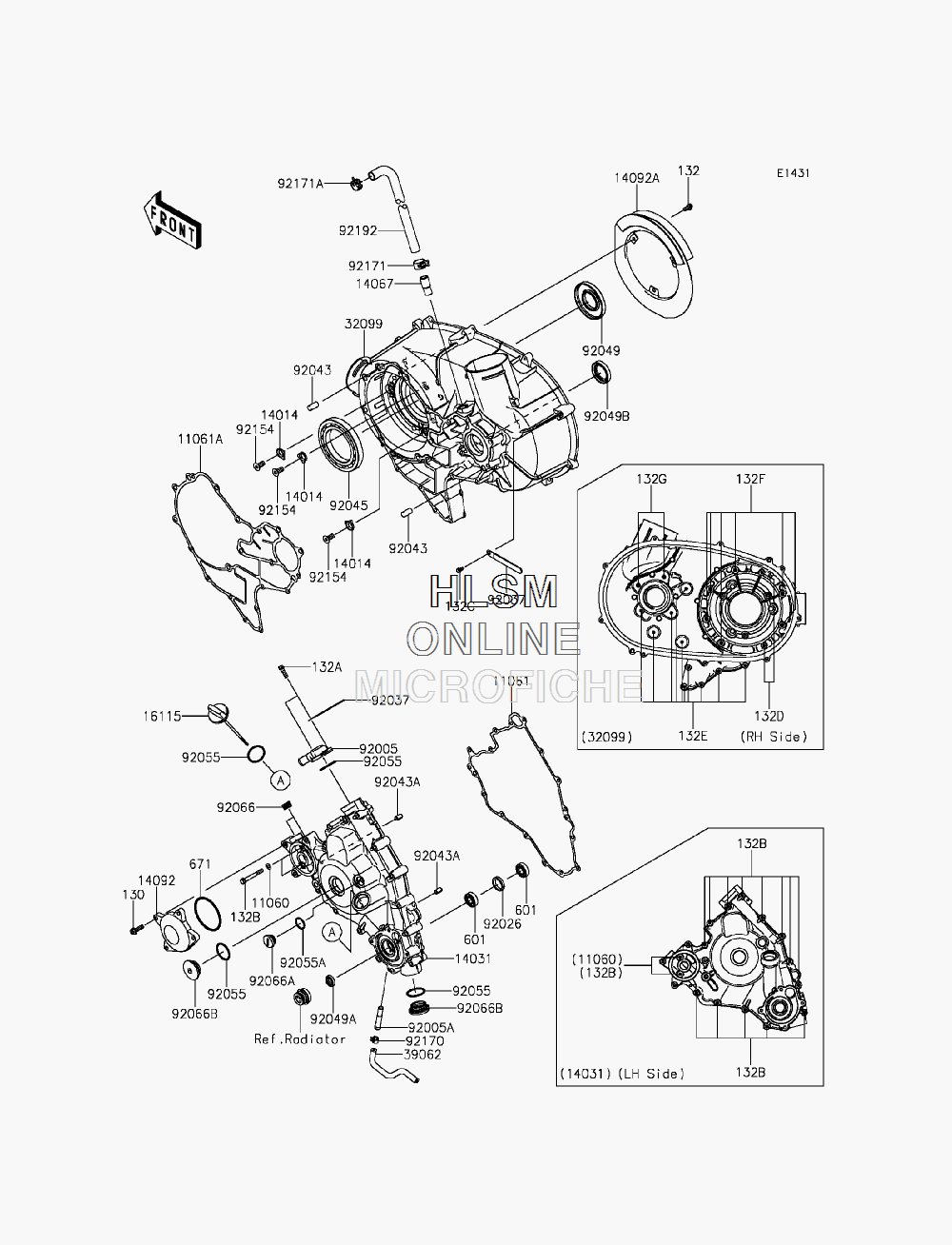

ENGINE COVER(S) для Kawasaki TERYX LE (KRF800CFF) - 2015 года выпуска`
-
№АртикулНазвание
-
130130CA0622 BOLT-FLANGED,6X22BOLT-FLANGED,6X22
-
132132BA0612 BOLT-FLANGED-SMALL,6X12BOLT-FLANGED-SMALL,6X12
-
132A132BA0620 BOLT-FLANGED-SMALL,6X20BOLT-FLANGED-SMALL,6X20
-
132B132BA0650 BOLT-FLANGED-SMALL,6X50BOLT-FLANGED-SMALL,6X50
-
132C132BD0612 BOLT-FLANGED-SMALL,6X12BOLT-FLANGED-SMALL,6X12
-
132D132BD0630 BOLT-FLANGED-SMALL,6X30BOLT-FLANGED-SMALL,6X30
-
132E132BD0645 BOLT-FLANGED-SMALL,6X45BOLT-FLANGED-SMALL,6X45
-
132F132BD0835 BOLT-FLANGED-SMALL,8X35BOLT-FLANGED-SMALL,8X35
-
132G132BD0850 BOLT-FLANGED-SMALL,8X50BOLT-FLANGED-SMALL,8X50
-
1106011060-1994 GASKET,6.2X12X0.3GASKET,6.2X12X0.3
-
1106111061-0728 GASKET,GENERATOR COVERGASKET,GENERATOR COVER
-
11061A11061-0729 GASKET,CVT CASEGASKET,CVT CASE
-
1401414014-0556 PLATE-POSITIONPLATE-POSITION
-
1403114031-0589 COVER-GENERATORCOVER-GENERATOR
-
1406714067-006 FITTING,BREATHERFITTING,BREATHER
-
1409214092-0877 COVER,OIL COOLERCOVER,OIL COOLER
-
14092A14092-1051 COVERCOVER
-
1611516115-0705 CAP-OIL FILLERCAP-OIL FILLER
-
3209932099-0765 CASE,CVTCASE,CVT
-
3906239062-0598 HOSE-COOLING,DRAINHOSE-COOLING,DRAIN
-
9200592005-0712 FITTINGFITTING
-
92005A92005-1264 FITTINGFITTING
-
9202692026-0711 SPACER,22X28X5SPACER,22X28X5
-
9203792037-1993 CLAMPCLAMP
-
9204392043-0142 PIN,10X20PIN,10X20
-
92043A92043-1263 PIN,6.2X8X14PIN,6.2X8X14
-
9204592045-0709 BEARING-BALL,16014CS45BEARING-BALL,16014CS45
-
9204992049-0713 SEAL-OIL,35X77X9SEAL-OIL,35X77X9
-
92049A92049-1228 SEAL-OIL,SC 12X22X5SEAL-OIL,SC 12X22X5
-
92049B92049-1575 SEAL-OIL,HTC 30X45X8SEAL-OIL,HTC 30X45X8
-
9205592055-0724 RING-O,31.2X2.4RING-O,31.2X2.4
-
92055A92055-1146 RING-O,20X2RING-O,20X2
-
9206692066-0003 PLUG,PT3/8X10PLUG,PT3/8X10
-
92066A92066-0011 PLUG,COVERPLUG,COVER
-
92066B92066-0712 PLUGPLUG
-
9215492154-0978 BOLT,FLAT,8X13.6BOLT,FLAT,8X13.6
-
9217092170-1493 CLAMPCLAMP
-
9217192171-0329 CLAMPCLAMP
-
92171A92171-1277 CLAMPCLAMP
-
9219292192-0945 TUBE,BREATHERTUBE,BREATHER
-
601601A6001 BEARING-BALLBEARING-BALL
-
671671B2565 O RING,65MMO RING,65MM
